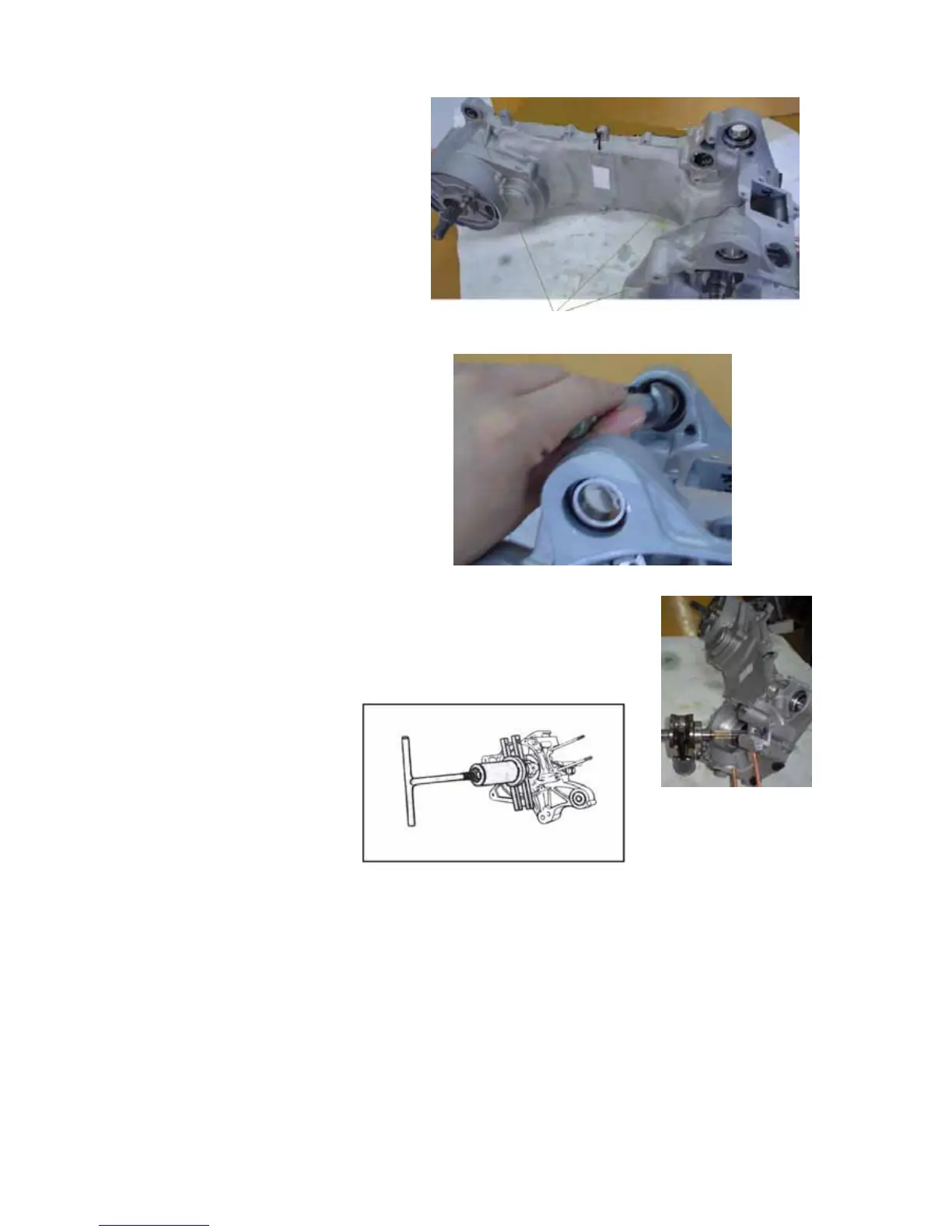

shock absorber bushing

positon

install bearing in the cover. Don’t install the

bearings on the crankshaft.

Install shock absorber bushing

Install crankshaft (without bearings)
