Explorer GT 50 - Front Brake System; Rake Pad Replacement

85
FRONT BRAKE SYSTEM
RAKE PAD REPLACEMENT
Remove the calliper by removing the mounting bolts ཰ .
NOTE:
Do not operate the front brake lever while dismounting the calliper.

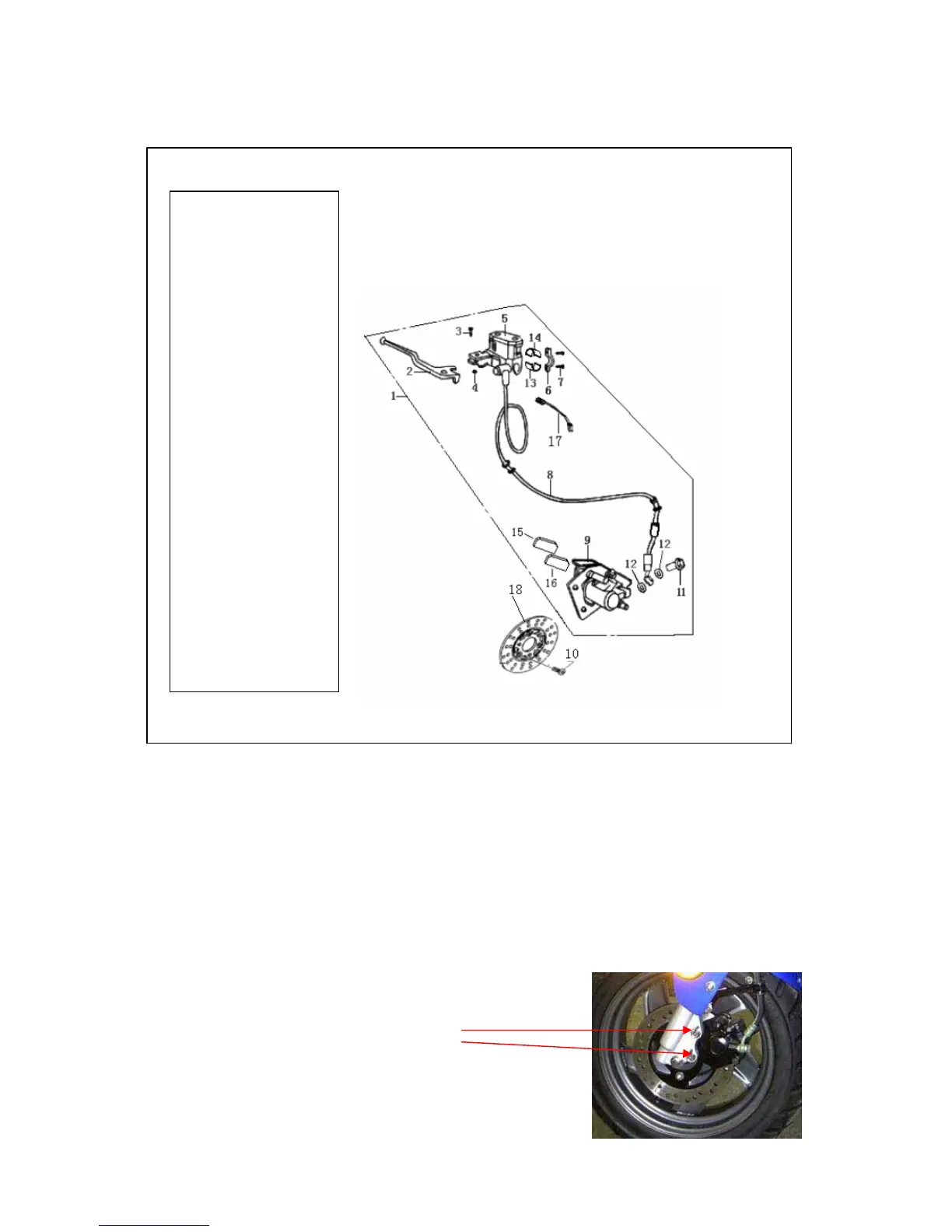

1. disc brake assy.
2. disc brake handle
lever
3. tightening bolt
4. nut M6
5. master cylinder
6. tightening seat
7. bolt M6X23
8. brake hose assy.
9. brake caliper
10. connecting
board tightening
bolt
11. hose mounting
bolt
12. seal gasket
13. front gasket
14. rear gasket
15. brake pad 1
16. brake pad 2
17. master cylinder
rubber bushing
18. front brake
switch
཰
