90

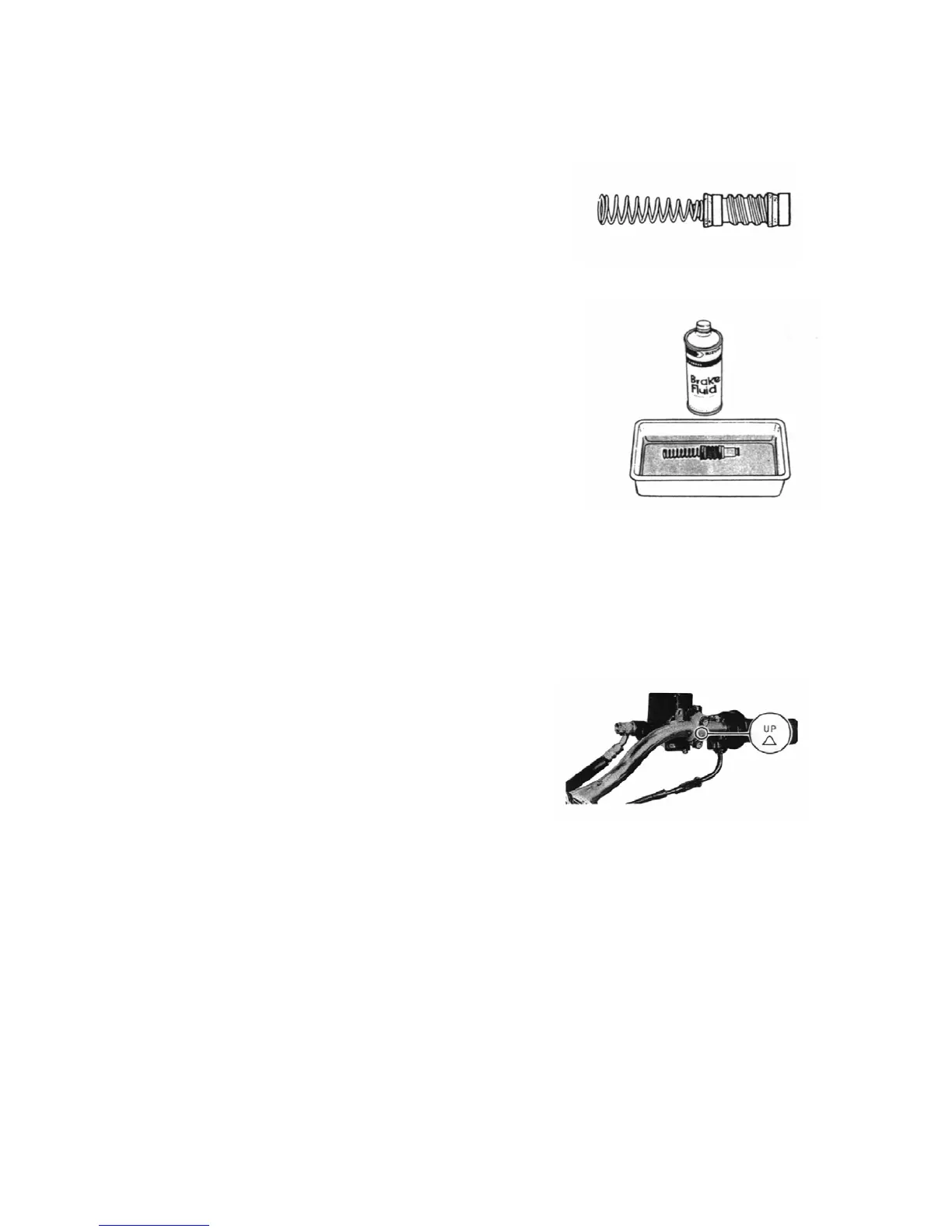

Inspect the piston surface for scratches or other damage.
Inspect the primary cup and dust boot for wear or damage.
MASTER CYLINDER REASSEMBLY AND ERMOUNTING
Reassemble and remount the master cylinder in the reverse
order of removal and disassembly,and also carry out the
following steps.
CAUTION:
Wash the master cylinder components with fresh brake fluis
before reassembly. Never use cleaning solvent or gasoline to
wash them.
Apply brake fluid to the cylinder bore and all the internals to be inserted into the bore.
Reassemble and remount the master cylinder, When remounting the master cylinder on the
handlebar,first tighten the clamp bolt for upside.
CAUTION:
Bleed air after remounting the master cylinder.
