56

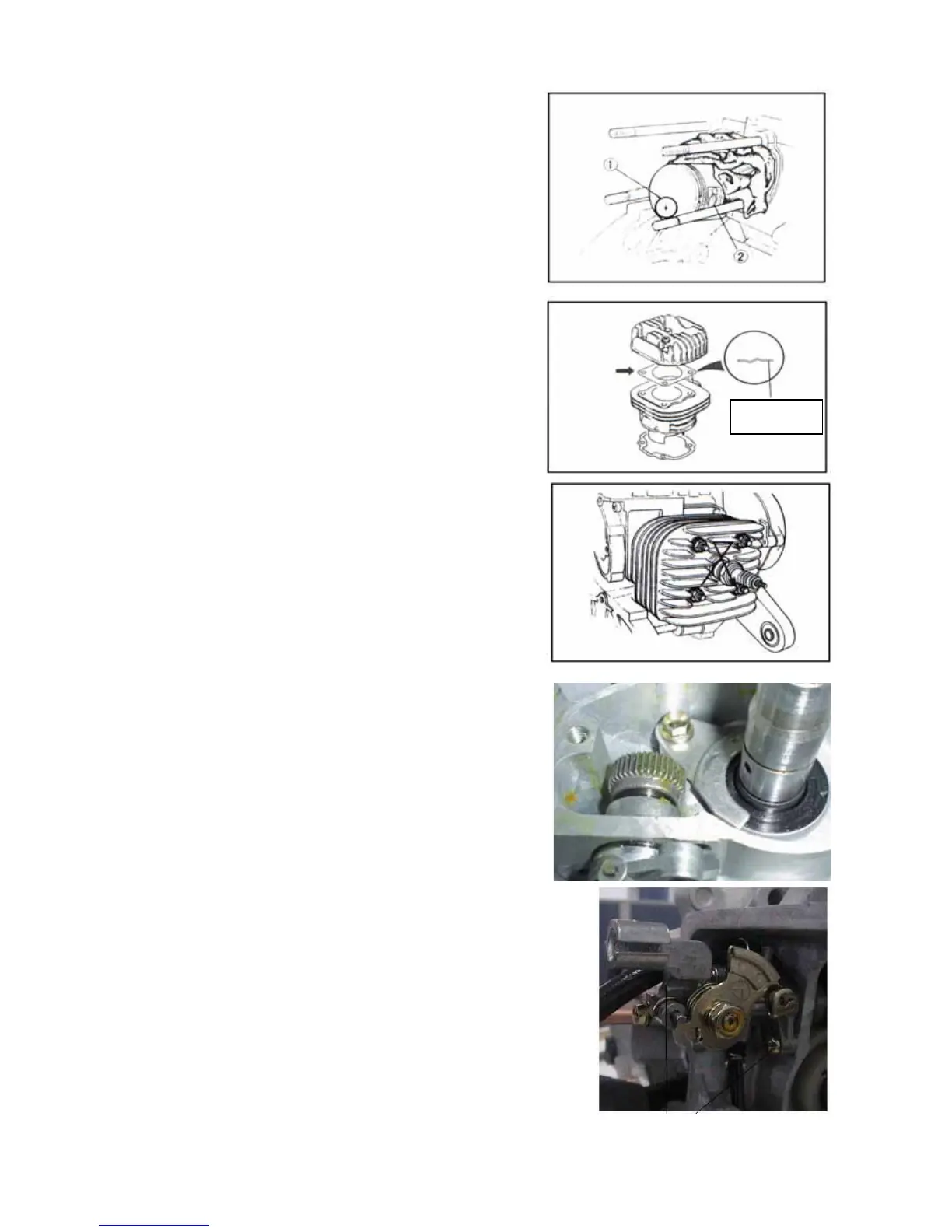

z apply oil for the piston and install the piston to the
connecting rod.
NOTE
᧶
The arrow mark
on the piston head should point the
exhaust side.
z The circlip should be mounted in such a position that
the mating ends of the circlip do not coincide with
the grovve portion of the piston.
z apply oil on the position and cyoinder wall surfaces
and install the cylinder over the piston carefully.
z tighten the cylinder head nut to the specification.
tightening torque᧶18-28Nm
z install right crankcase oil seal press board
z install worm, and lubricater it with GENERIC
special lubrication.
Oil pump
z install oil pump into crankcase
torque᧶3-5Nm
(0.3-0.5kg-m, 2.3-3.7Ib-ft)
OUTSIDE
