55

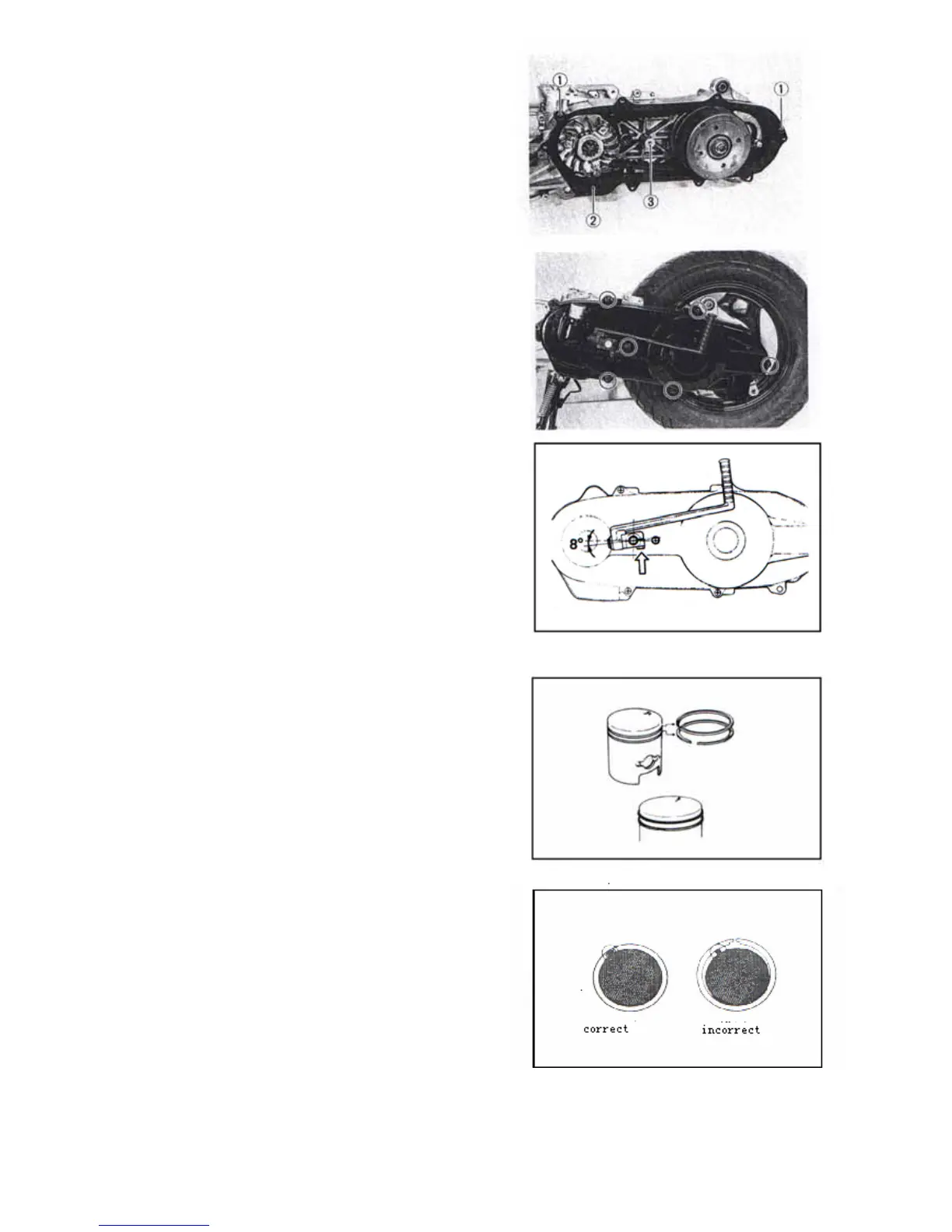

z Install the dowel pins
z install the new gaskets(ཱ and ི)
z apply GENERIC bond no. 1215 to the
clutch cover as shown in the illustration.
GENERIC bond no. 1215
NOTE: Install the kick starter lever as shown in the
illustration.
Tightening toque᧶8-12Nm
(0.8-1.2kg-m, 6.0-8.5Ib-ft)
PISTON
z install the piston rings on the piston.
The first and the second ring: keystone ring.
NOTE:
Position the ring so that the marking is on upside.
z it is extremely important that, when the piston is
fed into the cylinder, each ring in place should be
so positioned as to hug the locating pin as shown
in illustration.
