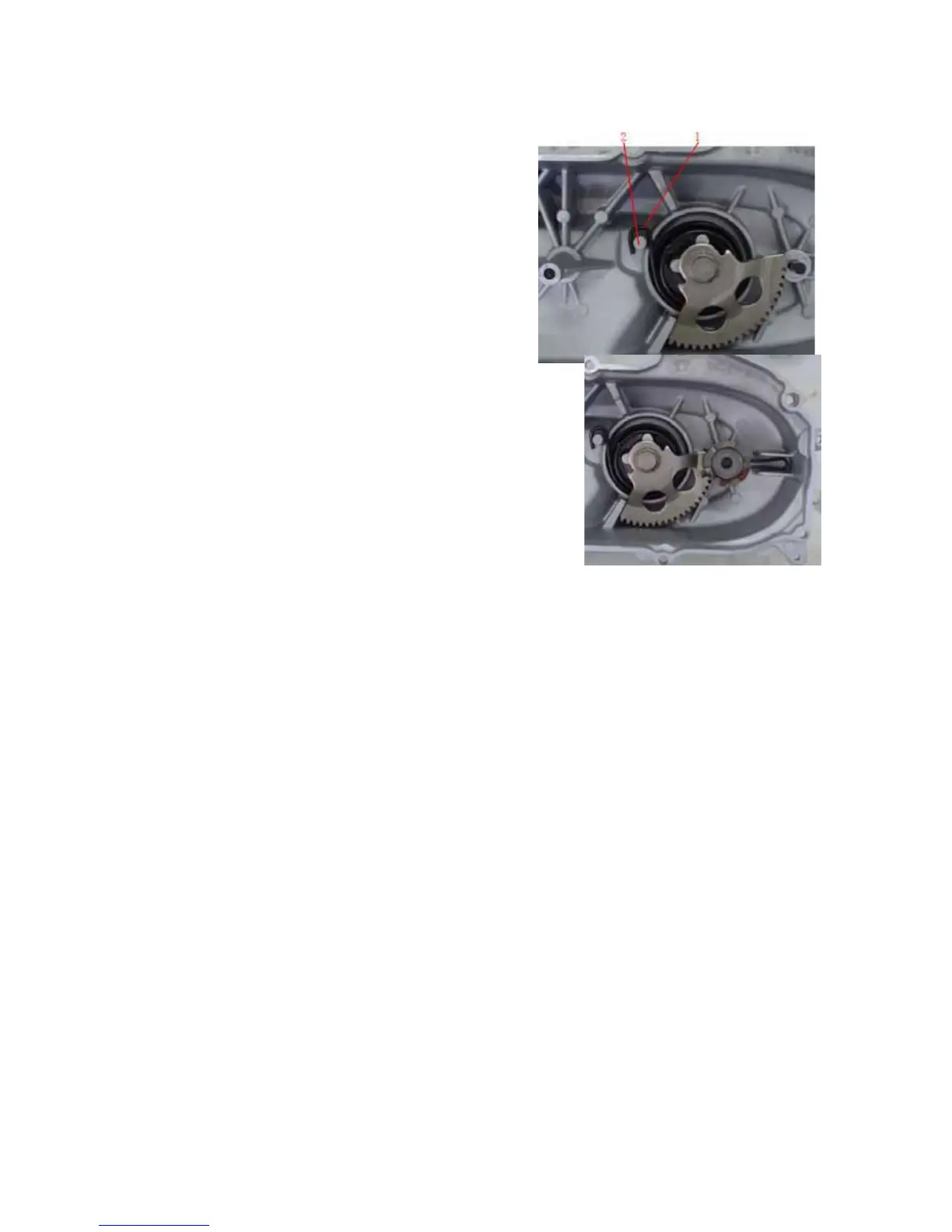

Starter assy.

z Inject lubrication into start bearing and

lubrication in the end of starter shaft

GENERIC SPECIAL LUBRICATION

z Tighten starter shaft gasket

Install starter ratchet wheel and circlip
