57

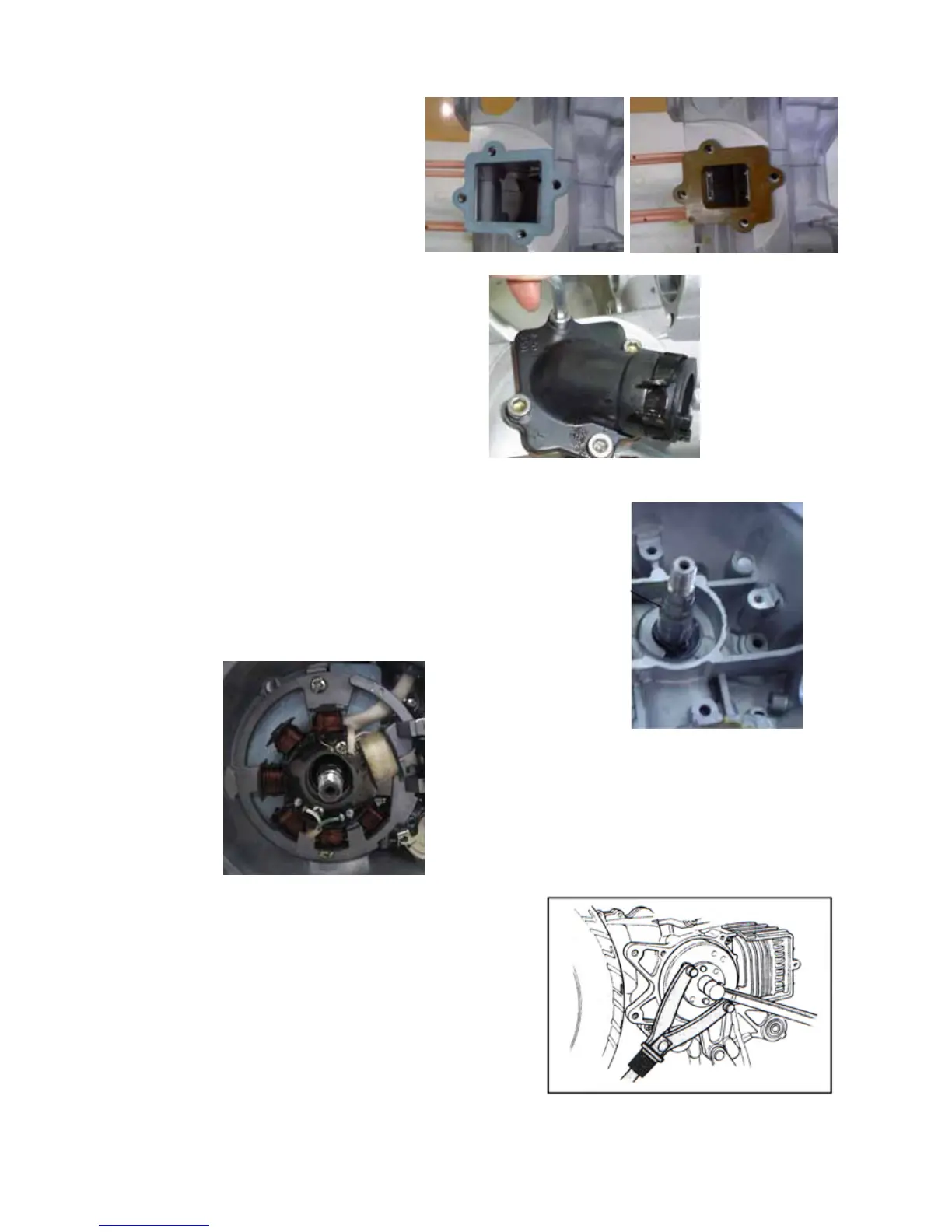

Reed valve
z install a new reed valve paper
gasket.
z Install reed valve
z Install oil hose
Intake pipe
z install intake pipe
Magneto
z clear crankshaft and magneto rotor
z install half circle key
z install paper gasket and stator coil, and fix them
z tighten to specified torque with special tool
specified torque᧶35-45Nm
(3.5-4.5kg.m,25.5-31.0Ib-ft)
To Next Page
