z Apply grease to all the sliding and rolling surfaces for six
roller weights. For each weight, approximately 1.5g of
grease should be used.
GENERIC super grease

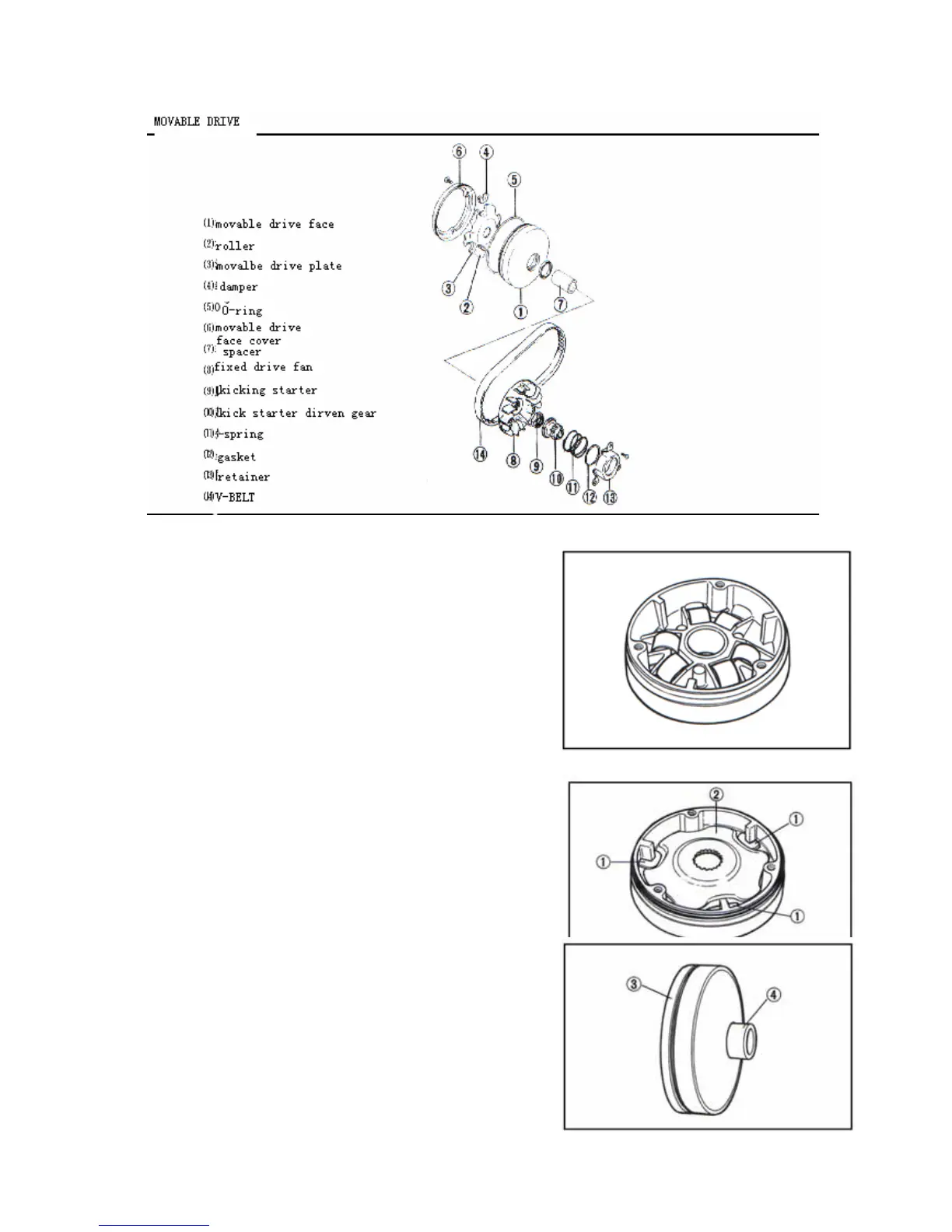

z Mount the three dampers on the movable drive plate
ཱ and install it on the movable drive face.
z Position the O-RING on the movable drive face.
z Install the movable drive face coverི.
NOTE:
1. Make sure that the movable drive plate is fully
positioned inside, or the weight roller may come off.
