53

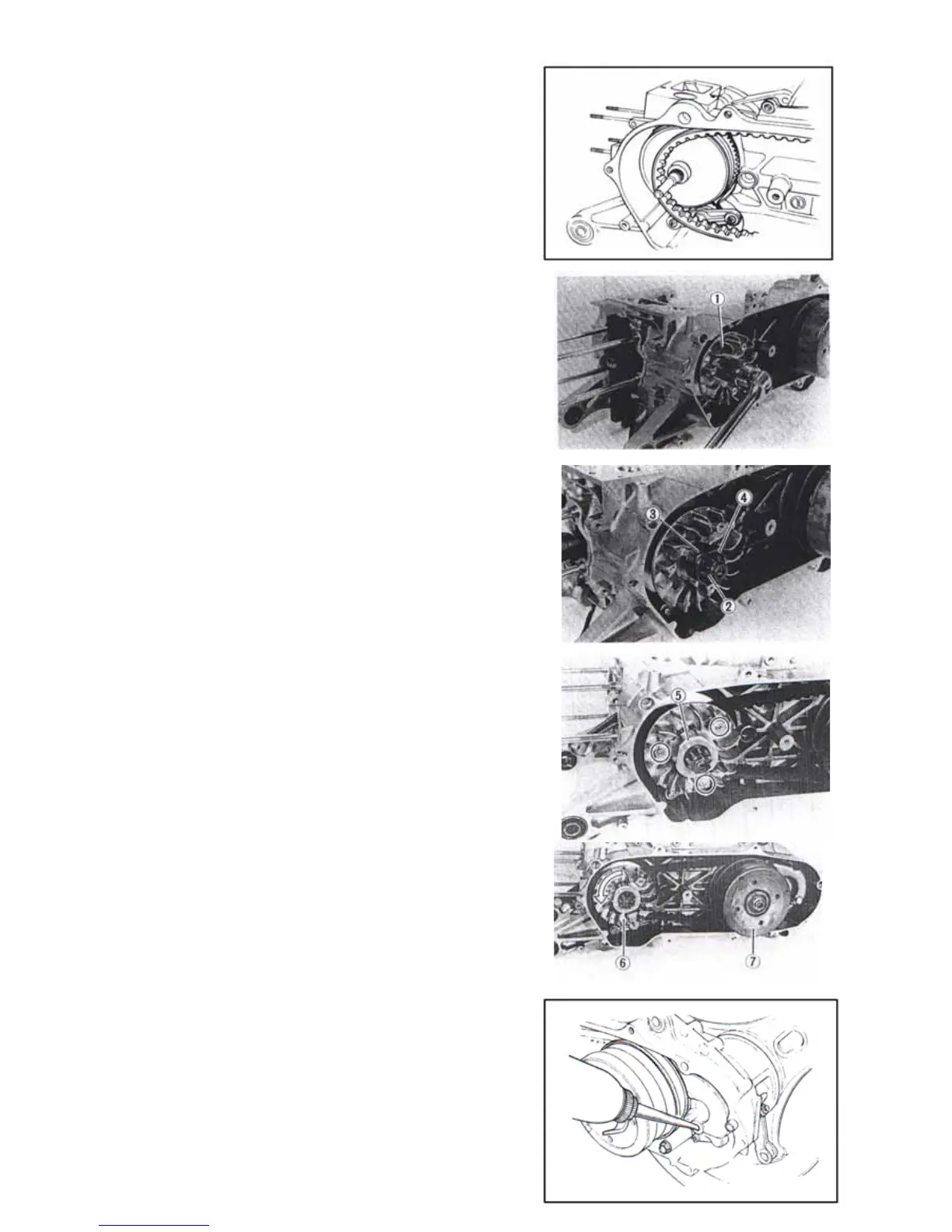

z Insert the spacerཱི
z Position the movable drive face subassembly on the
crankshaft as shown in illustration.
NOTE
᧶
Thoroughly clean the belt contact to be free from oil.
z Install the fixed drive fan
z tighten the nut to the specified torque with special
tool.
Connecting rod fixer
Tightening torque᧶40-60Nm
(4.0-6.0kg-m, 29.0-43.5Ib-ft)
z fill grease in the groove provided inside sliding surface
of the kick driven gear and install ཱon the end of the
crankshaft. Wipe off excess grease.
QIANJIANG super grease
Install washerིDQGVSULQJཱི
NOTE:
When Installing washerི᧨face the resin surface of
washer to outside.
z install the retainerུ
z continue turning the fixed drive faceཱུ by hand until
the belt is seated in and both the drive and driven
facesྲྀ will move together smoothly with slip.
fill the final gear box with engine oil up to the level
hole.
Oil capacity᧶ 90ml
z tighten the oil level bolt to the specified torque.
Tightening torque᧶9-15Nm
