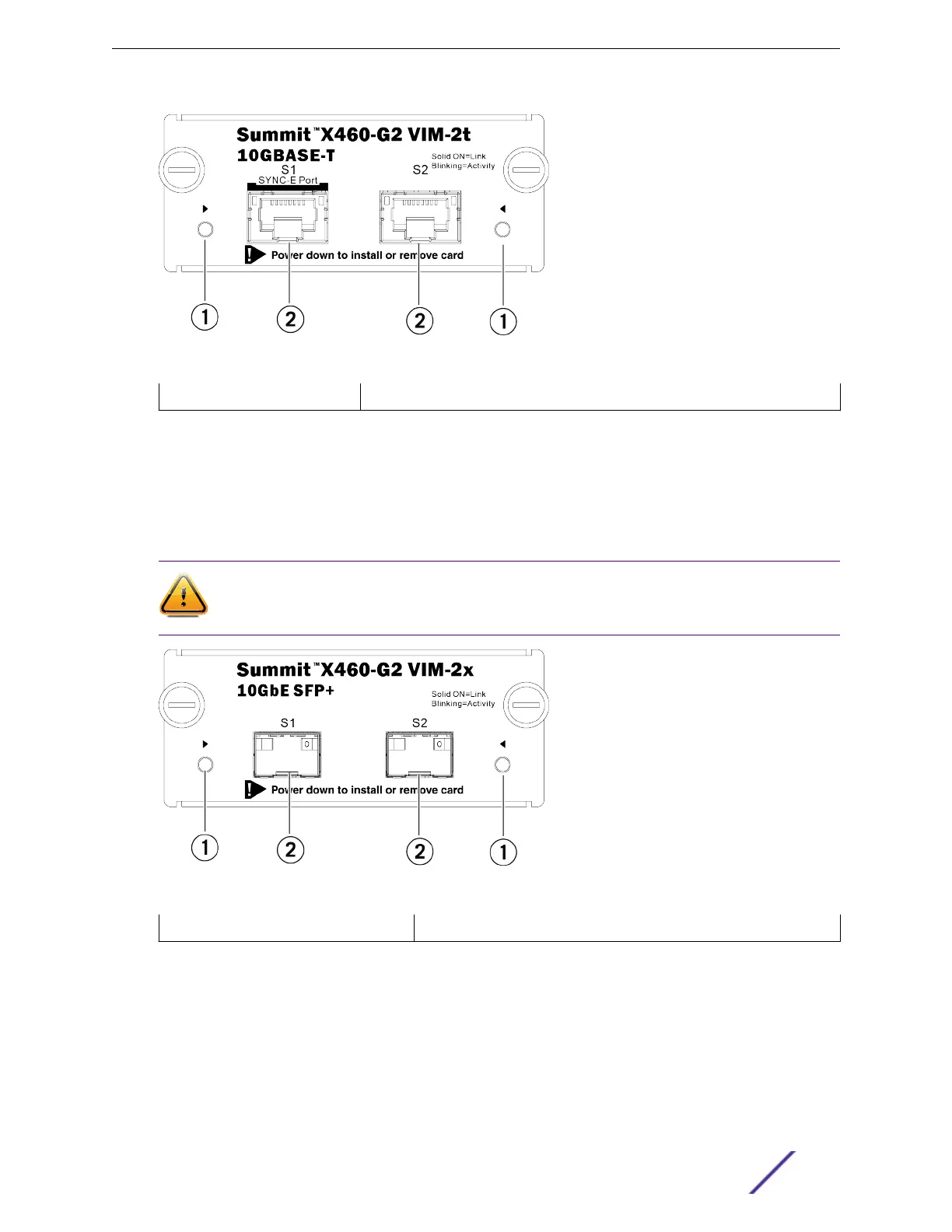

Figure 107: VIM-2t Ethernet Module Option
1 = LEDs 2 = 10G BASE-T ports
VIM-2x Ethernet Module Port Option Card
The VIM-2x Ethernet Module option card, shown in Figure 108, allows you to add up to two 10-gigabit
SFP+ optical ports to the VIM slot on the rear panel of the X460-G2 series switch. These ports support 1
GbE and 10 GbE SFP and SFP+ transceivers.
Caution
VIM modules are not hot swappable. You must power down the switch before installing any
VIM modules.
Figure 108: VIM-2x Ethernet Module Option
1 = LEDs
2 = SFP+ Ports
TM-CLK Clock Module
The TM-CLK Clock Module provides an Oven-controlled Crystal Oscillator (OCXO) for use as a reference
frequency for SyncE and 1588v2 precision time features. The OCXO is precise to +-2 nanoseconds (ns)
with time accuracy +50 to -65 ns. The ExtremeXOS configuration selects the input to the clock module
from a SyncE master port or a 1588v2 grandmaster clock. The TM-CLK module is required for SyncE on
Expansion Modules
ExtremeSwitching and Summit Switches: Hardware Installation Guide 118

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
