Preparing the Cables for a 300 W DC Power Supply
You need a crimping tool to attach the terminals to the power and ground cables.
To prepare the cable wires, follow these steps:
1 On each cable wire, strip 6 mm (0.25 inch) of insulation from one end.
2 Insert the end of one power cable wire all the way into the barrel of a spade terminal and crimp the
terminal securely to the wire.

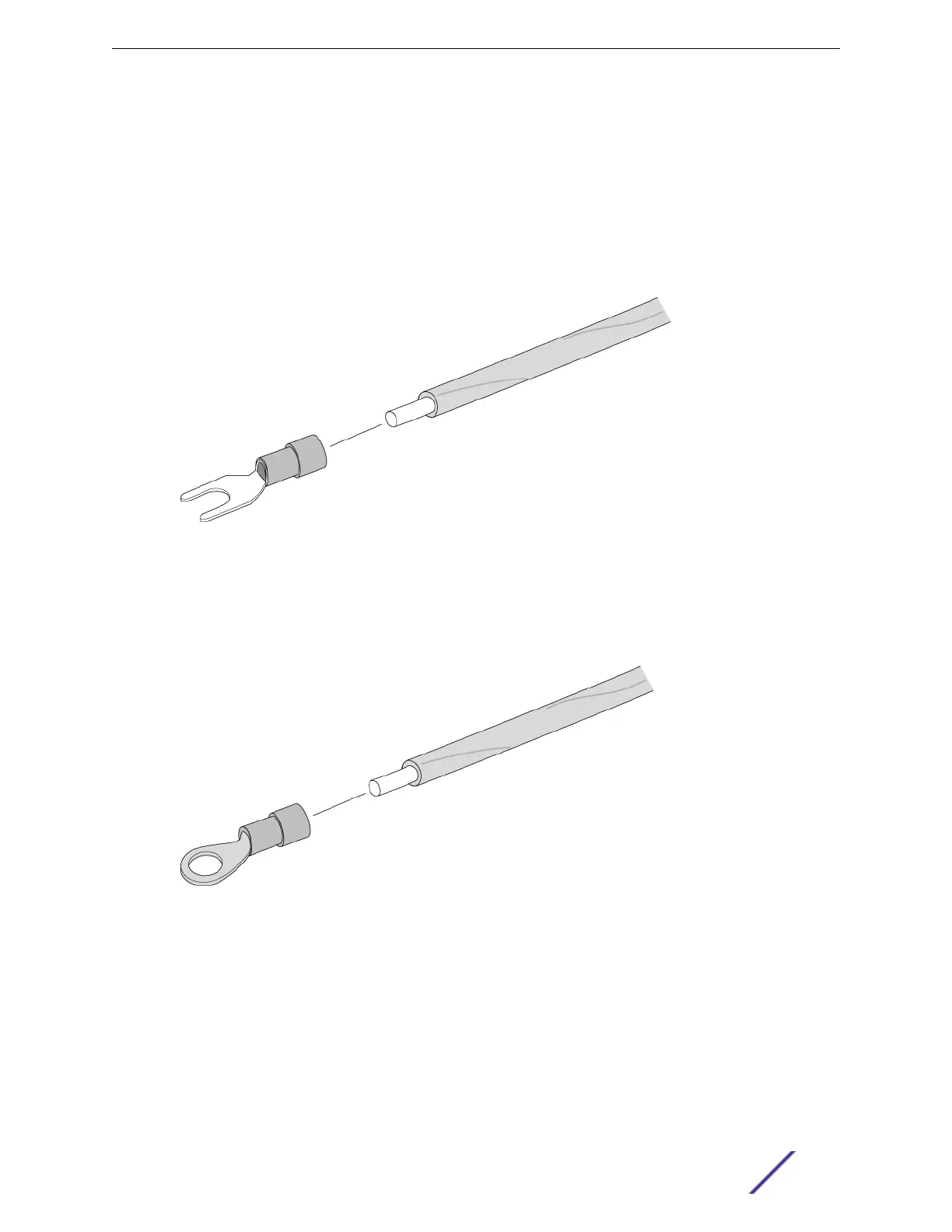

Figure 138: Attaching a Spade Terminal to a Cable
3 Repeat step Preparing the Cables for a 300 W DC Power Supply on page 187 for the other power
cable wire.
4 Insert the end of the stripped ground wire (green or green and yellow) all the way into the barrel of
the ring terminal and crimp the terminal securely to the wire.
Figure 139: Attaching a Ring Terminal to a Ground Cable
Installing a 300 W DC Power Supply
Before installing a Summit 300 W power supply (part no. 10933 or 10944):
•
Verify that the switch chassis has been grounded.
•
Verify that the airflow direction for the power supply is the same as the airflow direction of the
installed fan modules in the switch.
Installing Your Extreme Networks Switch
ExtremeSwitching and Summit Switches: Hardware Installation Guide 187

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
