Extreme Networks ExtremeSwitching X440-G2 Series User Manual

2 Insert the end of one power cable wire all the way into the barrel of a spade terminal and crimp the
terminal securely to the wire.

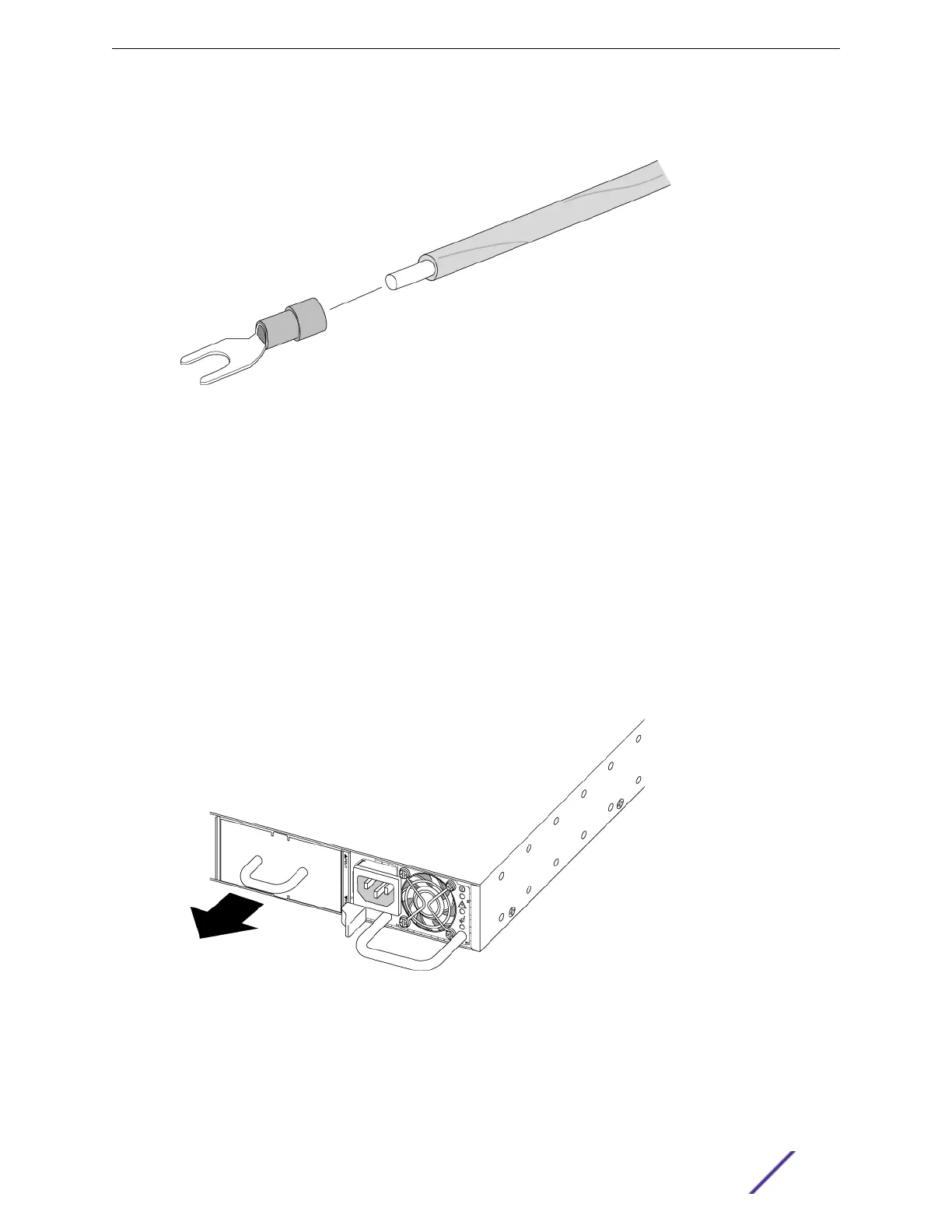

Figure 147: Attaching a Spade Terminal to a Cable
3 Repeat step 2 for the other power cable wire and for the ground wire.
Installing a 550 W DC Power Supply
Before installing a Summit 550 W DC power supply:
•
Verify that the switch rack or chassis has been grounded.
•
Verify that the airflow direction for the power supply is the same as the airflow direction of the
installed fan modules in the switch.
To install the power supply, follow these steps:
1 Attach an ESD-preventive wrist strap to your bare wrist and connect the metal end to an
appropriate ground point on the rack.
2 If necessary, remove a blank panel from the rear of the switch.
Figure 148: Removing a Blank Panel
3 Verify that the power supply is right side up.
The power supply should be oriented as shown in Figure 149.
Installing Your Extreme Networks Switch
ExtremeSwitching and Summit Switches: Hardware Installation Guide 196

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
