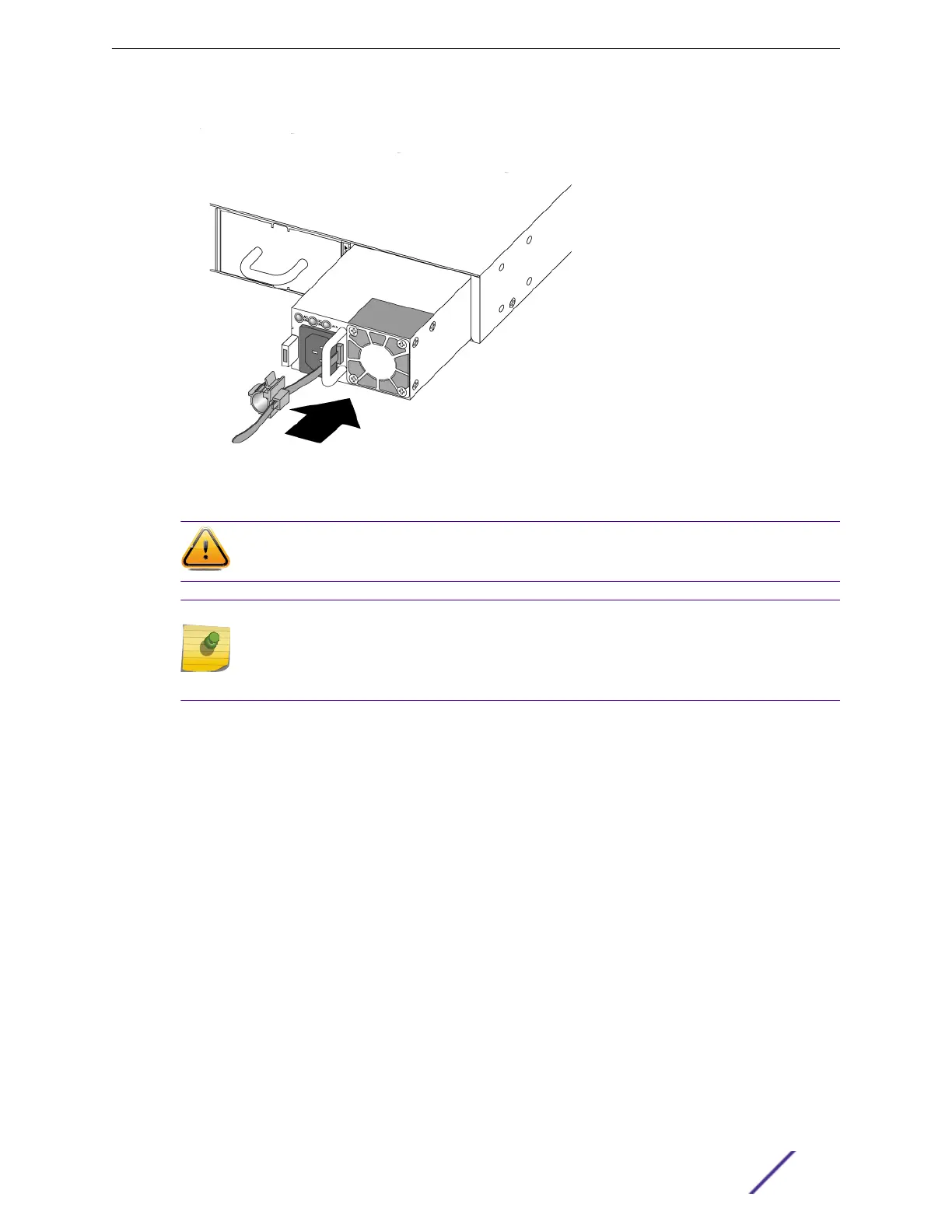

Figure 164: Installing a 750 W AC Power Supply
5 Push the power supply in until the latch snaps into place.
Caution
Do not slam the power supply into the switch.
Note
If power supplies are not installed in both power supply bays, be sure to install a cover
over the unoccupied bay. Unoccupied bays must always be covered to maintain proper
system ventilation and EMI levels.
6 Connect the AC power cord.
For 300 W AC power supplies: connect the AC power cord to the input connector on the power
supply and rotate the wire clip into place over the power cord connector.
For 750 W AC power supplies:
Installing Your Extreme Networks Switch
ExtremeSwitching and Summit Switches: Hardware Installation Guide 214
