Extreme Networks ExtremeSwitching X440-G2 Series User Manual

3 Attach the mounting brackets as follows:
a Place a mounting bracket over the mounting holes on one side of the EPS-C2 (see Figure 172).
b Insert the screws and fully tighten them using a screwdriver.

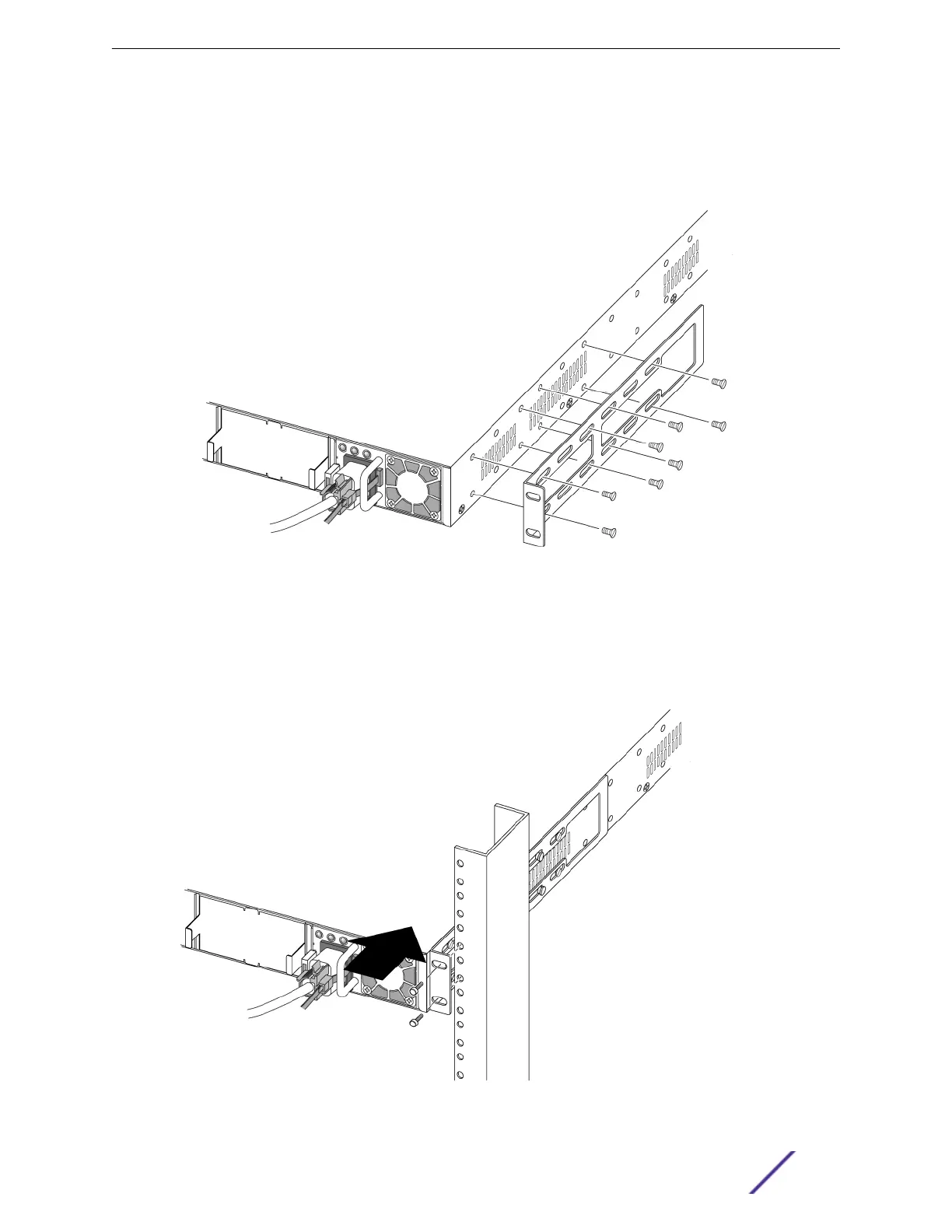

Figure 172: Attaching the Mounting Bracket to the EPS-C2 Chassis
c Attach the mounting bracket for the other side of the EPS-C2.
4 Slide the EPS-C2 into the rack and secure it using appropriate rack-mount screws.
See Figure 173.
Figure 173: Sliding the EPS-C2 into the Rack and Securing it
Installing External Power Supplies
ExtremeSwitching and Summit Switches: Hardware Installation Guide 227

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
