Extreme Networks ExtremeSwitching X440-G2 Series User Manual

Connecting the RPS Cable and AC Power Cord
Attention
When performing this task, observe all of the precautions listen in Safety Considerations for
Installing Power Supplies on page 224.
The redundant power supply is connected to a switch using a 1-meter RPS cable.
To connect a redundant power supply, proceed as follows:
Note
No change in switch configuration is necessary for this installation.
1 Connect one end of the RPS cable to the redundant power supply connector at the rear of the RPS.
Then connect the other end of the cable to the redundant power supply connector on the switch.
See the following figures.

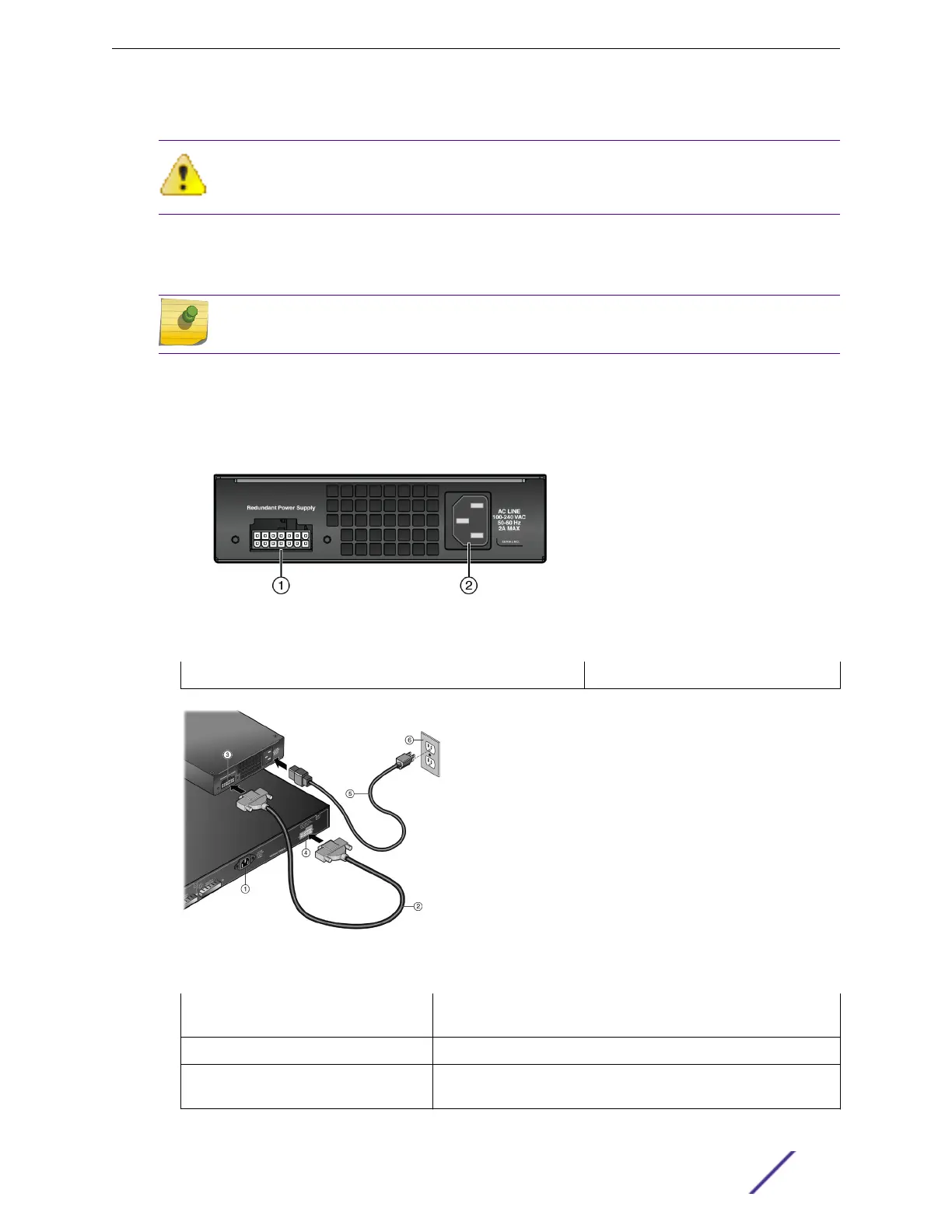

Figure 192: Power Connectors on STK-RPS-150PS (rear view)
1 = Redundant power supply connector
2 = AC power connector
Figure 193: RPS and AC Power Cord Connections
1 = Switch
4 = Switch Redundant Power Supply connector (location varies
depending upon switch)
2 = High speed RPS cable (1 meter) 5 = AC power cord (type varies depending on country)
3 = RPS Redundant Power Supply
connector
6 = AC power outlet with ground connection (type varies
depending on country)
Installing External Power Supplies
ExtremeSwitching and Summit Switches: Hardware Installation Guide 246

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
