Extreme Networks ExtremeSwitching X440-G2 Series User Manual

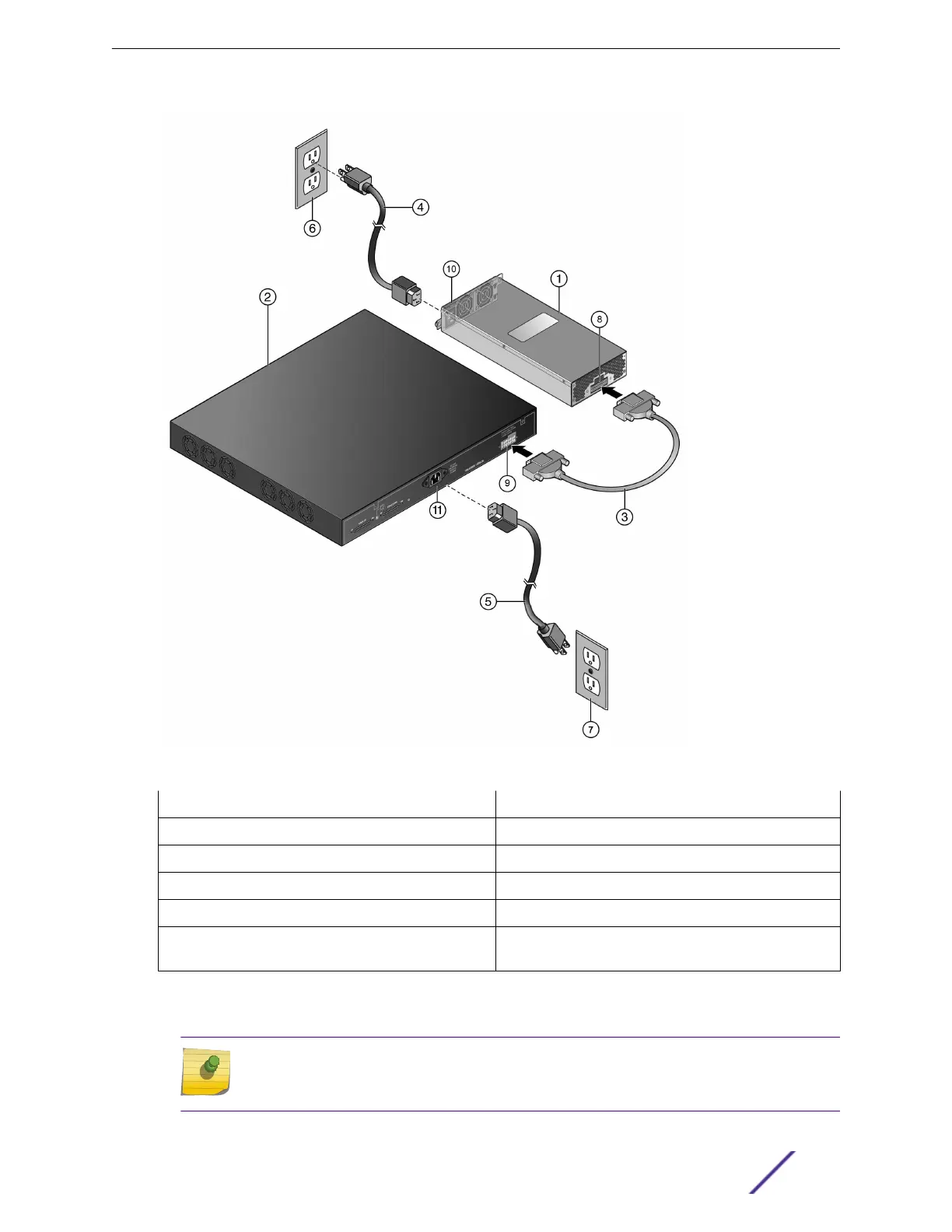

Figure 196: RPS Cable and AC Power Cord Connections for the STK-RPS-1005PS
1 = STK-RPS-1005PS power supply
7 = AC power outlet with ground connection for switch
2 = Switch 8 = Redundant power supply connector on power supply
3 = RPS cable 9 = Redundant power supply connector on switch
4 = RPS AC power cord 10 = AC connector on power supply
5 = Switch AC power cord 11 = AC connector on switch
6 = AC power outlet with ground connection for power
supply
1 Connect one end of the RPS cable (3) to the RPS connector at the rear of the power supply (8).
2 Connect the other end of the RPS cable (3) to the RPS connector on the switch (9).
Note
AC power cords and outlets vary depending on country. See Selecting Power Supply
Cords on page 401 for more information.
Installing External Power Supplies
ExtremeSwitching and Summit Switches: Hardware Installation Guide 250

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
