3 Slide a power supply into an empty bay in the shelf, as shown in Figure 199.

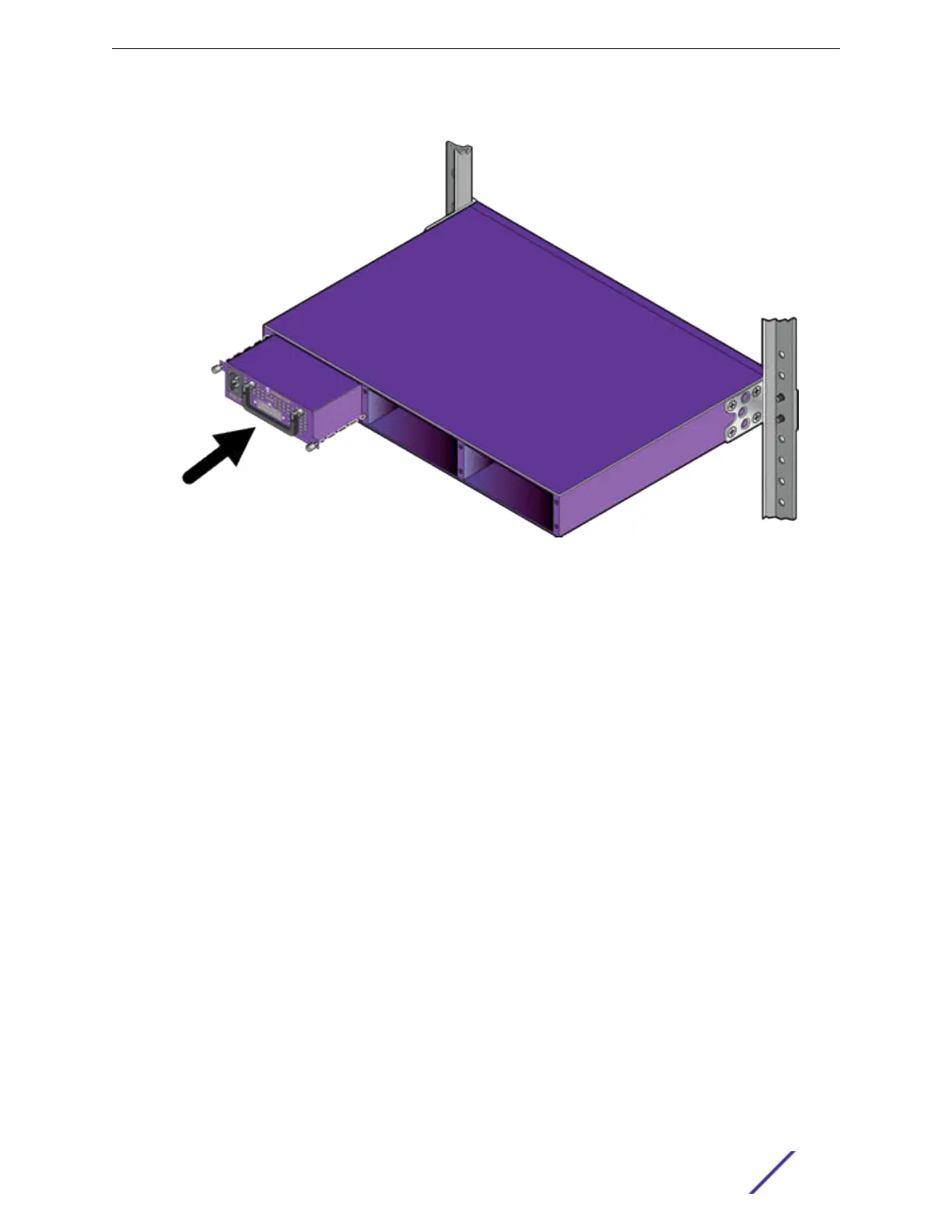

Figure 199: Inserting a VX-RPS-1000 Power Supply into the Shelf
4 Tighten the two retaining screws until the power supply is firmly attached to the shelf.
5 Connect a power cable (included with the power supply) to the output socket on the power supply
and the RPS input connector on the rear of the V400 unit.
6 Connect an AC power cord (not included) to the AC power input socket on the power supply and to
an AC power outlet.
When power is connected, verify that the power supply’s DC OK LED turns green. Verify that the
port extender’s PWR LED turns green.
7 Secure the power supply to the shelf using two captive screws on the front panel of the power
supply.
8 Optionally, install additional power supplies on the shelf – up to three in all.
Installing External Power Supplies
ExtremeSwitching and Summit Switches: Hardware Installation Guide 254

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
