c Slide the spade terminal of the positive wire (+24 V) under the captive square washer on the
positive terminal (labeled +24 V).
See Figure 224.

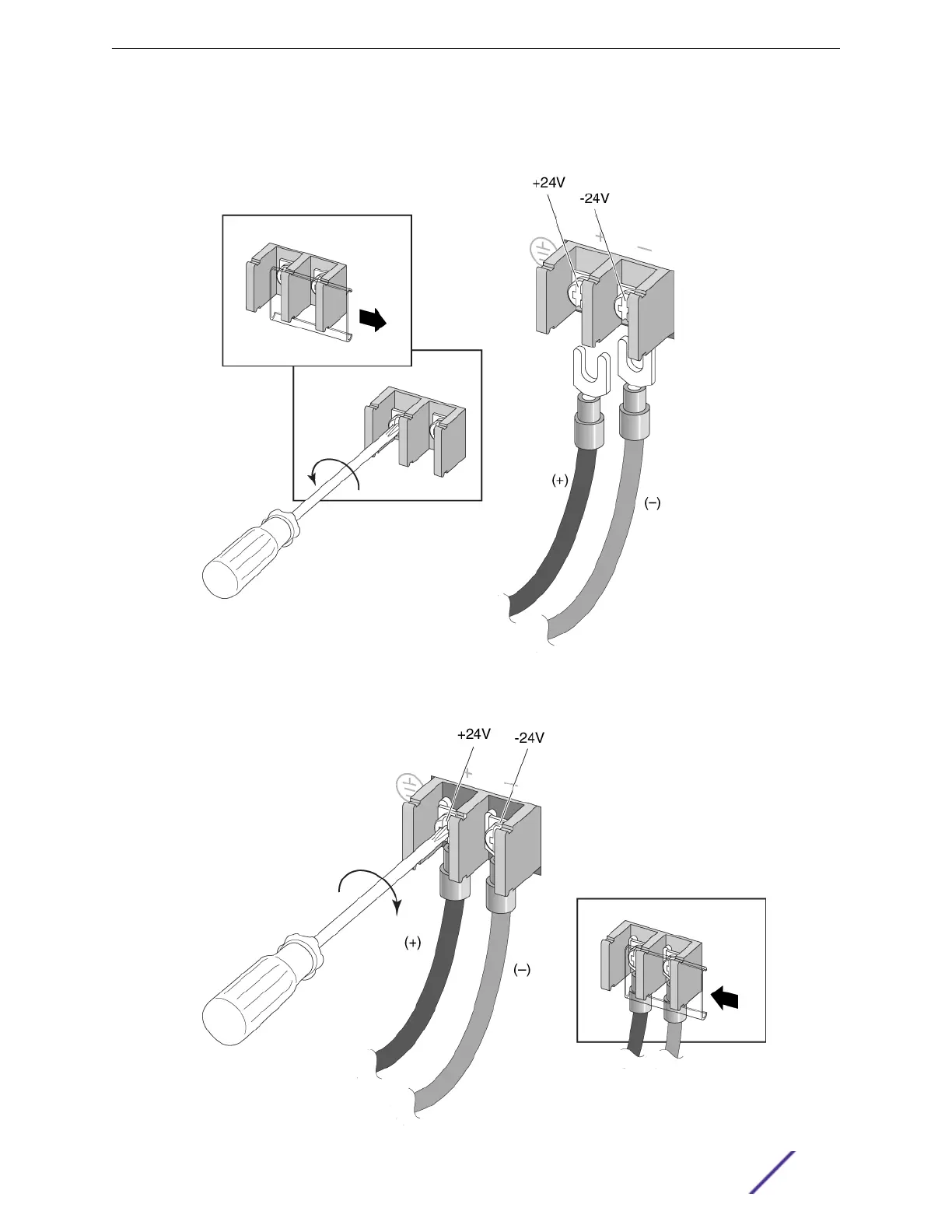

Figure 224: Connecting the DC Power Cables: Part 1
d Tighten both screws on the terminal block to 15.9 in-lb (1.8 N-m) as shown in Figure 225.
Figure 225: Connecting the DC Power Cables: Part 2
Replacing DC Power Supplies
ExtremeSwitching and Summit Switches: Hardware Installation Guide 284
