c Slide the spade terminal of the positive wire (–48 V RTN) under the captive square washer on the
positive terminal (labeled +).

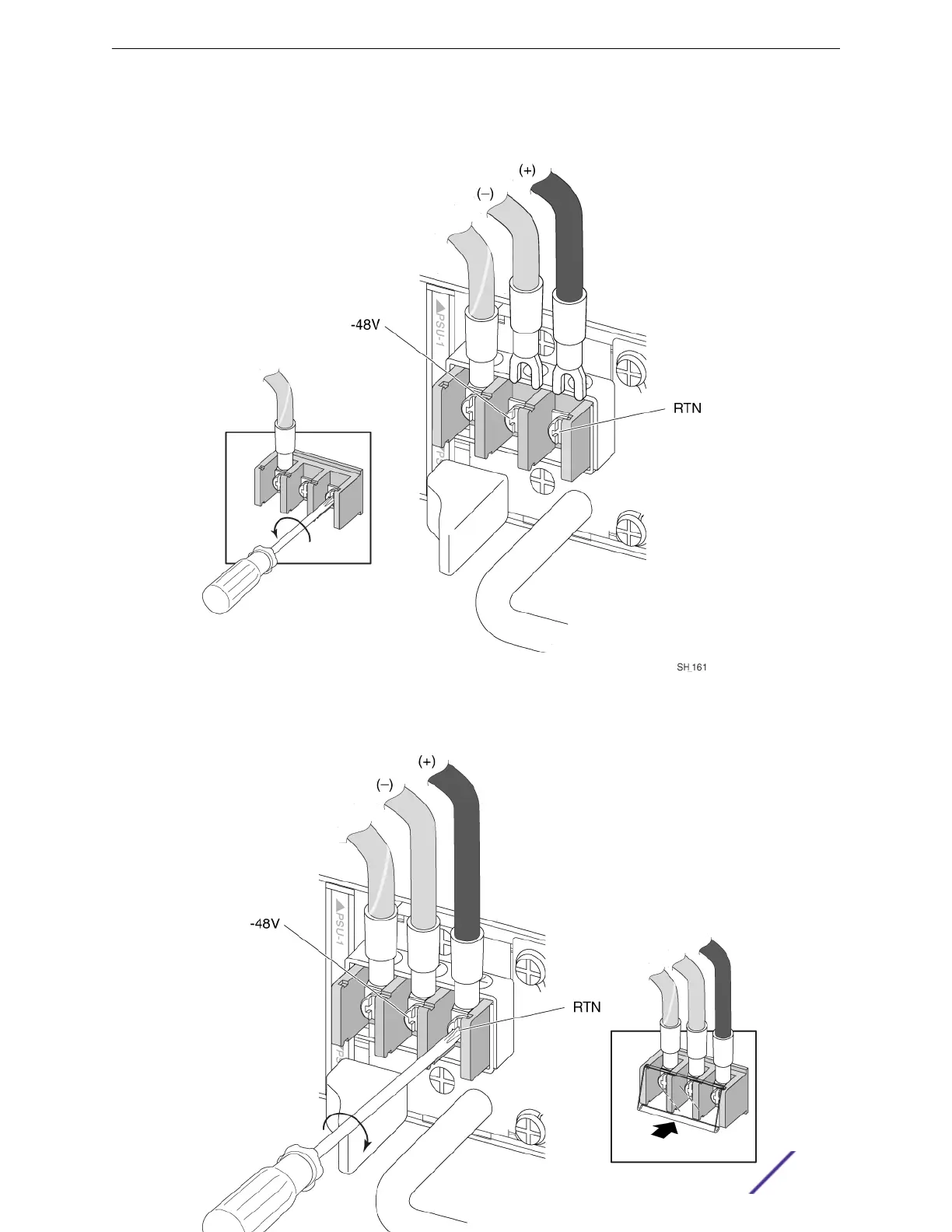

Figure 232: Connecting the DC Power Cables: Part 1
d Tighten both screws on the terminal block to 7 in‑lb (0.79 N m), as shown in Figure 233.
Figure 233: Connecting the DC Power Cables: Part 2
Replacing DC Power Supplies
ExtremeSwitching and Summit Switches: Hardware Installation Guide 293
