Connect the Ground Wire to an 1100 W DC Power Supply
To connect the ground wire to the 1100 W DC power supply, follow these steps:
Warning
Be sure to connect the ground wire before you connect any power cables to the power
supply.
1 Verify that the DC circuit is de-energized.
2 Attach an ESD-preventive wrist strap to your bare wrist and connect the metal end to an
appropriate ground point on the rack.
3 Identify the grounding post on the right side of the power supply, above the latching tab.
4 Connect the ground wire to the grounding post as follows:
a Remove the nut from the grounding post.

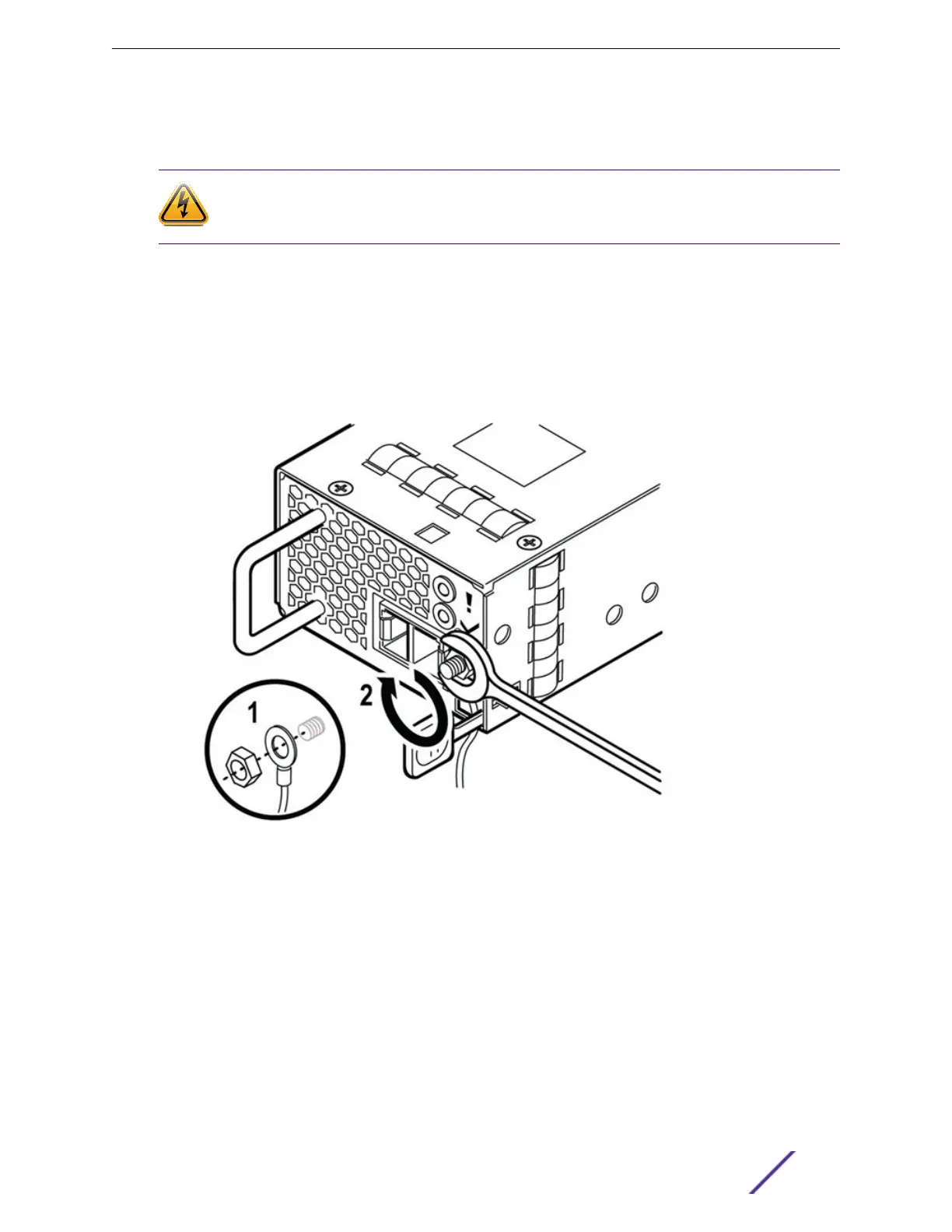

b Slide the ring terminal of the ground wire onto the grounding post (callout 1 in Figure 241).
Figure 241: Securing the Ground Wire
c Screw the nut onto the grounding post (callout 2).
d Tighten the nut to 7 in‑lb (0.79 N m).
5 Connect the other end of the wire to a known reliable earth ground point at your site.
6 Connect the power supply to the DC power source. See the instructions in Connect DC Power Cables
to an 1100 W DC Power Supply on page 303.
Replacing DC Power Supplies
ExtremeSwitching and Summit Switches: Hardware Installation Guide 302

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
