Rear dual PSU power slots with front-to-back or back-to-front airflow.
•
Four rear slots for fan modules with front-to-back or back-to-front airflow.
Note
Two additional fan slots are unused. Do not remove the cover plate from the unused slots.

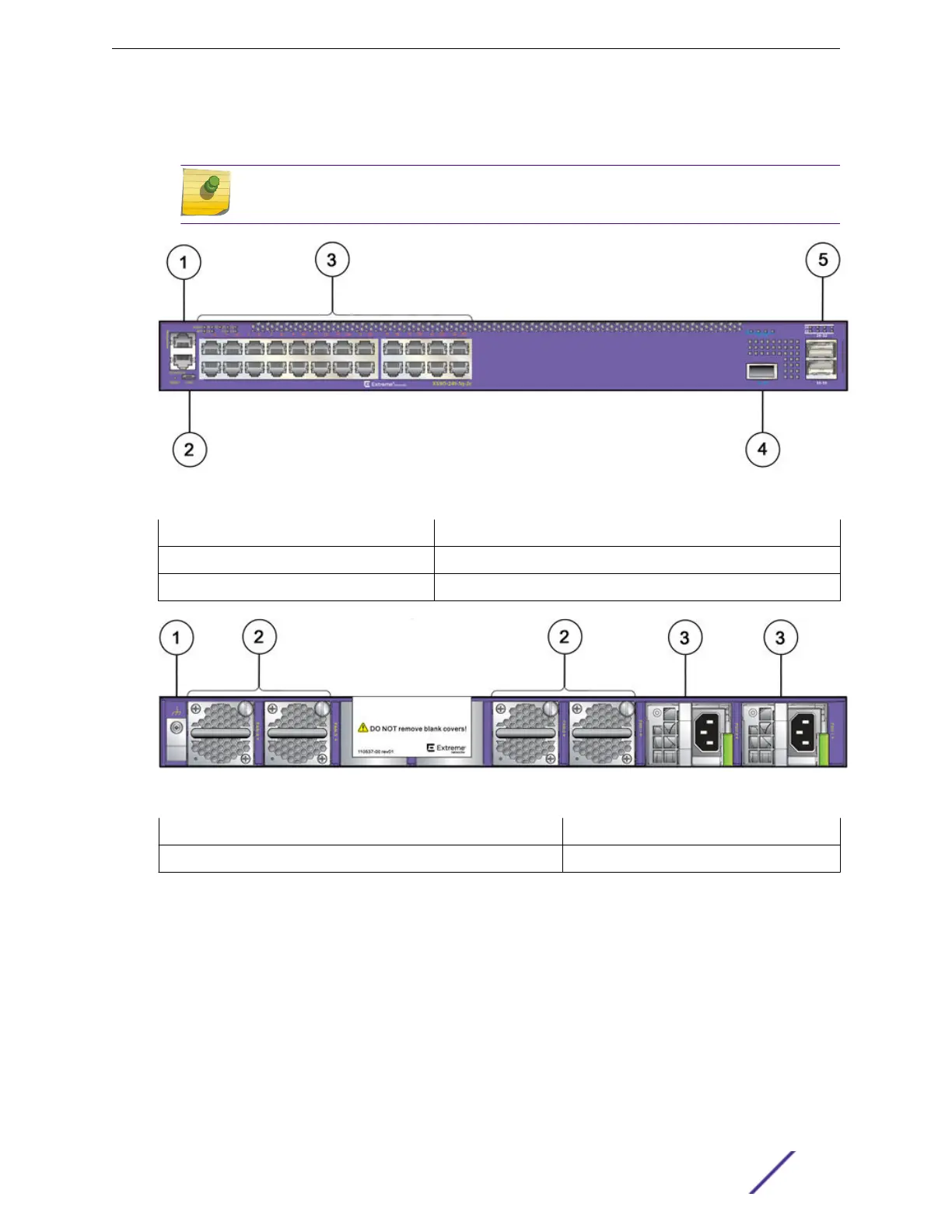

Figure 68: X590-24t-1q-2c Front Panel
1 = Console/management port 4 = 10Gb/40Gb QSFP+ port
2 = USB port 5 = 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
3 = 100Mb/1 Gb/10GBASE-T ports
Figure 69: X590-24t-1q-2c Rear Panel
1 = Grounding lug
3 = AC power input
2 = Replaceable fan modules
ExtremeSwitching X590-24x-1q-2c Switch Ports and Slots
X590-24x-1q-2c switch ports and slots include:
•
24 fixed autosensing 1 Gb/10GBASE-X SFP+ ports (ports 1-24) that provide 10 Gbps copper
connectivity. Two of these ports are configurable as stacking ports.
•
One 40-gigabit Ethernet port capable of supporting passive copper QSFP+ and active fiber QSFP+
and configurable for 1x40 Gb or 4x10 Gb Ethernet mode.
•
Two 100-gigabit Ethernet ports capable of supporting passive copper QSFP28/QSFP+ and active
fiber QSFP28/QSFP+ and configurable for 100 Gb, 40 Gb, 2x50 Gb, 4x25 Gb, and 4x10 Gb modes.
ExtremeSwitching Switches
ExtremeSwitching and Summit Switches: Hardware Installation Guide 60

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
