Port numbers are assigned depending on whether the physical ports are partitioned into data lanes. To
illustrate, Figure 86 shows the physical ports on the X690 front panel that can be partitioned. Table 22
on page 76 and Table 23 on page 77 detail how port numbers are assigned for each of the physical
ports.

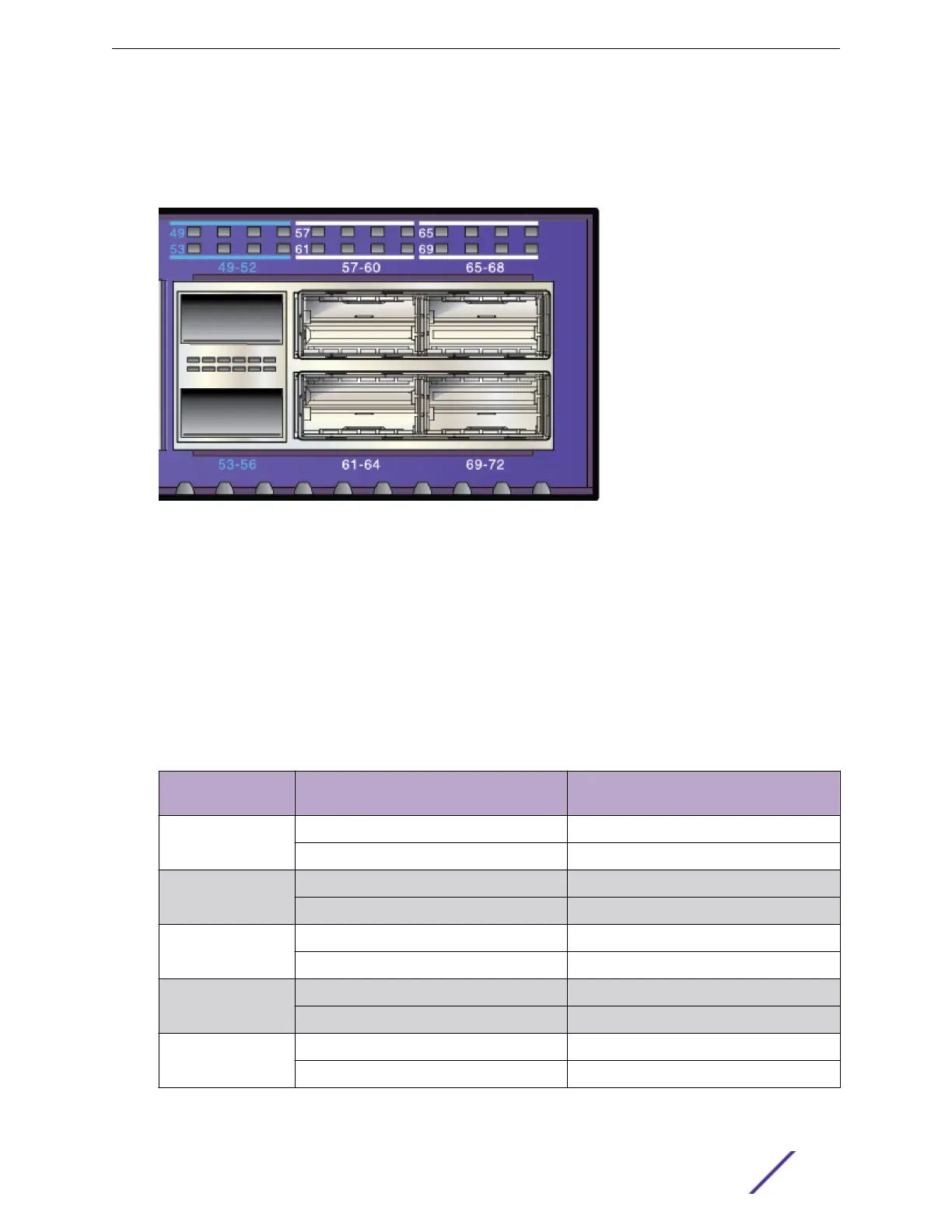

Figure 86: X690 Ports that Can Be Partitioned into Data Lanes
The ports labeled 49-52 and 53-56 operate in 40 Gb mode, acting as single 40 Gb ports or multiple 10
Gb ports.
The ports labeled 57-60 and above operate in 40 Gb mode or 100 Gb mode, with a variety of speeds.
In 40-gigabit mode, each port can be partitioned into four 10-gigabit data lanes.
In 100-gigabit mode, each port can be partitioned into two 50-gigabit data lanes or four 25-gigabit data
lanes.
Table 22: Port Number Assignments (in 40 Gb Mode)
Physical Port
Number (on Switch)
Has these Assigned Port Number(s).... ...with this Port Speed
49-52 49 40 Gb
49,50,51,52 10 Gb
53-56 53 40 Gb
53,54,55,56 10 Gb
57-60 57 40 Gb
57,58,59,60 10 Gb
61-64 61 40 Gb
61,62,63,64 10 Gb
65-68 65 40 Gb
65,66,67,68 10 Gb
ExtremeSwitching Switches
ExtremeSwitching and Summit Switches: Hardware Installation Guide 76

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
