4-45
PRELIMINARY
MLC 226 Series • Software-and Web Page-based Setup and Control
instructions.
• IR Drivers — This Web page lists IR driver files only and allows you to select a
file to see and execute the commands stored in them. This page is available
only to those logged in with administrator level access.

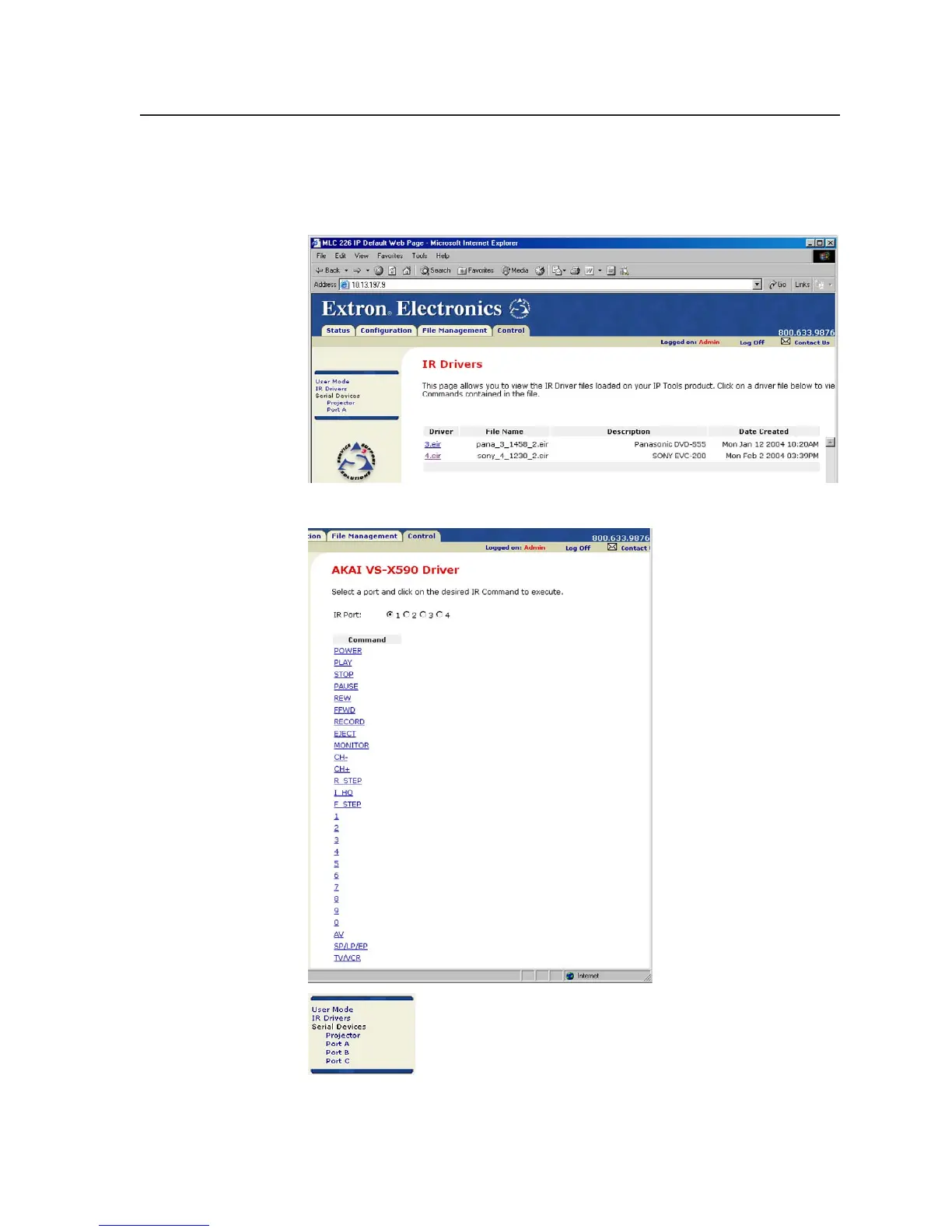

An example for a specific IR driver is shown below.
• Serial Devices’ Drivers — Once the ports have been
set up in the configuration program, each configured serial
port (projector control port and any IR/Serial control ports)
is listed in this section of the Control page menu.
Click on a port name to bring up a page that shows the
available commands for the device cabled to that port. See the sample screen
shots on the next page.
If you want to execute a command that is available in the driver (whether
associated with an MLC button or not) for a configured device, you can click on
a button or select an option from a pulldown menu to execute that command.
