MLC 226 Series • Software-and Web Page-based Setup and Control
Control
• User Mode — The first of the Control Web pages is User Mode, which is a
representation of the controller’s front panel buttons, volume control, and
relays, and also of any optional control modules (IRCMs, RCMs, ACMs) that
are part of the system. Clicking on a button on screen emulates a button press
on the corresponding device. This page is accessible to both administrators
and users, but only those with administrator privileges can trigger the relays.
From the factory, the MLC 226 IP comes
with a preloaded Web page with a basic
representation of the MLC 226’s front
panel controls and the buttons of any
optional attached control modules. See the
example at left.
Web pages that show a more lifelike
representation of the MLC’s front panel
and of control modules (as shown below)
are included with the configuration
software. These pages (over 200 files) can
be uploaded into the MLC if you select
Load Enhanced Web Pages from the Tools
menu and follow the on-screen

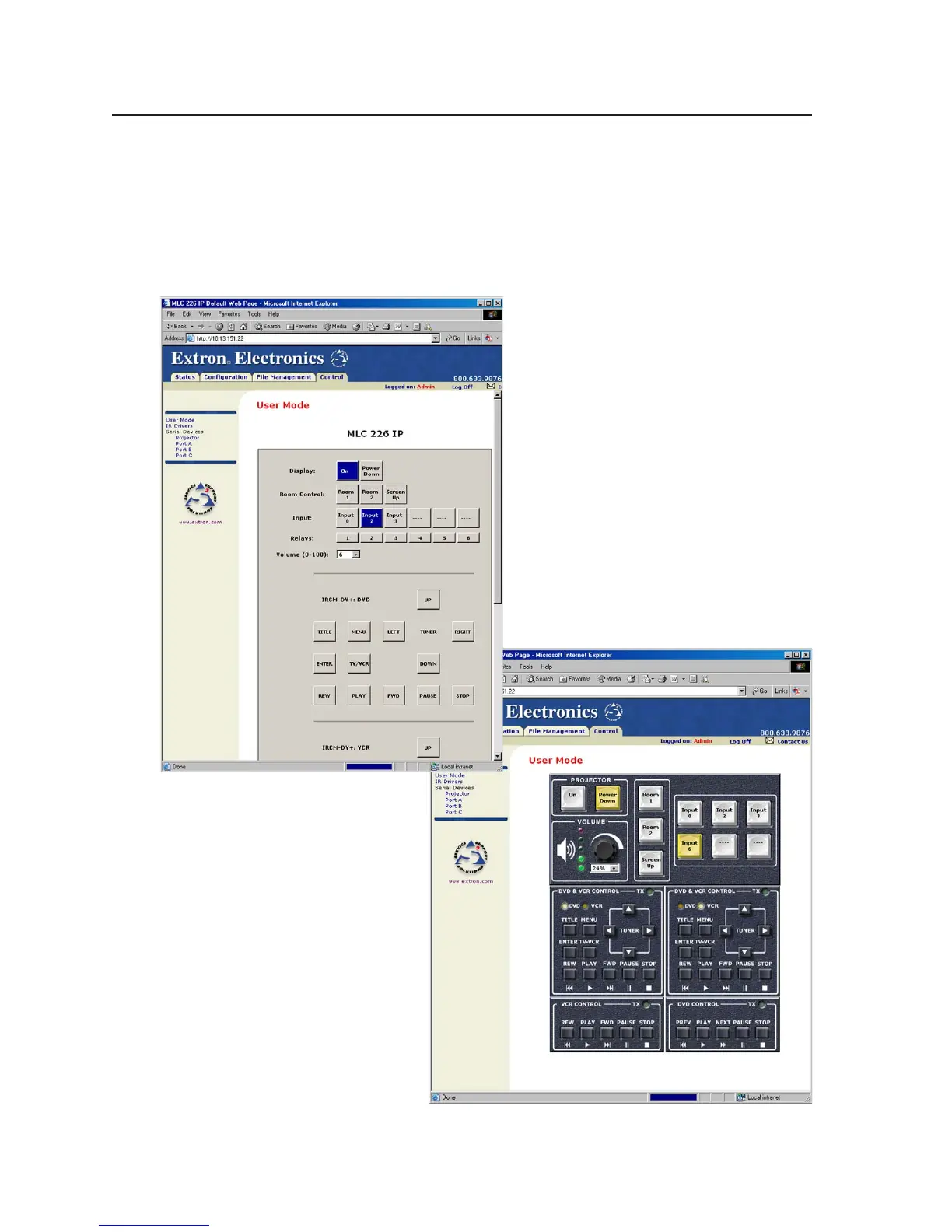

Typical User Mode page
Enhanced User Mode page
