MLC 226 Series • Software-and Web Page-based Setup and Control
Button Config.
The Button Config. tab shows and provides a way to set up all the available
programmable buttons of Extron devices that are part of the system:
• the MLC/SCP buttons (they are the same buttons and execute the same
functions)
• the IR 402 remote control’s buttons
• the buttons of any attached control modules (IRCMs, RCMs, ACMs)
In this part of the program you associate up to a total of six functions with each
button. You can select from driver functions, relay operations, button light
changes, delays between operations, digital output operations, and/or special
user-programmed commands. The options can be assigned in any combination.
Once the buttons are configured, this screen provides a way to check what type
of command or function, if any, is set for each button.
If logged in as a user rather than an administrator, you are not able to make
any changes to button configurations.

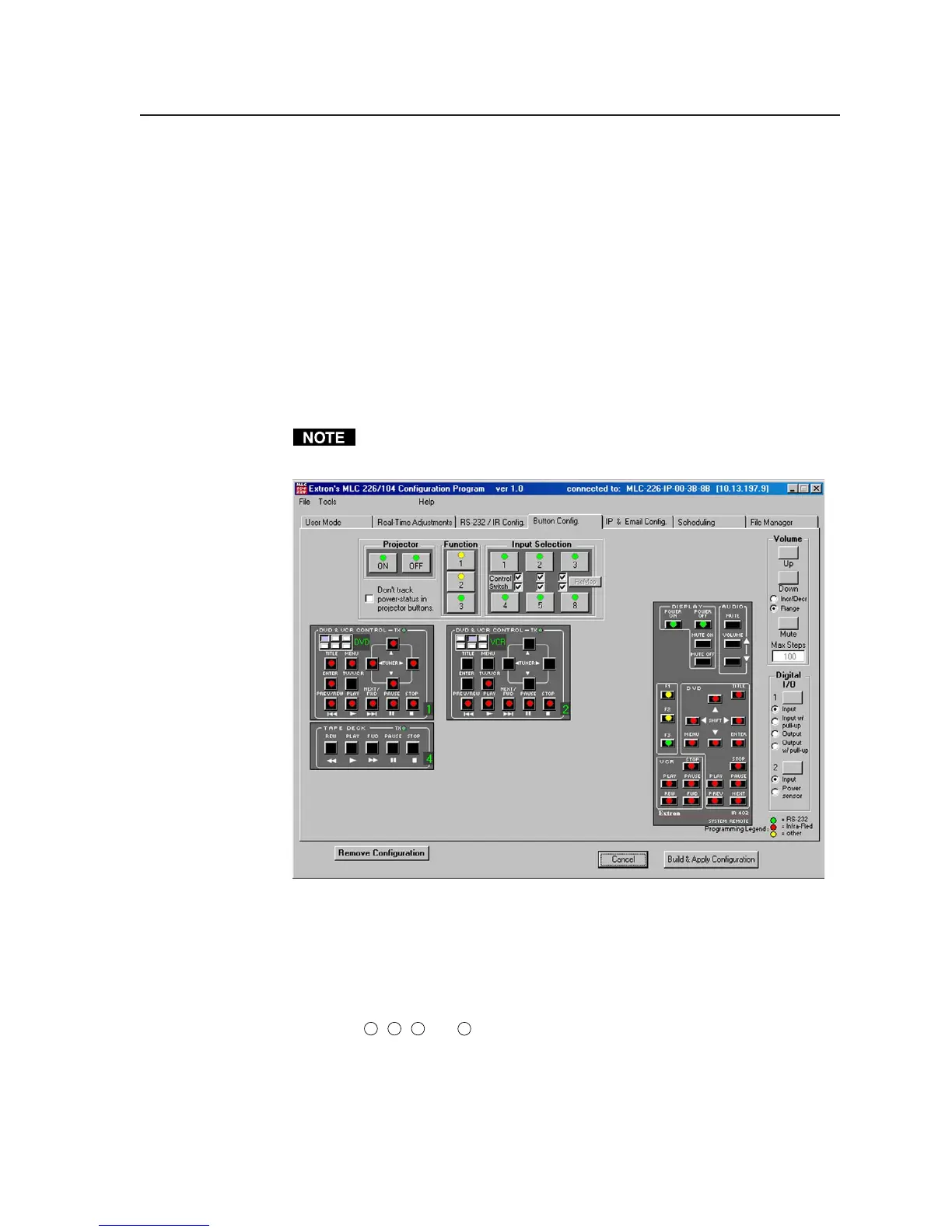

Sample Button Config. tab after buttons have been set up
Configuring buttons
This procedure provides a step-by-step look at how to configure one of the
buttons. The same procedure applies to most of the buttons shown on this
screen. Additional options for the function buttons are discussed in
“Configuring function buttons for toggle mode and/or tracking” in this chapter.
Numbers (
1
,
2
,
3
, …,
7
) shown in the sample screen pictures correspond to
the step numbers for this procedure.
1. Click on a button that you wish to configure on the front panel, a control
module, or the IR 402. A dialog box appears on screen that allows you to
select up to six separate actions to associate with the selected button.
