Software- and Web Page-based Setup and Control, cont’d
4-24
PRELIMINARY
MLC 226 Series • Software-and Web Page-based Setup and Control
RS-232 / IR Config.
In the RS-232 / IR Config. tab, shown below, you select the settings and device
drivers to use for the projector control port and the four IR/Serial output ports.

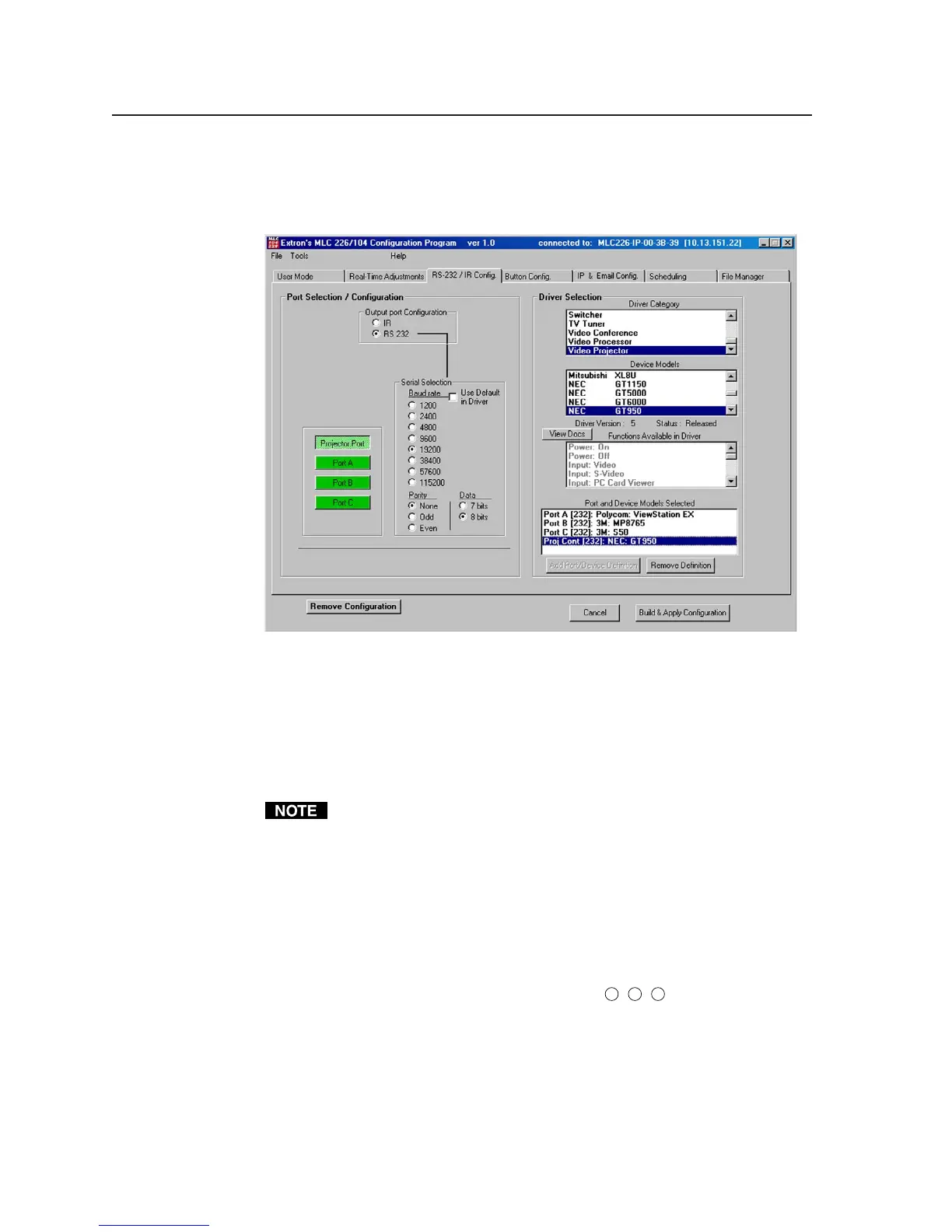

Sample RS-232 / IR Config. tab
In this part of the program you can:
• Select whether a specific port will output IR signals or RS-232 commands.
• Select the protocol (baud rate, parity, data bits) for the port if used for RS-232
control or let the controller use the default settings in the driver.
• Choose and add a driver (a set of control commands) for the device you want
to control via that port.
If logged in as a user you are not able to make any changes on this page.
Only those logged on with administrator privileges can alter the port
settings.
Port configuration
To set up each port, make selections from left (choice of port, then the port’s
output protocol) to right (driver category and model). When finished setting up
all the ports, you may click on Build & Apply Configuration. Or you may
continue to configure the controller using the Button Config. tab and the IP &
Email Config. tab, then click on Build & Apply Configuration.
See the procedure on the next page. The numbers (
1
,
2
,
3
, …) shown on the
sample screen pictures correspond to the numbered steps of the procedure.
