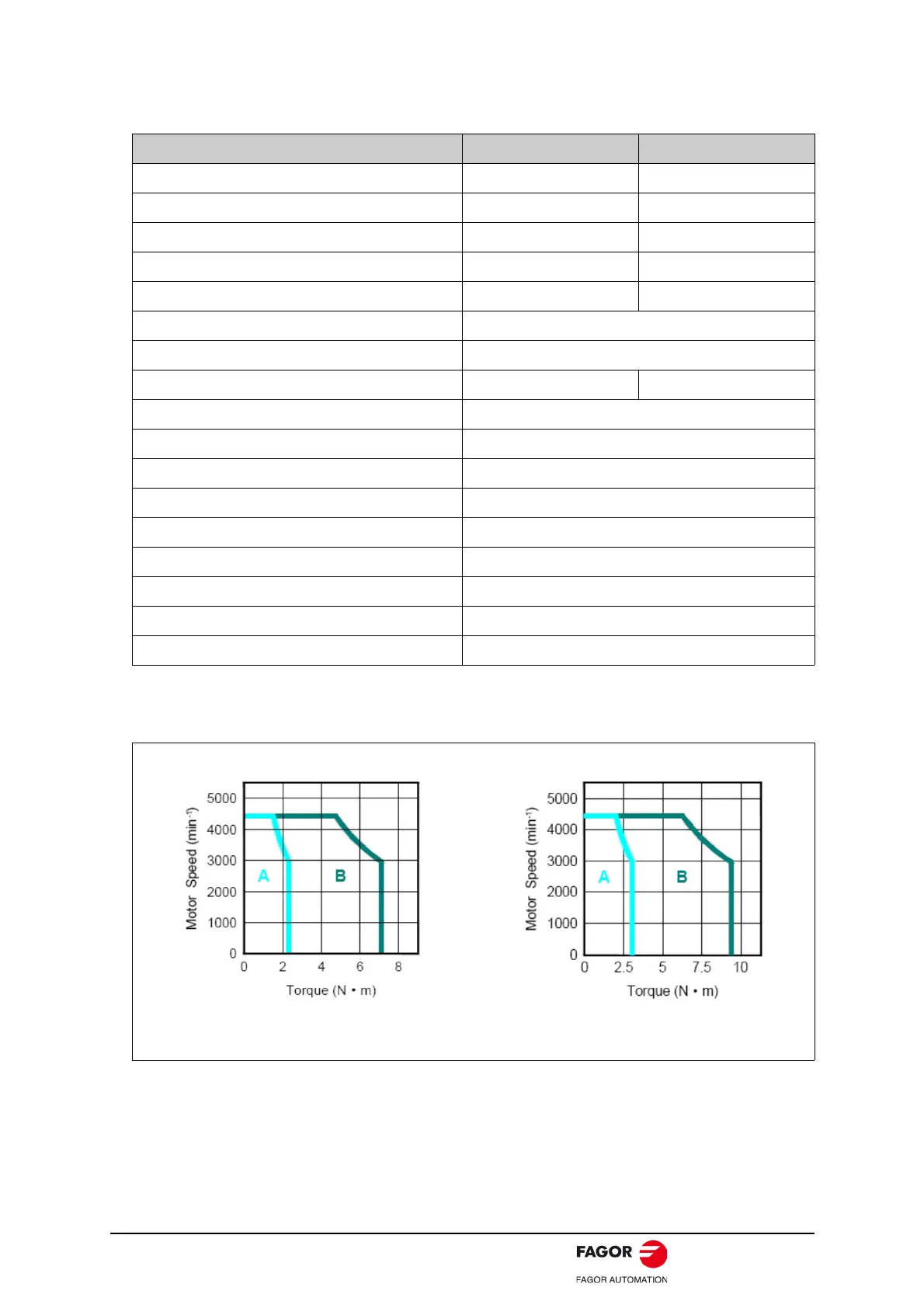

Digital Brushless AC Servo Drive system - Ref. 1809 BCSD-11/116
• Rated Value and Specification of FBS motors.
Note: The values in parentheses are for servo motors with holding brakes.
• Torque-Speed Feature of FBS motors.
Servo Motor Model FBS-08ADB FBS-10ADB
Rated Output Power (kW) 0.75 1.0
Rated Torque (N.m) 2.39 3.18
Instantaneous peak Torque (N.m) 7.16 9.55
Rated current (Arms) 4.0 5.3
Instantaneous Max. current (Arms) 12.0 15.9
Rated speed (r/min) 3000
Max. speed (r/min) 4500
Rotor moment of inertia (x10
-4
Kg.m
2
) 1.35 (1.47) 1.74 (1.87)
Brake rated voltage DC24 V ±10%
Brake rated power (W) 11.5
Brake holding torque (N.m) 3.2
Encoder Absolute encoder: 131072P/R
Insulation class F
Ambient temperature 0 to +40 ºC (no freezing)
Ambient humidity 20 to 80% RH (non-condensing)
Vibration 49 m/s
2
Enclosure Totally Enclosed, Self-cooled, IP65
FBS-08ADB FBS-10ADB
A: Continuous Working Area
B: Repeatable Working Area
