Fagor BCSD Series User Manual

BCSD-64/116 Digital Brushless AC Servo Drive system - Ref. 1809
4.4. Operating Using Speed Control
4.4.1. Setting Parameters
4.4.2. Setting Input Signals
1. Speed Reference Input.
Input the speed reference to the servodrive using the analog voltage reference to control the servomotor
speed in proportion to the input voltage.
Parameter Meaning
Pn005 H.
0 Control mode selection: Speed control (analog reference) (factory setting)
Pn300
Speed Reference Input Gain Speed
Setting Range Setting Unit Factory Setting Setting Validation
0 ~ 3000 rpm/v 150 Immediately

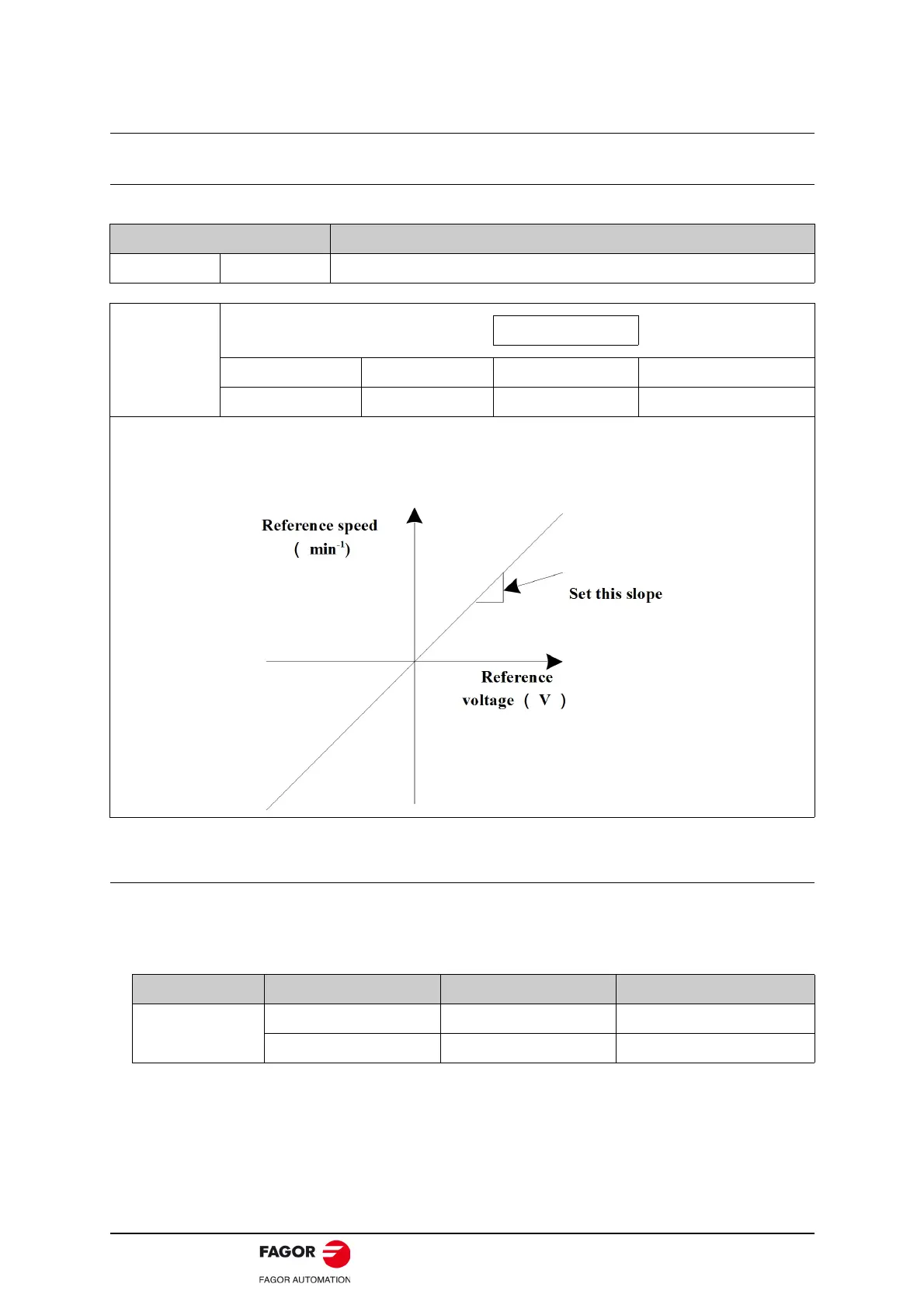

Sets the analog voltage level for the speed reference (V-REF) necessary to operate the servomotor at the rated
speed.
- EXAMPLE
Pn300=150: 1 V input is equivalent to the servomotor speed of 150 rpm (factory setting).
Type Signal Name Connector Pin Number Name
Input
V-Ref+ CN1-1 Speed Reference Input
V-Ref- CN1-2 Speed Reference Input
