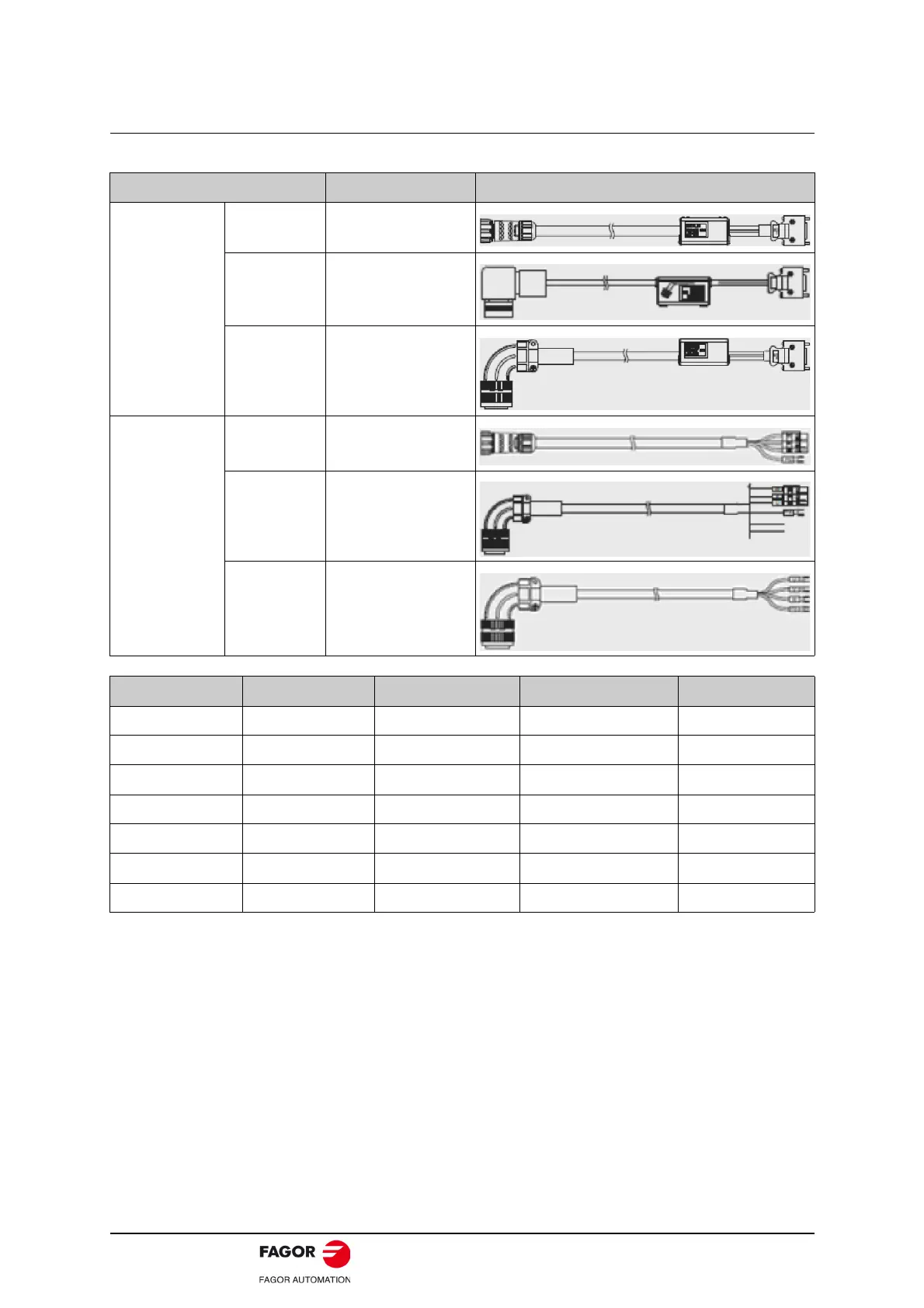

1.3. Encoder and Power cables
Note: XX is length of the cable (Unit: meter 3, 5, 8, 10, 15, 20 m).
Name Model Specifications
Serial Encoder
Cables
FBS EEC-FBS-A-XX
FBM-10D
FBM-15D
FBM-20D
EEC-FBM-A-XX-01
FBM-30D
FBM-50D
EEC-FBM-A-XX
Power Cables
FBS MPC-FBS-18-XX
FBM-10D
FBM-15D
FBM-20D
MPC-FBM-14-XX-01
FBM-30D
FBM-50D
MPC-FBM-12-XX
Servomotor Servodrive Power cable Power connector Encoder cable
FBS-08ADB  BCSD-08AMA-01 MPC-FBS-18-XX MC-FBS-08-10 EEC-FBS-A-XX
FBS-10ADB  BCSD-10AMA-01 MPC-FBS-18-XX MC-FBS-08-10 EEC-FBS-A-XX
FBM-10DDB  BCSD-10DMA-01 MPC-FBM-14-XX-01 MC-FBM-10-15-B EEC-FBM-A-XX-01
FBM-15DDB  BCSD-15DMA-01 MPC-FBM-14-XX-01 MC-FBM-10-15-B EEC-FBM-A-XX-01
FBM-20DDB  BCSD-20DMA-01 MPC-FBM-14-XX-01 MC-FBM-10-15-B EEC-FBM-A-XX-01
FBM-30DDA  BCSD-30DMA-01 MPC-FBM-12-XX MC-FBM-30-50 EEC-FBM-A-XX
FBM-50DDA  BCSD-50DMA-01 MPC-FBM-12-XX MC-FBM-30-50 EEC-FBM-A-XX
