Fagor BCSD Series User Manual

BCSD-50/116 Digital Brushless AC Servo Drive system - Ref. 1809
The servomotor can be operated using only the panel operator without reference from the host controller.
Pay attention that the Forward Run Prohibited (P-OT) and Reverse Run Prohibited (N-OT) signals are
invalid during JOG mode operation.
4.1.2. Trial Operation for Servomotor without Load from Host Reference
Check that the servomotor move reference or I/O signals are correctly set from the host controller to the
servodrive.
Also check the wiring and polarity between the host controller and servodrive, and the servodrive operation
setting are correct. This is final check before connecting the servomotor to the machine.

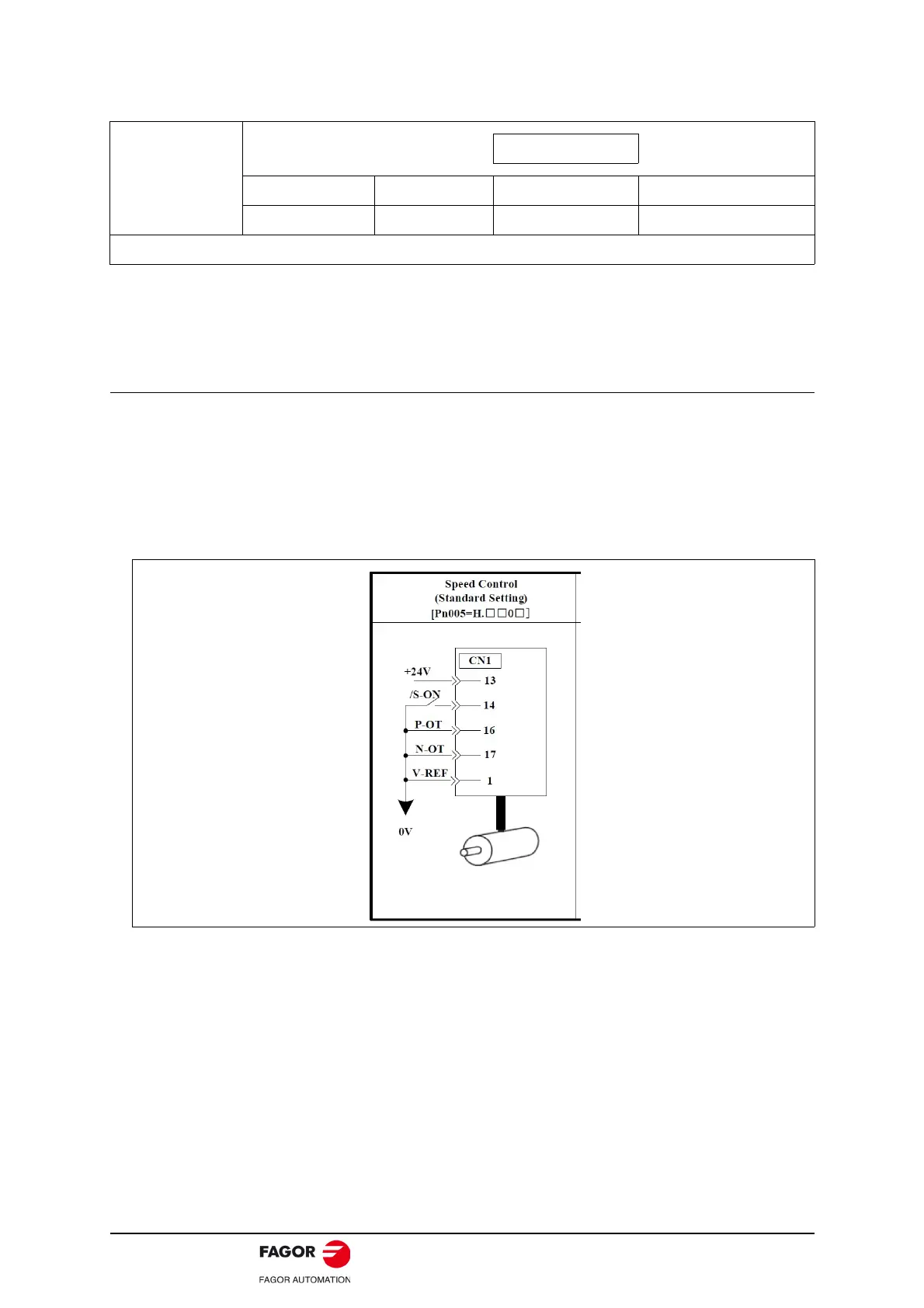

1. Servo ON Command from the Host.
The following circuits are required: External input signal circuit or equivalent.
Pn305
JOG Speed Speed
Setting Range Setting Unit Factory Setting Setting Validation
0 ~ 6000 rpm 500 immediately
Set the utility function Fn002 (JOG Mode Operation) to the reference value of servomotor speed.
