Digital Brushless AC Servo Drive system - Ref. 1809 BCSD-49/116

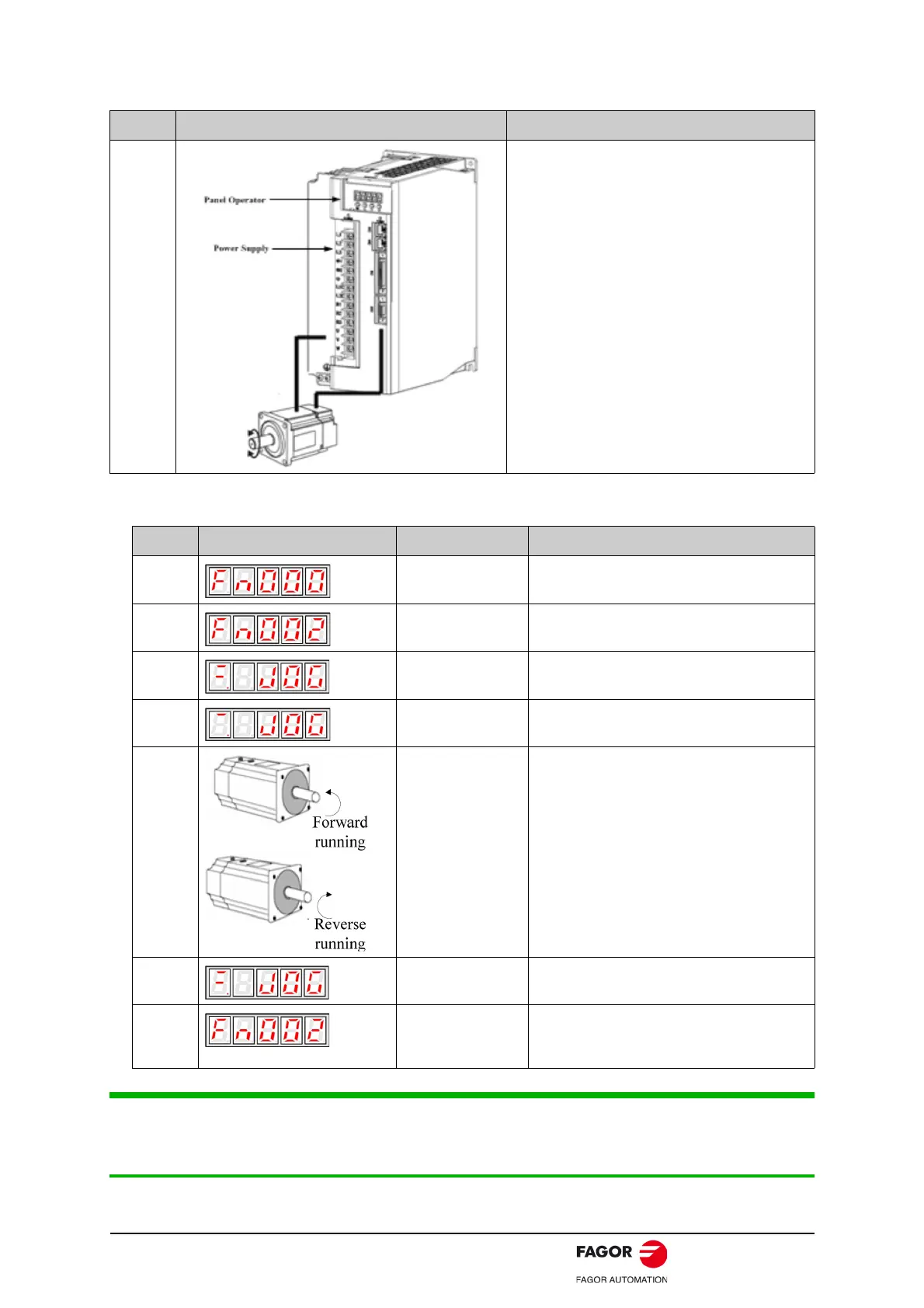

• JOG Mode Operation (Fn002).
Note:
The servomotor’s rotation direction depends on the setting of parameter Pn001.0 (Direction Selection).
The example above describes operation with Pn001.0 in the factory setting.
Step Description Check Method and Remarks
5
Use the panel operator to operate the servomotor
with utility function Fn002 (JOG Mode Operation).
Check that the servomotor rotates in the forward
direction by INC key, and reverse direction by
DEC key.
The operation is completed when the operation
is performed as described below and the alarm
display does not appear.
Complete the Fn002 (JOG Mode Operation) and
turn OFF the power.
For operation method of the panel operator, refer
to Chapter 5 Panel Operator
The servomotor speed can be changed using the
Pn305 (JOG Speed).
The factory setting for JOG speed is 500rpm.
Step Display after operation Panel operator Description
1
MODE key Press the MODE key to select the function
mode.
2
INC or DEC key Press the INC key or DEC key to select Fn002.
3
ENTER key Press the ENTER key, and the servomotor will
enter JOG operation mode.
4
MODE key Press the MODE key. This will turn ON the
power to the servomotor.
5
INC or DEC key The servomotor will run in forward direction
when INC key pressed or in reverse direction
when DEC key pressed. The servomotor will
operate as long as the key is pressed.
6
MODE key Press the MODE key. This will turn OFF the
power to the servomotor.
7
ENTER key Press the ENTER key to return to the Fn002
display of the utility function mode. Now, the
servodrive is servo OFF.
To Next Page
