Digital Brushless AC Servo Drive system - Ref. 1809 BCSD-35/116
2.2.4. Installation Method
When installing multiple servodrives side by side in a control panel, observe the following installation
method.
• Installation Orientation.
Install servodrive perpendicular to the wall so that the front panel (containing connectors) faces outward.
• Cooling.
Provide sufficient space around each servodrive to allow cooling by natural convection or fans.
• Installing side by side.

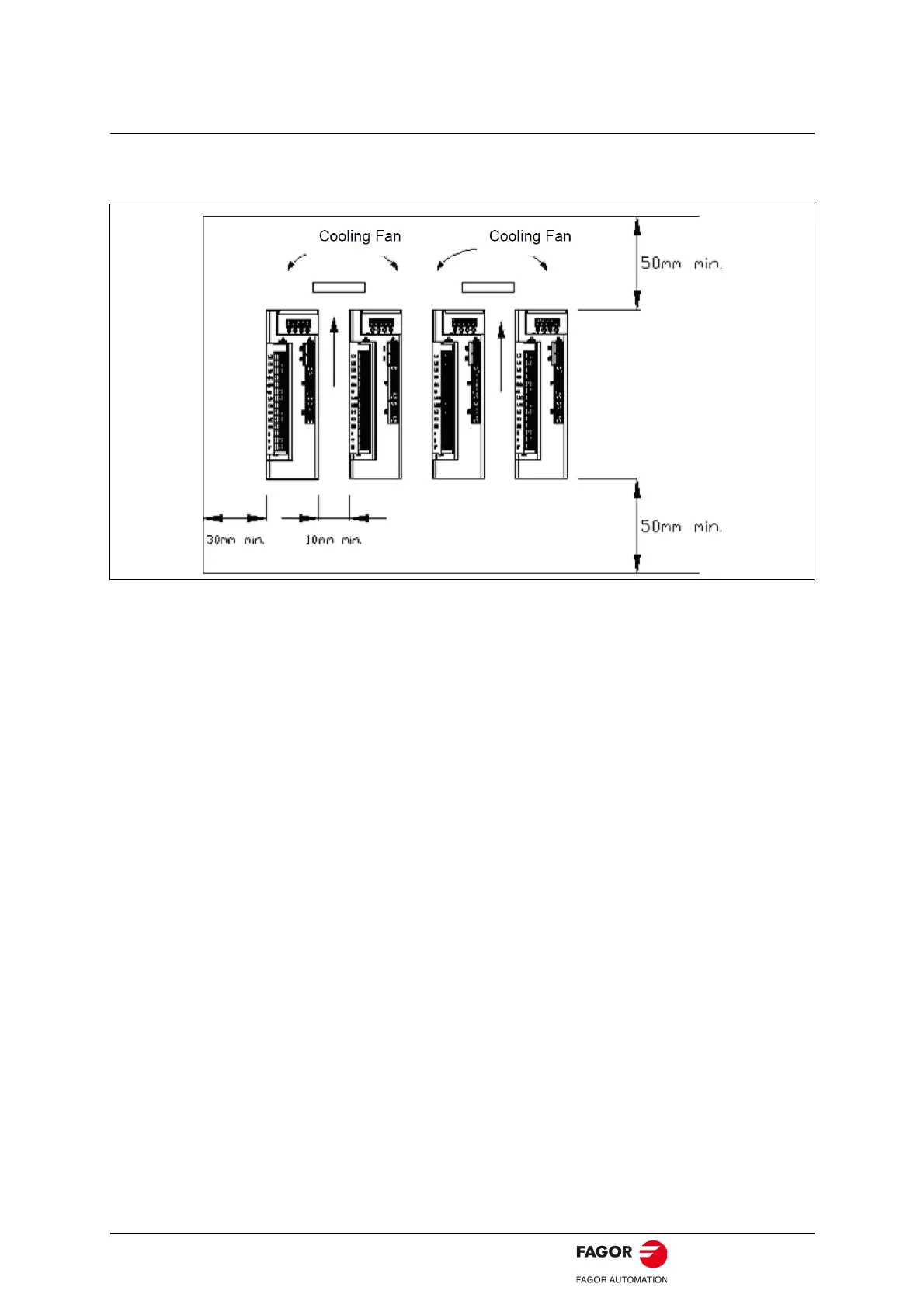

When installing servodrives side by side, provide at least 10 mm space between them and at least
50 mm space above and below them as shown in the figure above. Make sure that the temperature
inside the control panel is evenly, and prevent the temperature around each servodrive from increasing
excessively. Install cooling fans above the servodrives if required.
• Working conditions.
1. Temperature: 0 ~ 55 ºC.
2. Humidity: 90% RH or less.
3. Vibration: 4.9 m/s
2
or less.
4. Ambient temperature to ensure long-term reliability: 45 ºC or less.
