Digital Brushless AC Servo Drive system - Ref. 1809 BCSD-37/116

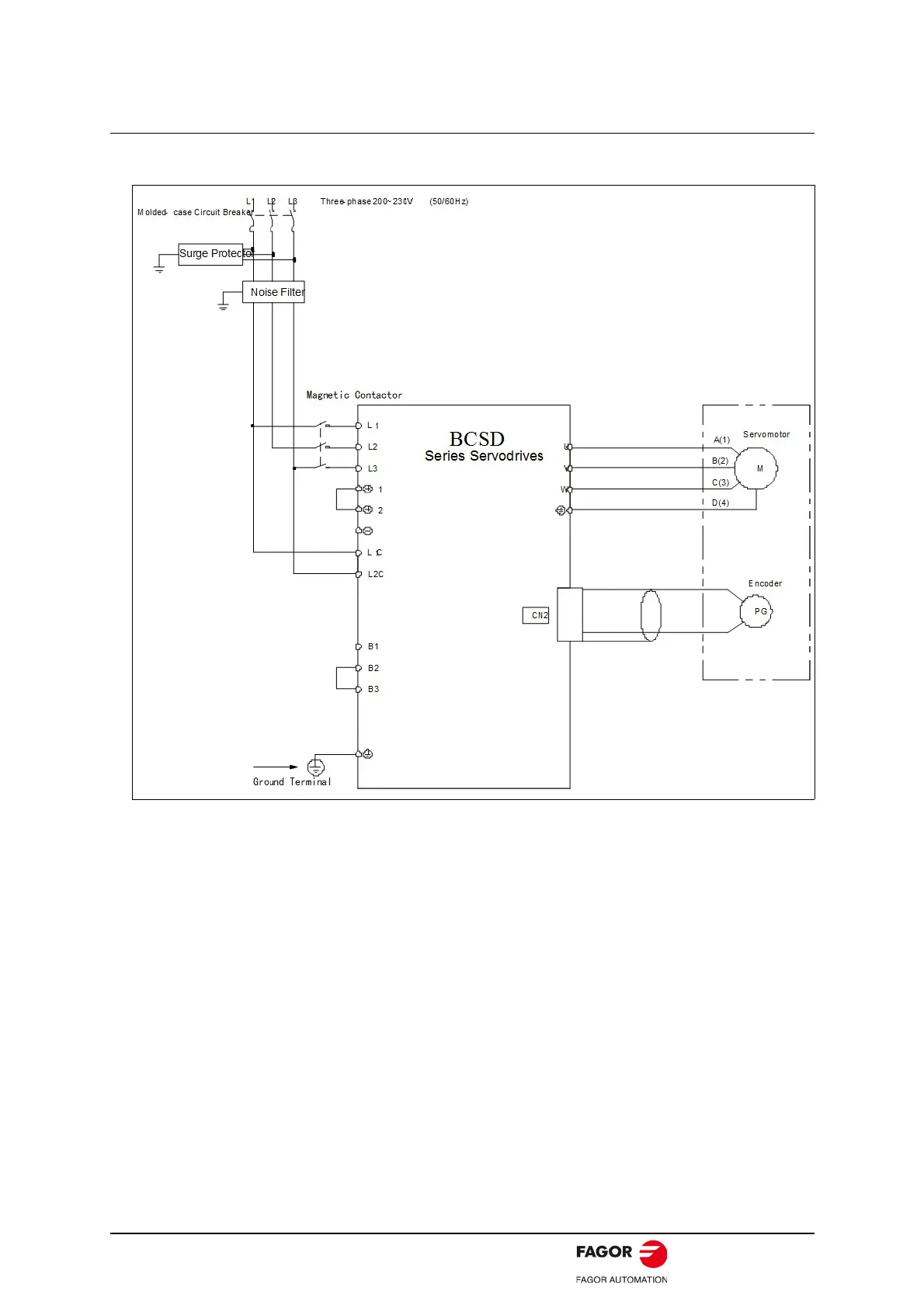

3.1.2. Typical Main Circuit Wiring Examples
• Three-phase 220V BCSD-08A~10A.
