BCSD-16/116 Digital Brushless AC Servo Drive system - Ref. 1809

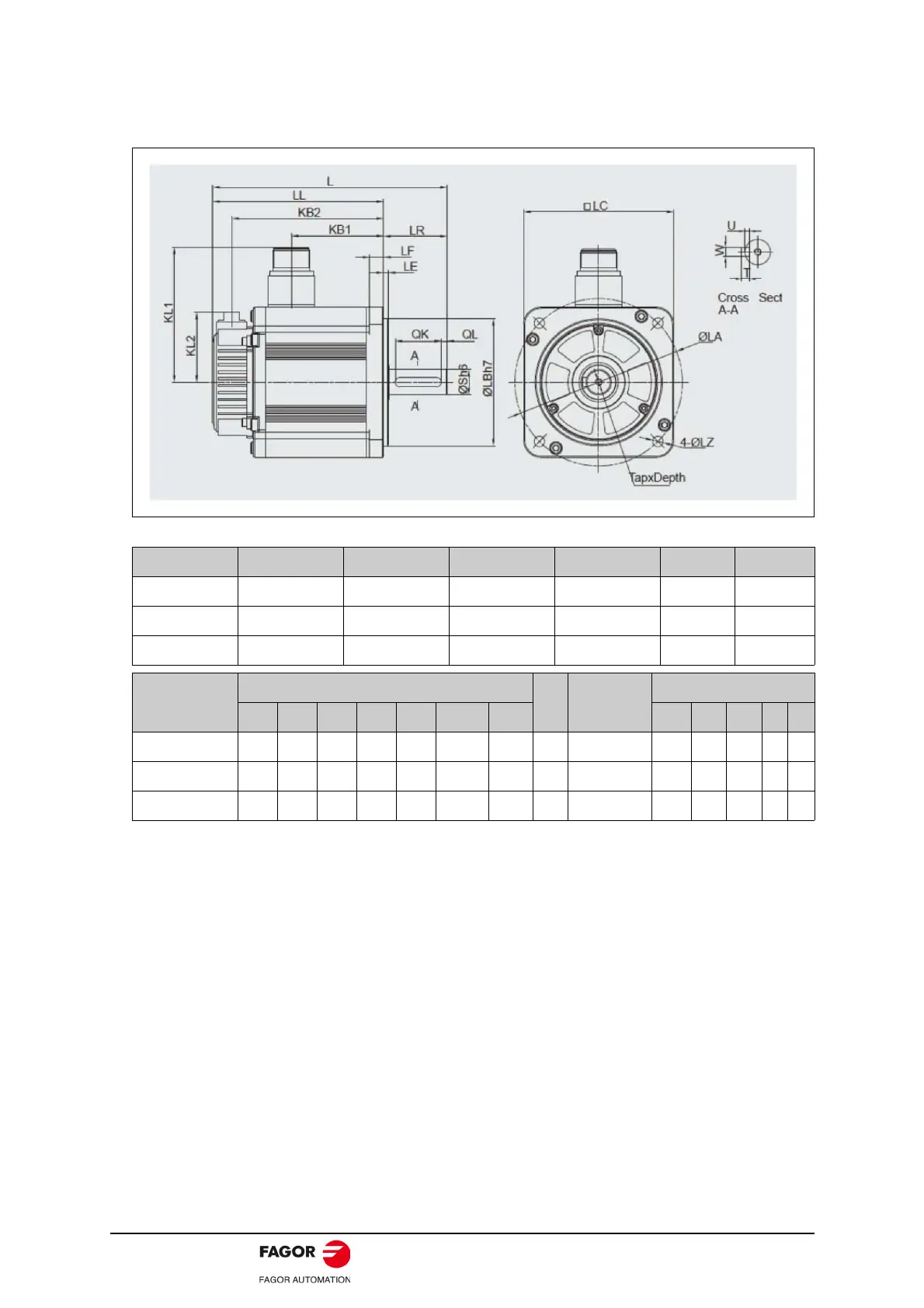

• Dimension of FBM-10/15/20DDB motors (Unit: mm).
Note: The values in parentheses are for servo motors with holding brakes.
Model FBM L LL KB1 KB2 KL1 KL2
10 DDB 203 (245.5) 148 (190.5) 80 (103.2) 131.5 (174) 117 60.5
15 DDB 225 (267.5) 170 (212.5) 102 (125.2) 153.5 (196) 117 60.5
20 DDB 247 (289.5) 192 (234.5) 124 (147.2) 175.5 (218) 117 60.5
Model FBM Dimension
S
Tap x
Depth
Key
LR LE LF LC LA LB LZ QK QL W T U
10 DDB 55 4 12 130 145 110 9 22 M6 x 20L 40 5 8 7 4
15 DDB 55 4 12 130 145 110 9 22 M6 x 20L 40 5 8 7 4
20 DDB 55 4 12 130 145 110 9 22 M6 x 20L 40 5 8 7 4
