BCSD-18/116 Digital Brushless AC Servo Drive system - Ref. 1809

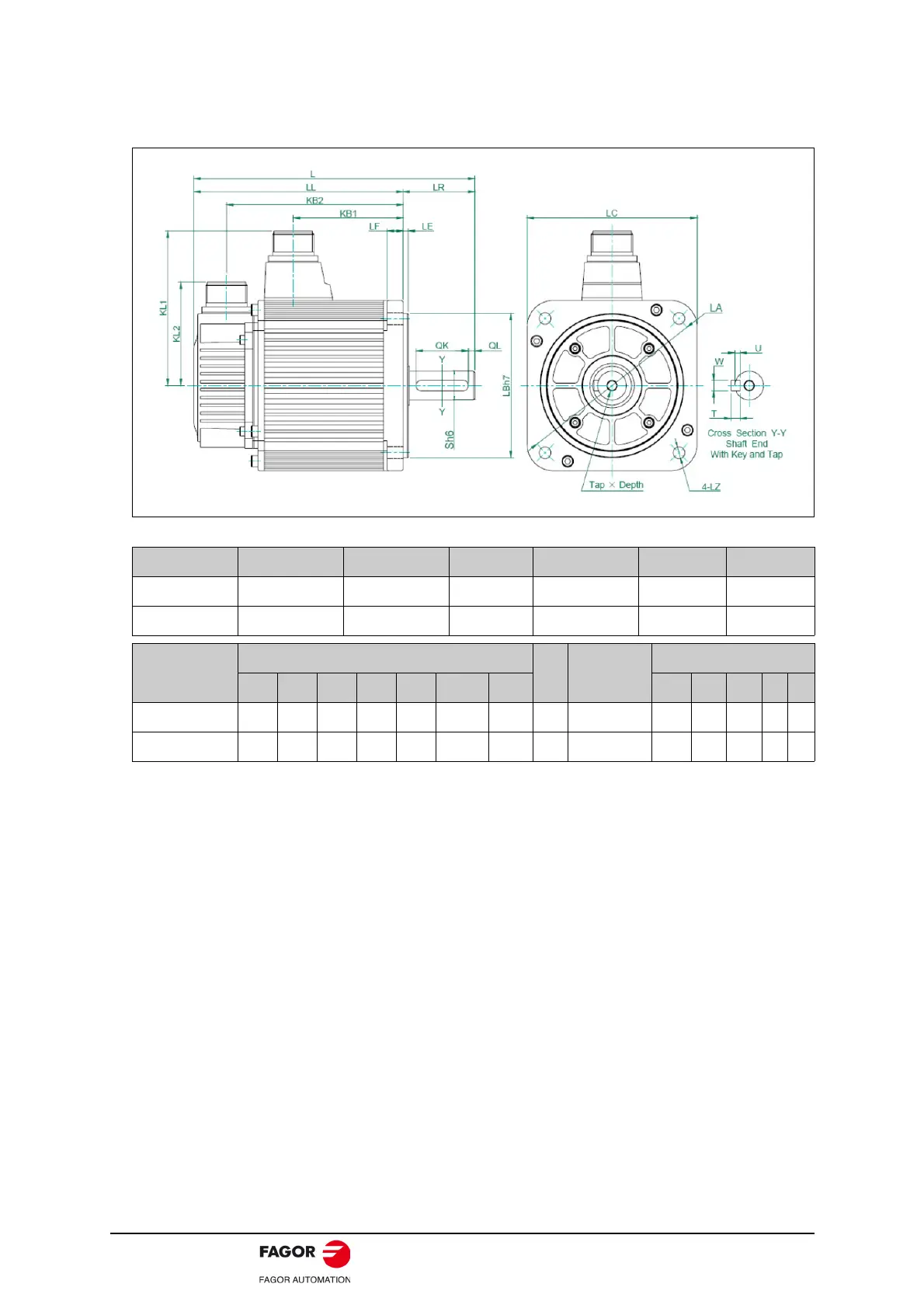

• Dimension of FBM-30/50DDA motors (Unit: mm).
Note: The values in parentheses are for servo motors with holding brakes.
Model FBM L LL KB1 KB2 KL1 KL2
30 DDA 307 (378) 228 (299) 143 203 (274) 140 79
50 DDA 357 (428) 278 (349) 183 253 (324) 140 79
Model FBM Flange Side
S
Tap x
Depth
Key
LR LE LF LC LA LB LZ QK QL W T U
30 DDA 79 3.2 18 180 200 114.3 13.5 35 M8 x 16L 55 6 10 8 5
50 DDA 79 3.2 18 180 200 114.3 13.5 35 M8 x 16L 55 6 10 8 5
