BCSD-68/116 Digital Brushless AC Servo Drive system - Ref. 1809
• Pulse Dividing Ratio Setting.
Pn200
PG Dividing Ratio Speed
Setting Range Setting Unit Factory Setting Setting Validation
16 ~ 16384 1 Pulse 16384 After restart
Set the number of pulses for PG output signals (PAO,/PAO,PBO,/PBO) externally from the servodrive.
Feedback pulses from the encoder per revolution are divided inside the servodrive by the number set in Pn200
before being output. (Set according to the system specifications of the machine or host controller.)
The setting range varies with the number of encoder pulses for the servomotor used.

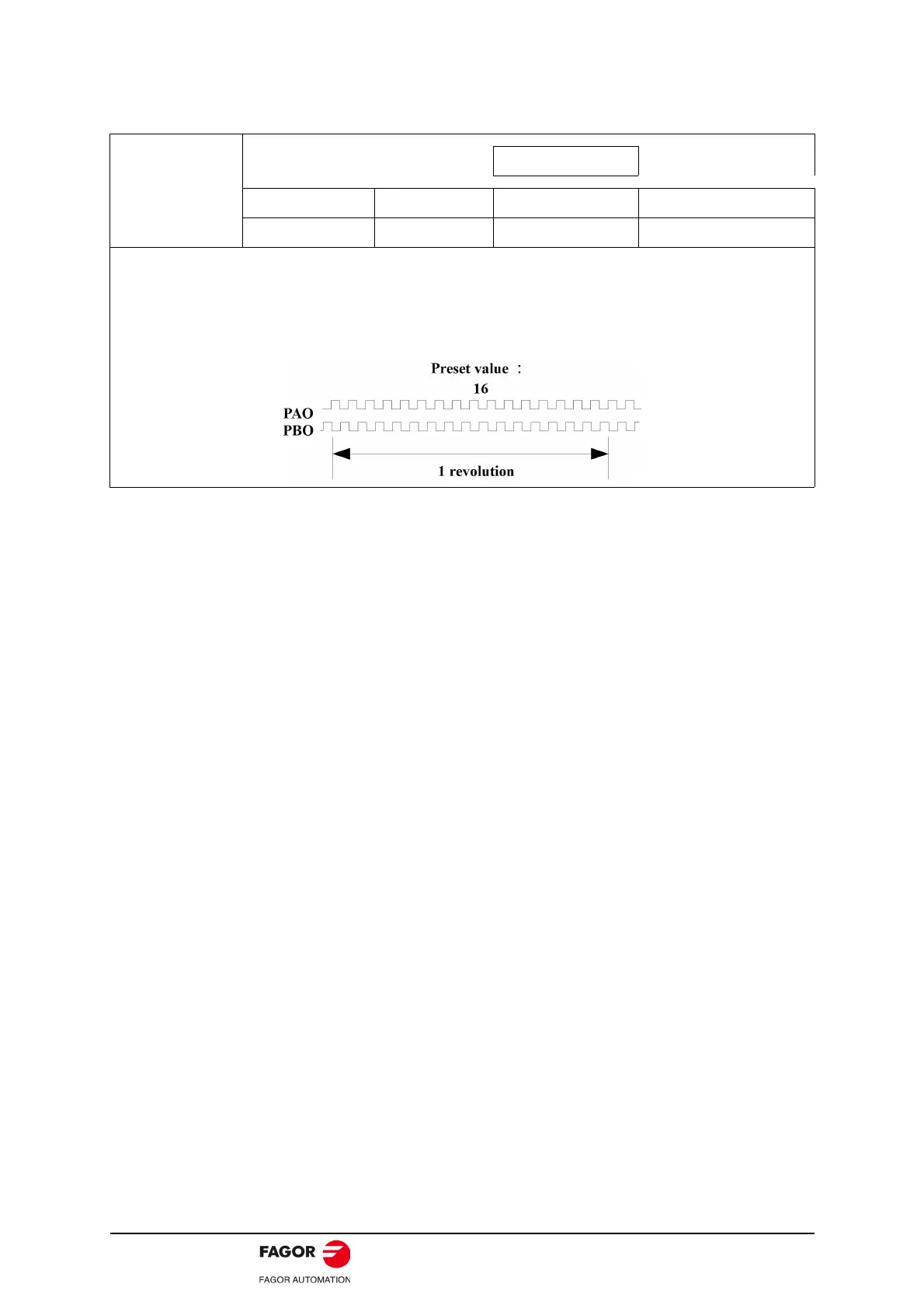

- Output Example
Pn200=16 (when 16 pulses are output per revolution)
To Next Page
