Printer Components: Centronics-Type Parallel Interface
The Card Printer is equipped with a standard 8-bit Centronics-type parallel interface port.
(Note: This communication port is the means through which the Printer receives data from
the computer. The Printer's parallel interface connector is a standard 36-pin Amp type with
two metal-wire retaining clips and is ECP (Extended Capabilities Port) compatible. It mates
with a standard, bi-directional PC to Printer parallel cable.)

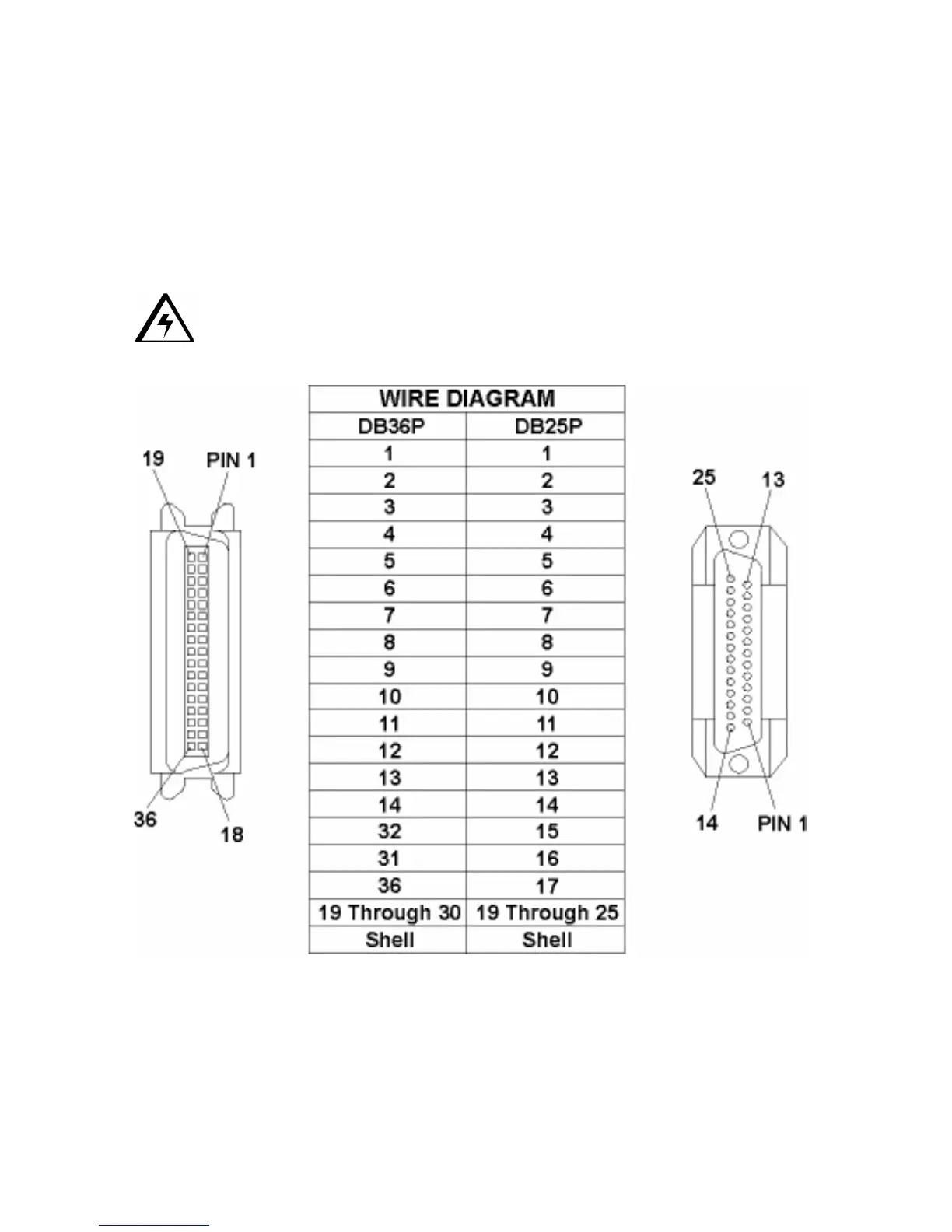

This section describes the pin assignments and signal specifications for this port.
Caution: Keep the interface cable to less than 6 feet in length.
Persona® C25 Card Printer User Guide (Rev. 4.0)
