Reviewing the Self Test Output Samples (RPI Potentiometer)

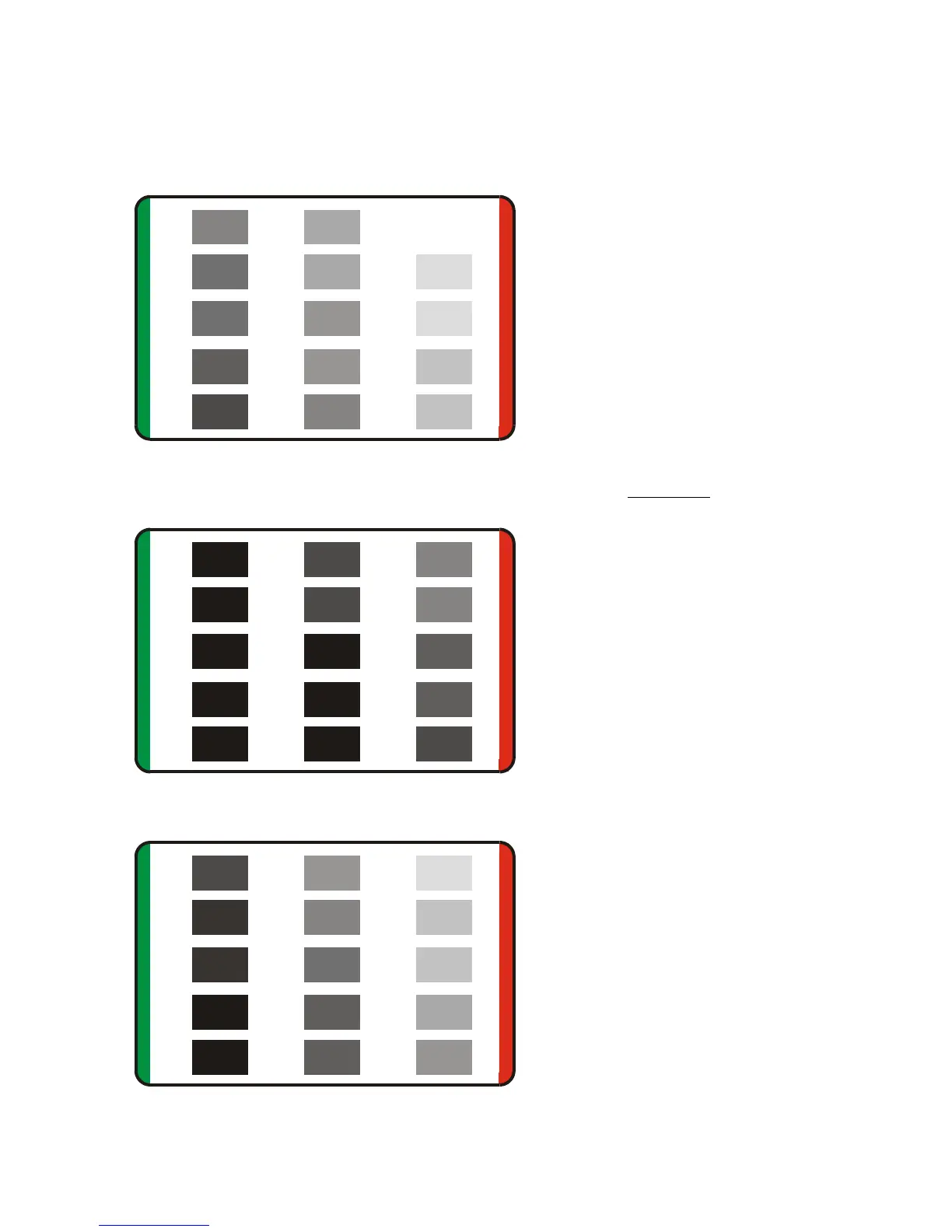

The output is too light, the last gray fill box does not appear. The RP1 potentiometer should
be turned Counter-Clockwise to increase the darkness level.
v
1
.
0
.
1
The output is too dark. The RP1 potentiometer should be turned
Clockwise to reduce
intensity.
v
1
.
0
.
1
The output is correct. The last gray fill intensity is barely visible.
v
1
.
0
.
1
