Maintenance - 2000h
4812164601_C.pdf2023-01-05

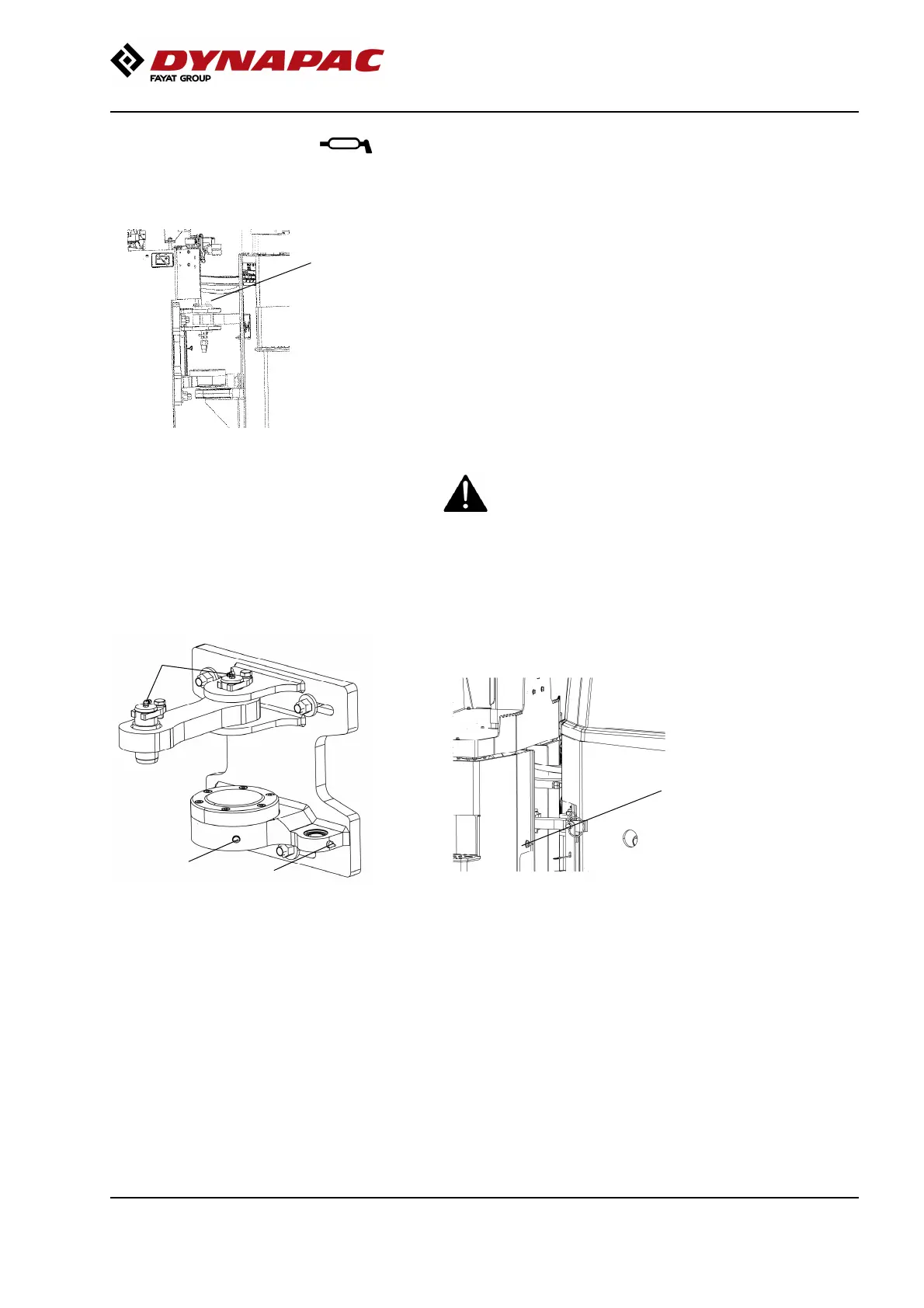

Steering cylinder and steering joint -
Lubrication
1
Fig. Articulation
(CC1100/C VI - CC1200/C VI)
1. Lubricant nipples
The machine must be in neutral (straight) when
lubricated. All five grease nipples (1) can now
be accessed.
Wipe the grease nipples (1). Grease each nipple with
five strokes of the hand-operated grease gun. Make
sure that grease penetrates into the bearing. If grease
does not penetrate the bearings, it may be necessary
to relieve the articulation joint with a jack while
repeating the greasing process.
Do not allow anyone to remain in the vicinity of the
steering joint when the engine is running. Danger
of crush injury when the steering is operated.
Activate the parking brake before lubricating.
Do not allow anyone to remain in the vicinity of the
steering joint when the engine is running. Danger
of crush injury when the steering is operated.
Activate the parking brake before lubricating.
Fig. Articulated joint
(CC1300/C VI - CC1400/C VI)
1. Lubricant nipples
1
1
1
Fig. Rear frame
1. Lubrication nipple
1
185
