Machine description
4812164601_C.pdf 2023-01-05
1
2

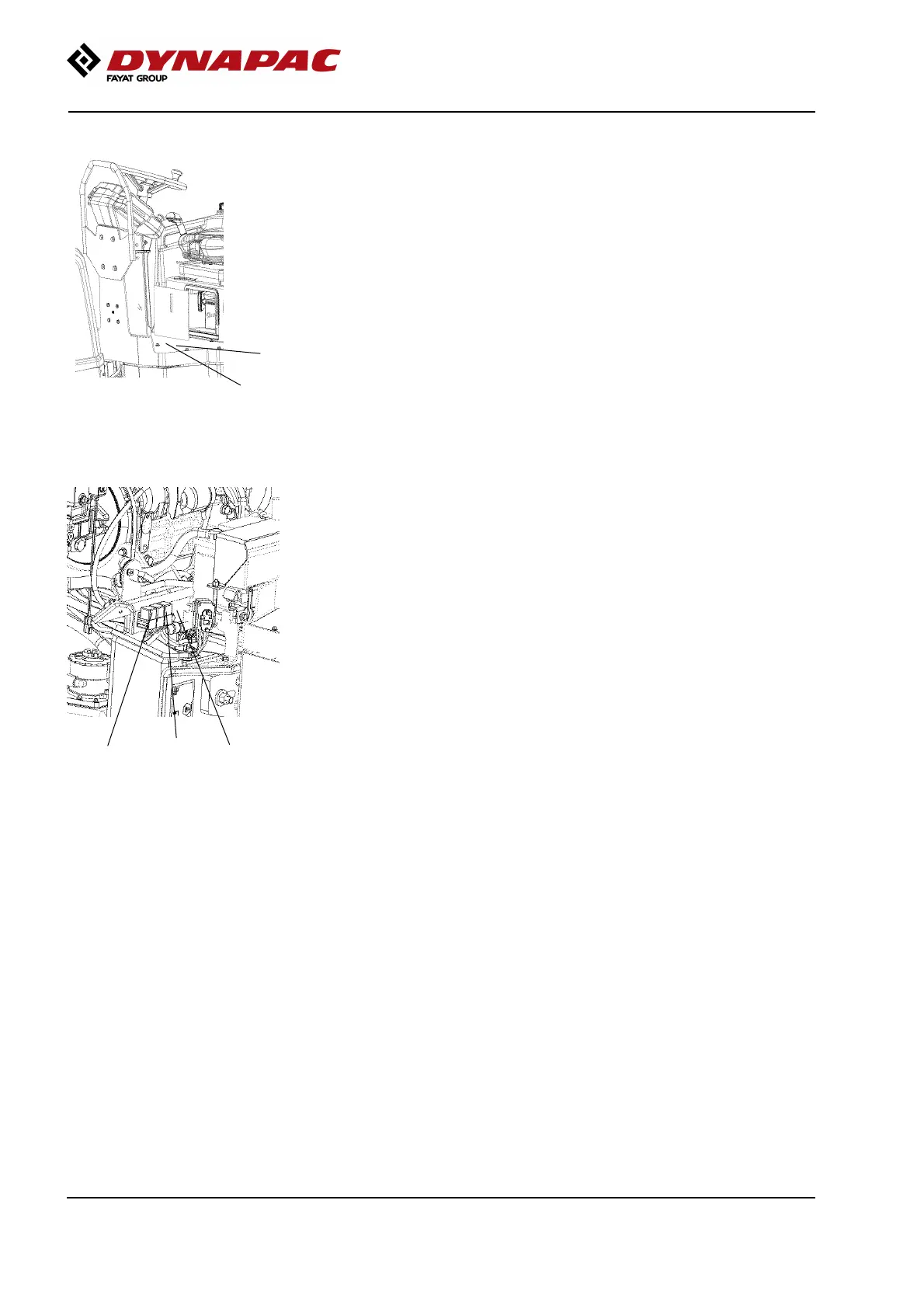

Fig. Operator's station
1. Control unit (ECU)
2. Floor plate
The control unit (ECU) (1) is located under the floor
plate (2) on the platform.
This control unit manages, among others, automatic
vibration control, automatic watering control
and interlock.
Relays on machine
1
2
3
Fig. Relays Engine compartment
(D1703 / V2203-M-E3B)
Engine compartment
(D1703 / V2203-M-E3B (Stage IIIA)
1. K1 Starting1. K1 Starting
2. K3 Fuel solenoid2. K3 Fuel solenoid
3. K5 Glowing / Preheater3. K5 Glowing / Preheater
