Machine description
4812164601_C.pdf 2023-01-05
Speed adjustment and vibration frequency
(CC1100/C VI - CC1400/C VI
with single amplitude)

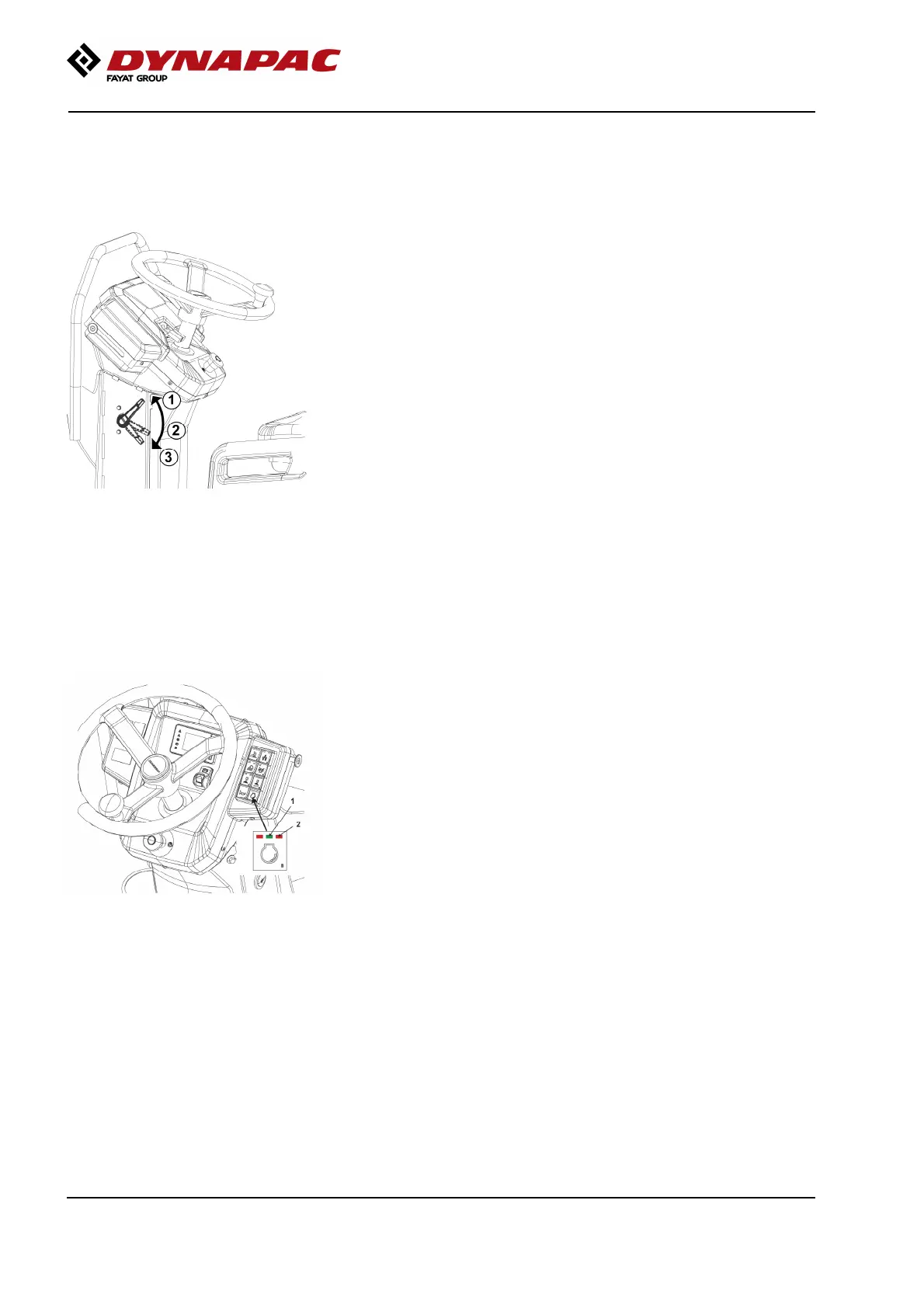

Fig. Mechanical speed control
1. Control in idle mode
2. Control in center position / ECO
3. Control in lowermost position
Mechanical speed control
If the speed control is in the center position / ECO (2),
both the engine speed and vibration frequency are low.
If the speed control is in the lowermost
position / ECO (3), both the engine speed
and vibration frequency are high.
Fig. Electronic speed control
1. LED lamp for
Low speed / frequency (ECO)
2. LED lamp for High speed / frequency
1
2
Electronic speed control
If the LED lamp in the center is lit green (ECO),
Low engine speed and low vibration frequency
are selected.
If the LED lamp to the right is lit red, High engine
speed and high frequency are selected.
48
