Driving
Operating the roller
12
32
2
6
3
1

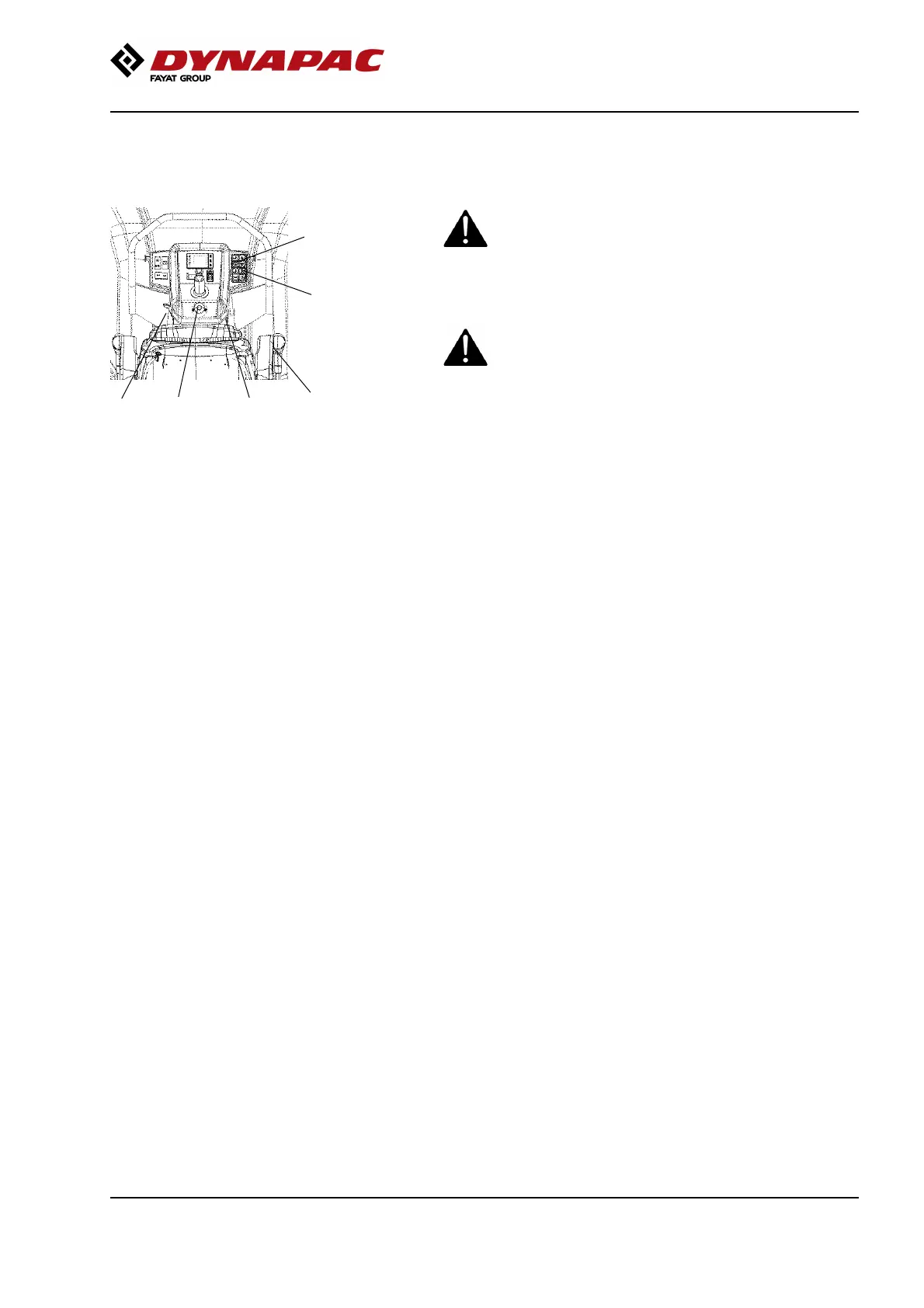

Fig. Instrument panel
1. Ignition key
2. Throttle control
(D1703 / V2203-M-E3B)
3. Emergency stop
6. Forward/Reverse lever
32. Engine speed selector
(D1803 / V2403-CR-E4B /V2403-CR-E5B)
Under no circumstances is the machine to be
operated from the ground. The operator must be
seated inside the machine during all operation.
Under no circumstances is the machine to be
operated from the ground. The operator must be
seated inside the machine during all operation.
Make sure that the area in front of and behind the
roller is clear.
Make sure that the area in front of and behind the
roller is clear.
Release the parking brake and check that the parking
brake lamp goes off.
D1703 / V2203-M-E3B (Stage IIIA)
Turn the throttle control (2) in backward position.
D1803 / V2403-CR-E4B (Tier 4f) /
V2403-CR-E5B (Stage V)
Press the LED button (32) so it is
in LOW mode (1 lamp lit).
Check that the steering is working correctly by turning
the steering wheel once to the right and once to the
left while the roller is stationary.
When compacting asphalt, remember to enable the
sprinkler system (12).
