D1803 / V2403-CR-E4B (Tier 4f) /
V2403-CR-E5B (Stage V)
Make sure that the LED button (32) is set to LOW
mode (1 lamp lit).
Warm up the engine at idling speed for a few minutes,
although longer if ambient temperature
is below +10°C (50°F).
If the parking brake is not activated and the
forward/reverse lever is in neutral, the parking
brake and jump start symbols will be
lit on the display.
The machine cannot be started.
If the parking brake is not activated and the
forward/reverse lever is in neutral, the parking
brake and jump start symbols will be
lit on the display.
The machine cannot be started.

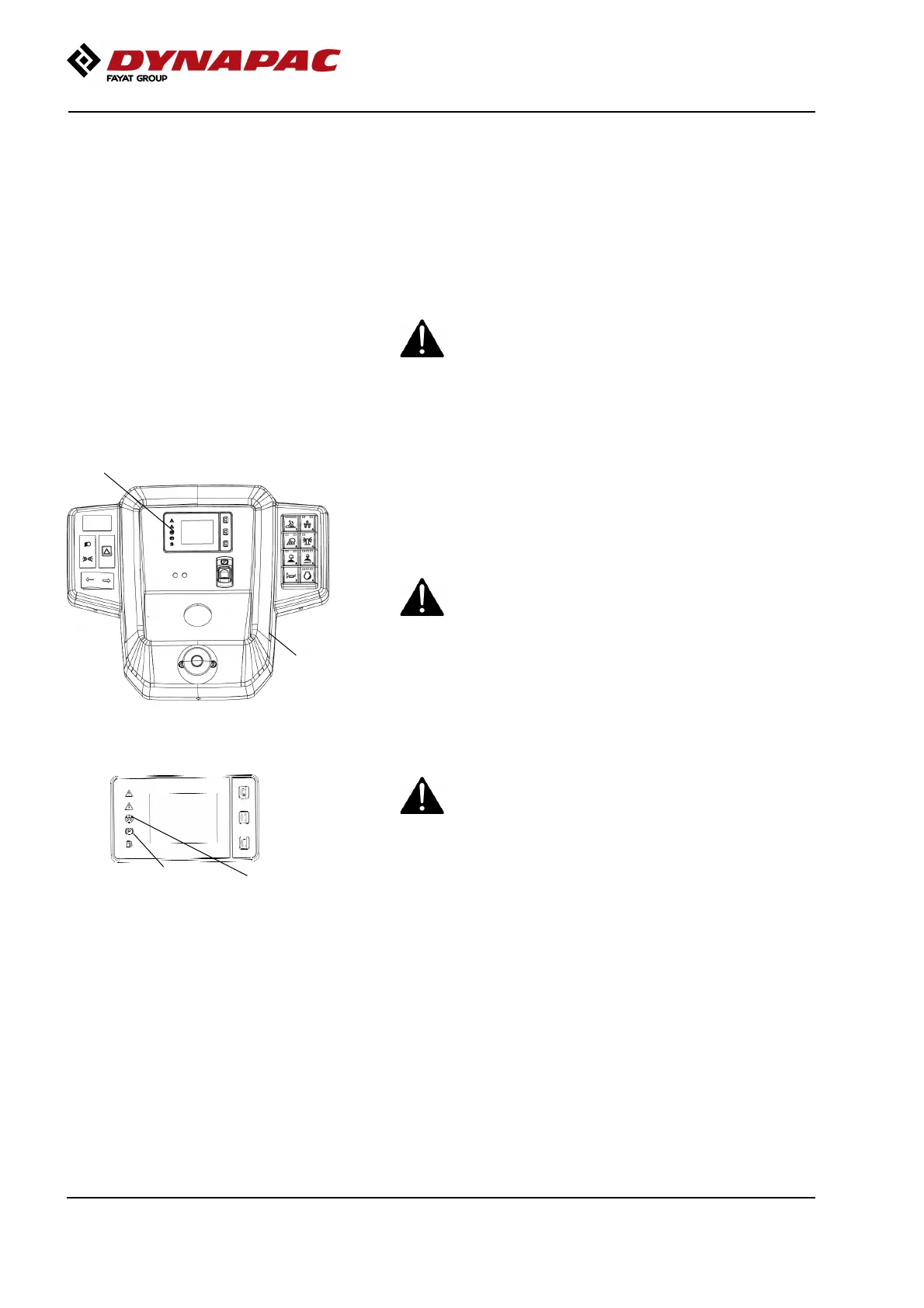

Fig. Instrument panel
1. Ignition key
29. Glow lamp
1
29
Check while warming up the engine that no warning
lamps are lit.
The parking brake lamp (25) will remain on for as long
as the parking brake switch is activated.
When starting and driving a machine that is cold,
remember that the hydraulic fluid is also cold and
that braking distances can be longer than normal
until the machine reaches the working temperature.
When starting and driving a machine that is cold,
remember that the hydraulic fluid is also cold and
that braking distances can be longer than normal
until the machine reaches the working temperature.
Fig. Control panel
25. Parking brake lamp
29. Glow lamp
25
29
Ensure that there is good ventilation
(air extraction) if the engine is run indoors.
Risk of carbon monoxide poisoning.
Ensure that there is good ventilation
(air extraction) if the engine is run indoors.
Risk of carbon monoxide poisoning.
74
