Fayat DYNAPAC CC1400C - Dimensions, Side View (CC1100 C VI - CC1200 C VI)

Technical specifications
4812164601_C.pdf 2023-01-05

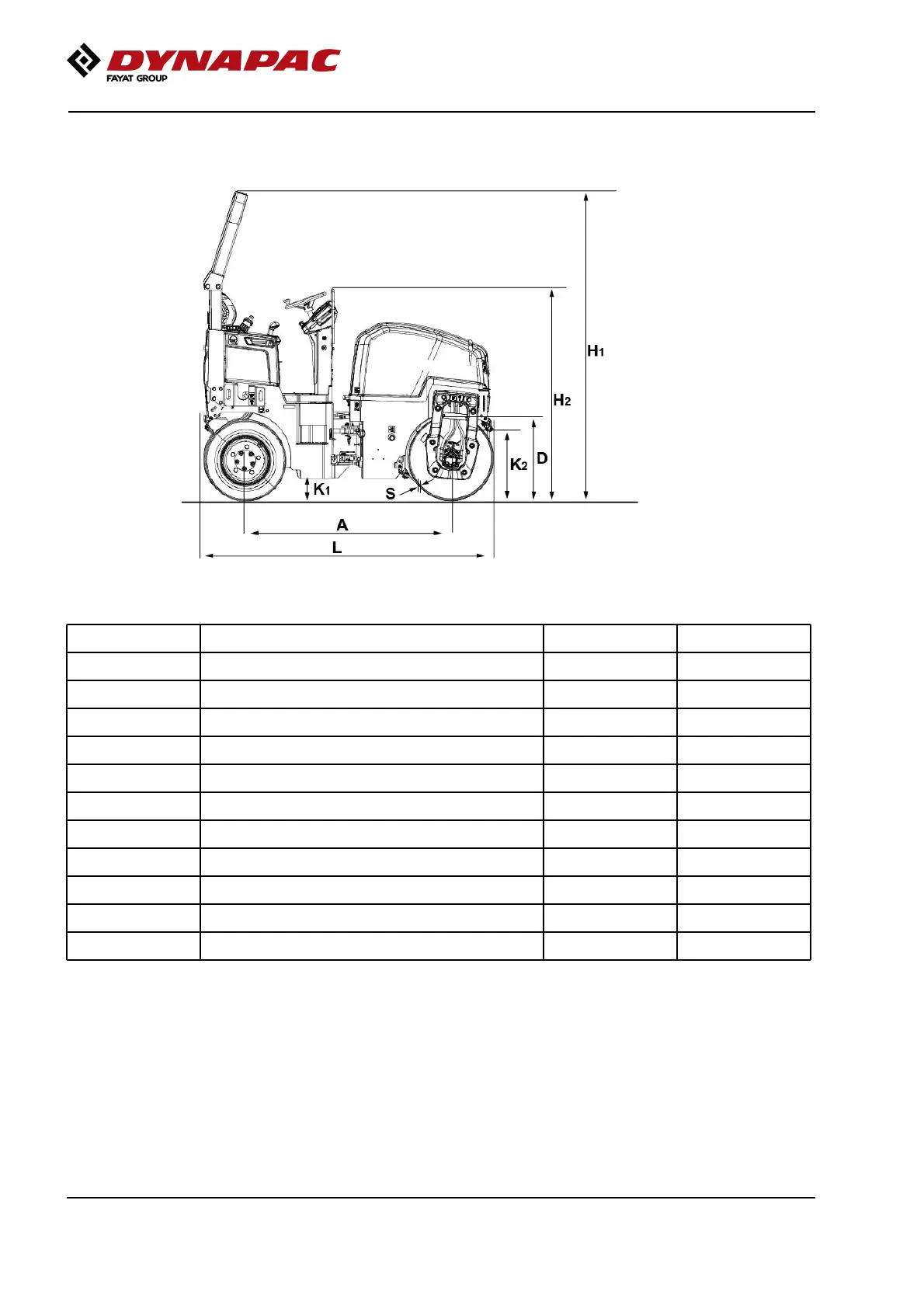

Dimensions, side view
(CC1100C VI - CC1200C VI)
Dimensions mm inDimensions mm in
A Wheel base 1700 67A Wheel base 1700 67
D Diameter, drum 700 27D Diameter, drum 700 27
H
1
Height, with ROPS 2542 100H
1
Height, with ROPS 2542 100
H
2
Height, without ROPS 1744 68.5H
2
Height, without ROPS 1744 68.5
K
1
180 7K
1
180 7
K
2
550 22K
2
550 22
L Length 2375 93.5L Length 2375 93.5
Length, with chip spreader 3220 127Length, with chip spreader 3220 127
S Thickness, drum amplitude, NominalS Thickness, drum amplitude, Nominal
CC1100C VI 12 0.47CC1100C VI 12 0.47
CC1200C VI 13 0.51CC1200C VI 13 0.51
