Machine description
4812164601_C.pdf2023-01-05

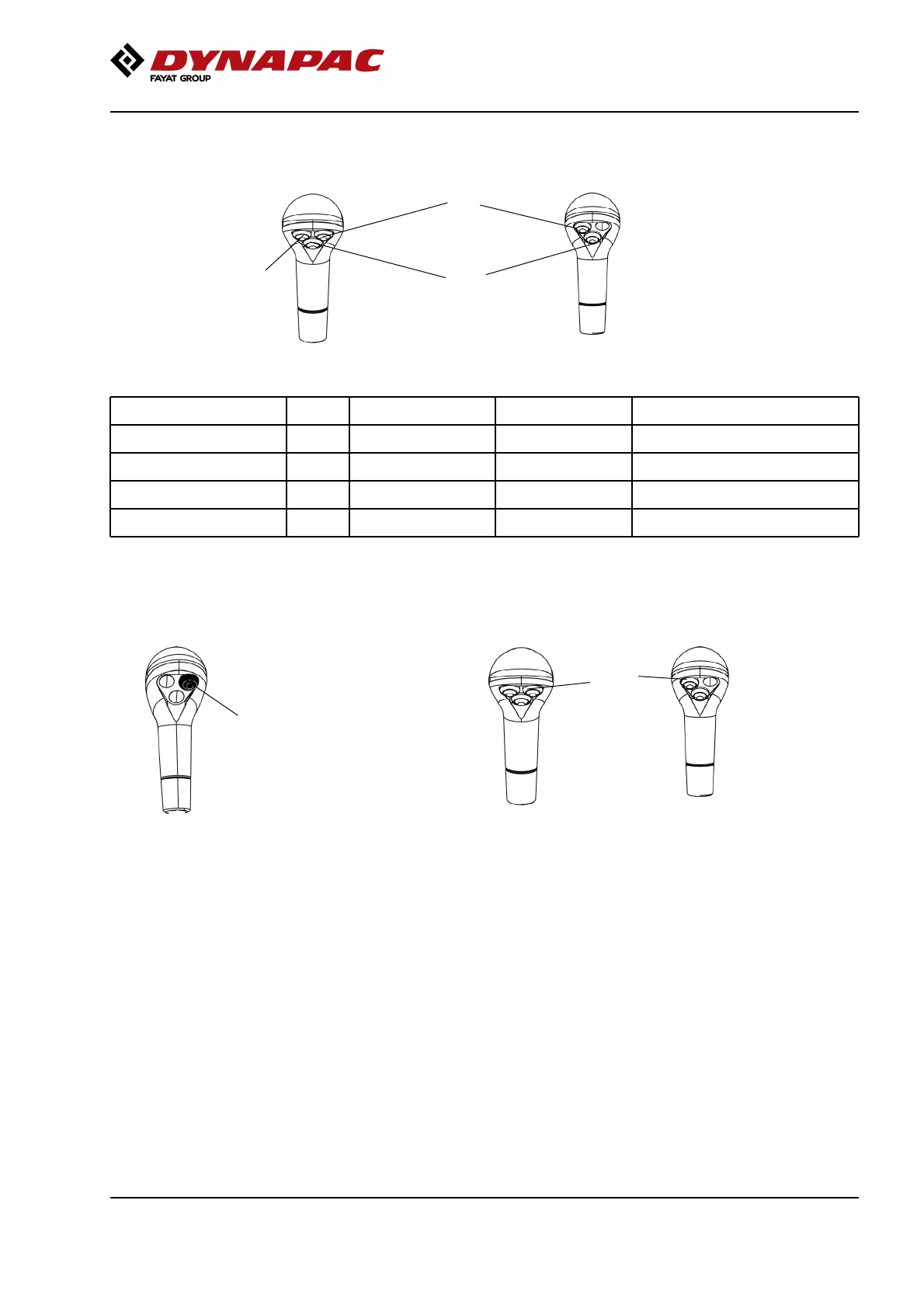

Function description, buttons on Forward /
Reverse lever
Mode / Button LED Button 1 Button 2 Button 3Mode / Button LED Button 1 Button 2 Button 3
Transport mode
0
None None Edge cutter, upTransport mode
0
None None Edge cutter, up
Working mode
1
Vibration, front Vibration, rear Edge cutter, upWorking mode
1
Vibration, front Vibration, rear Edge cutter, up
Edge cutter mode
2
Vibration, front Edge cutter, down Edge cutter, upEdge cutter mode
2
Vibration, front Edge cutter, down Edge cutter, up
Spreader mode
3
Vibration, front Spreader Edge cutter, upSpreader mode
3
Vibration, front Spreader Edge cutter, up
Right lever (RH)
Left lever (LH)
2
3
1
Machine with dual controls (option).
Fig. Double forward/reverse lever
1. Vibration on/off
Standard equipped machine.
1
Fig. Forward/Reverse lever right
1. Vibration on/off
1
47
