Machine description
4812164601_C.pdf2023-01-05
Fuses at battery master disconnect switch
The figure shows the different positions of the fuses in
the engine compartment.
The table below gives fuse amperage and function.
All fuses are flat pin fuses.

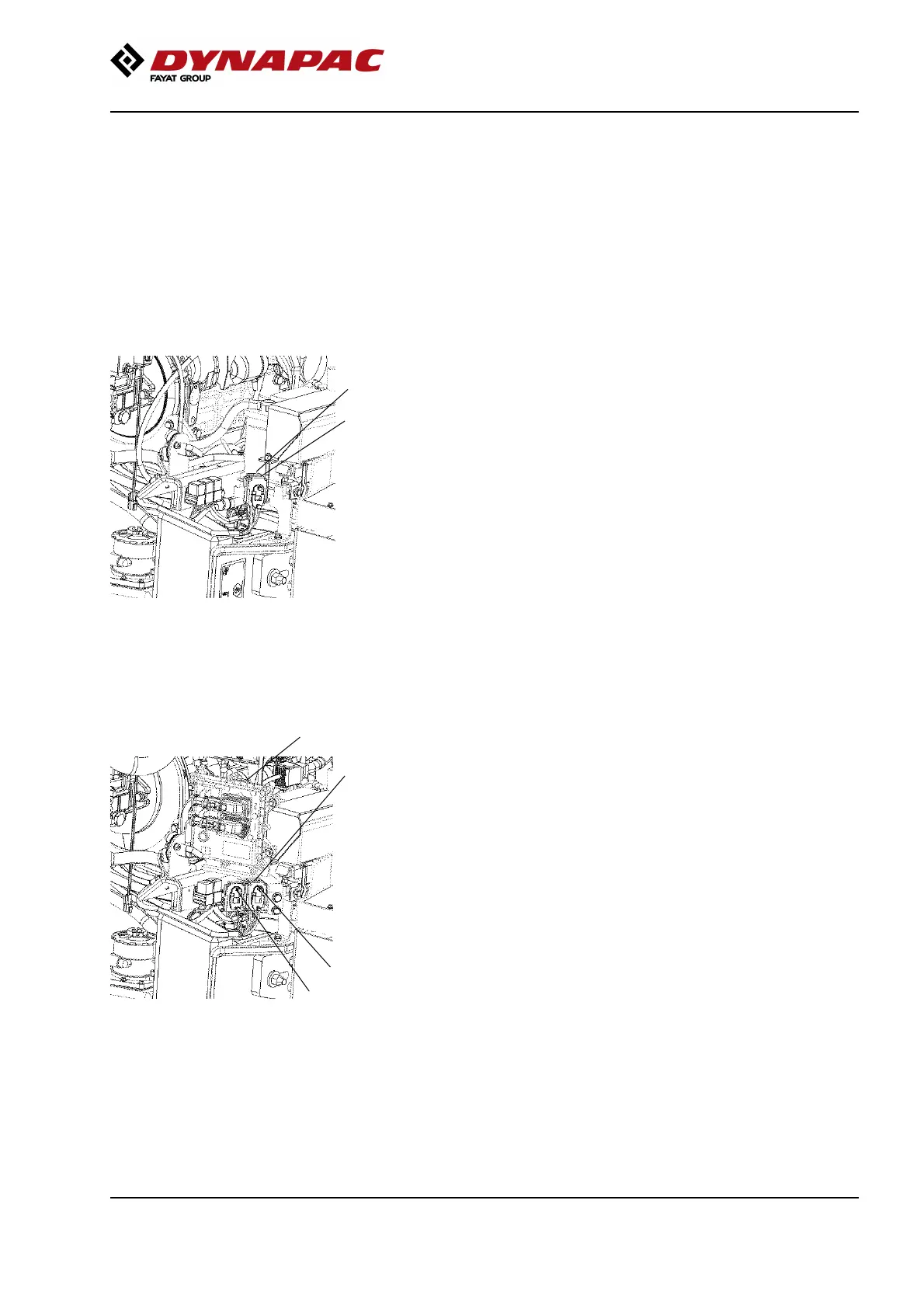

Fig. Battery disconnector and fuses
(D1703 / V2203-M-E3B)
1
2
D1703 / V2203-M-E3B (Stage IIIA)
1. F8 Main fuse 40A1. F8 Main fuse 40A
2. F14 Glowing, Start relay, Fuel
solenoid
50A2. F14 Glowing, Start relay, Fuel
solenoid
50A
3
2
1
4
Fig. Master switch and fuses (D1803 /
V2403-CR-E4B / V2403-CR-E5B)
D1803 / V2403-CR-E4B (Tier 4f) /
V2403-CR-E5B (Stage V)
1 F8 Main fuse 40A1 F8 Main fuse 40A
2 F13 Engine ECU 50A2 F13 Engine ECU 50A
3 F14 Starting 50A3 F14 Starting 50A
4 F20 Glowing 50A4 F20 Glowing 50A
63
