Working mode - Edge cutter
6

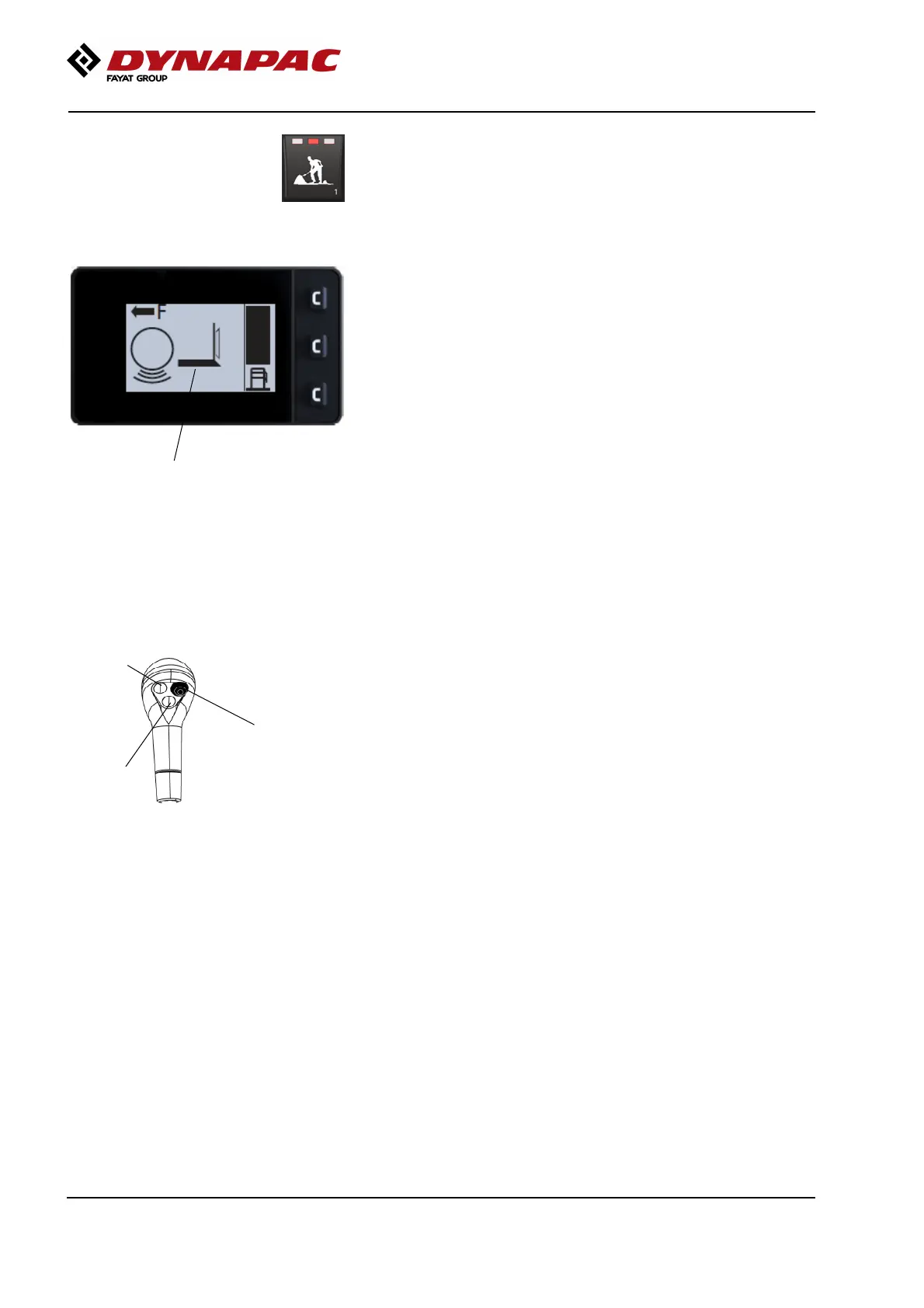

Fig. Working mode - Edge cutter
The different working modes are selected with the help
of the working mode button on the panel.
In Working mode, Edge cutter a symbol is shown
for the drum (front drum) and the symbol
for the edge cutter (6).
Edge cutter maneuvering can only take place when
high amplitude is selected and with the parking brake
disabled. The round parts below the drum indicated
the selected amplitude.
The edge cutter is maneuvered upward with button 3
on the control level. Provided that the parking brake is
disabled maneuvering upward can always take place,
irrespective of the selected mode on the membrane
panel’s working mode button.
Fig. Forward/Reverse lever right
1. Vibration, front drum (on/off)
2. Edge cutter, down
3. Edge cutter, up
1
3
Button function, Working mode, Edge cutter
2
Maneuvering downward with button 2 on the control
lever can only take place when Working mode -
Edge cutter is selected and the parking brake is
disabled.
