Fayat DYNAPAC CC1400C - Dimensions, Top View (CC1300 C VI - CC1400 C VI)

Technical specifications
4812164601_C.pdf2023-01-05

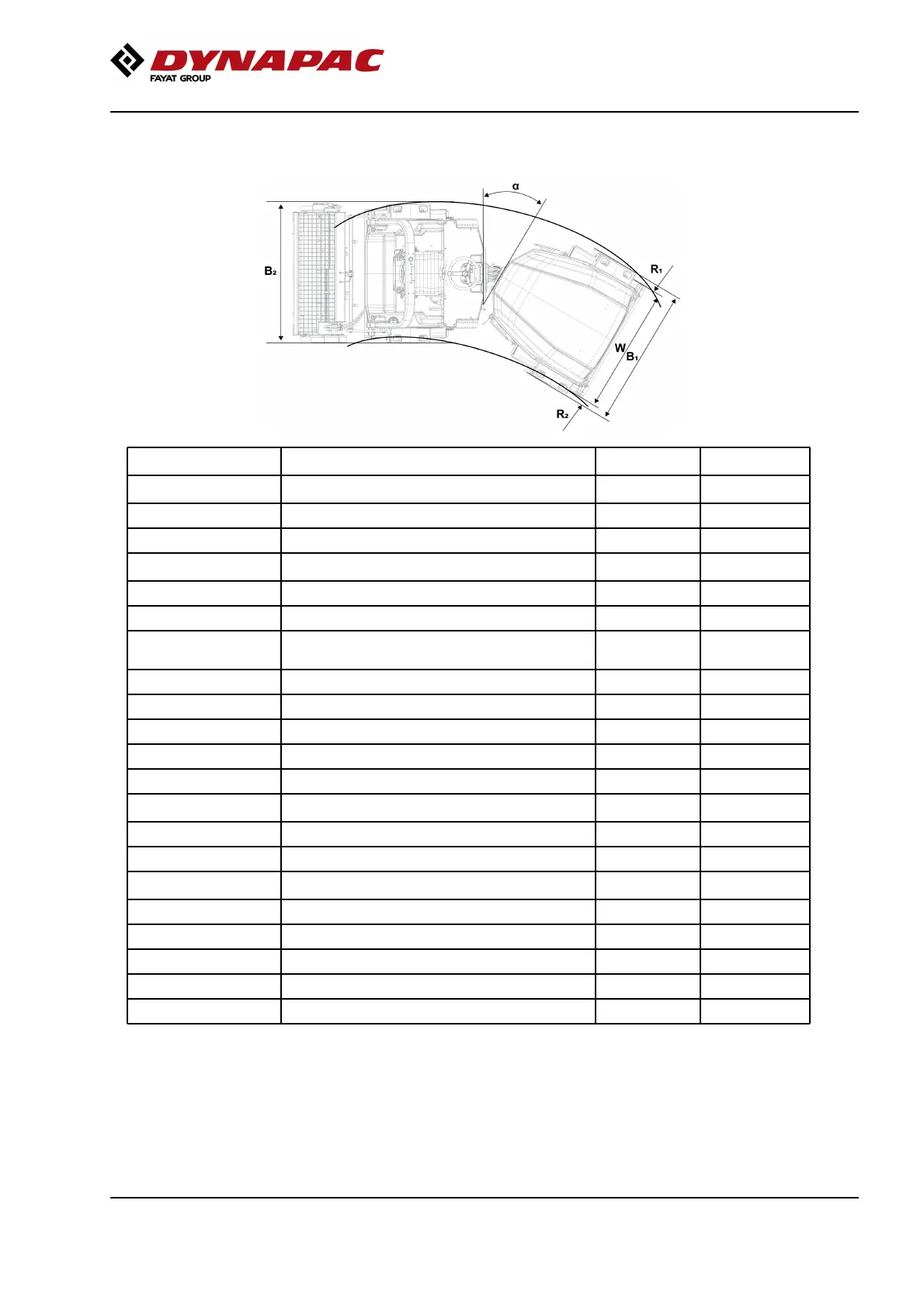

Dimensions, top view
(CC1300C VI - CC1400C VI)
Dimensions mm inDimensions mm in
B Machine widthB Machine width
CC1300C VI 1425 56CC1300C VI 1425 56
CC1400C VI 1505 59CC1400C VI 1505 59
B (without ROPS) Machine widthB (without ROPS) Machine width
CC1300C VI 1510 59.4CC1300C VI 1510 59.4
CC1400C VI 1510 59.4CC1400C VI 1510 59.4
B (with double edge
cutter)
Machine widthB (with double edge
cutter)
Machine width
CC1300C VI 1425 56CC1300C VI 1425 56
CC1400C VI 1505 59CC1400C VI 1505 59
R
1
Turning radius, outerR
1
Turning radius, outer
CC1300C VI 4330 170CC1300C VI 4330 170
CC1400C VI 4370 172CC1400C VI 4370 172
R
2
Turning radius, innerR
2
Turning radius, inner
CC1300C VI 3030 119CC1300C VI 3030 119
CC1400C VI 2990 118CC1400C VI 2990 118
W Drum widthW Drum width
CC1300C VI 1300 51CC1300C VI 1300 51
CC1400C VI 1380 54CC1400C VI 1380 54
α Steering angleα Steering angle
CC1300C VI ±41°CC1300C VI ±41°
CC1400C VI ±43°CC1400C VI ±43°
