55
OPERATION

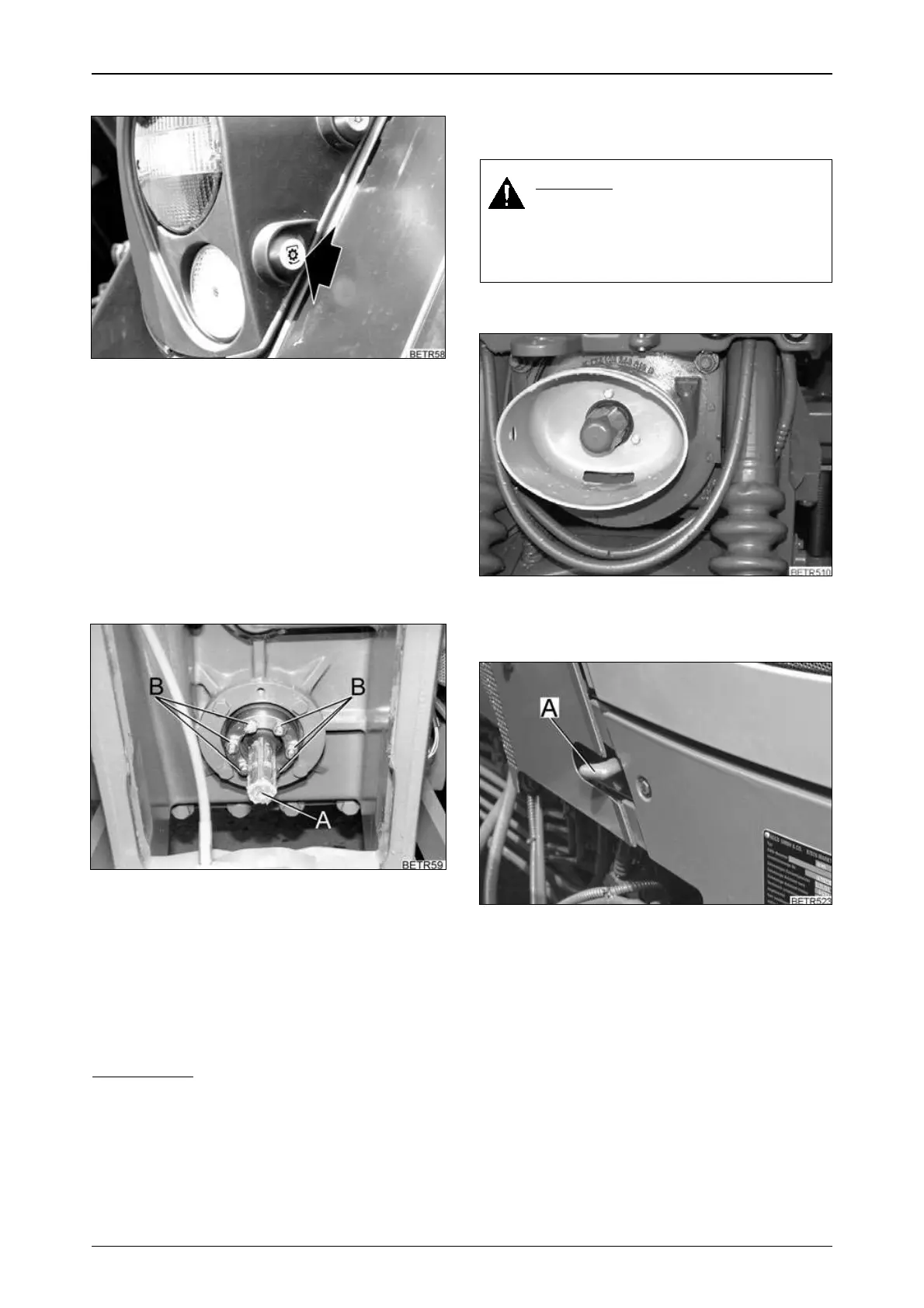

External operation
Operation_Pic_number:1
● Press button (arrowed) on the right or left of
the rear lamp.
Text-module
Safety lock
The PTO rotates only as long as the button (ar-
rowed) is pressed.
If the button is kept pressed until red light in the
button comes on, the PTO shaft remains enga-
ged.
Flange PTO shaft
Operation_Pic_number:1
*Flanged shaft 1 3/8 21-part involute spline.
Flange PTO shaft 1 3/4' 6-part splined profile.
Flange PTO shaft 1 3/4 20-part involute profile.
*Flange PTO shaft 1 3/8' 6-part splined profile.
* Only for implements with a power requirement
of 103 kW/140 HP max.
IMPORTANT:
When flanged shaft (A) is changed, tighten
hexagon bolts (B) at a torque of 69 Nm.
Fig.94
Fig.95
10.3 Front PTO
Text-module
(optional).
PTO shaft protection sleeve
Operation_Pic_number:1
Season selection
Operation_Pic_number:1
Turn off the engine.
Engage season selector with lever (A).
DANGER:
After operating the front PTO, switch
off the season selection and put the
protective sleeve back on the PTO
stub shaft.
Fig.96
Fig.97
