FENDT 926 Vario User Manual

98
OPERATION

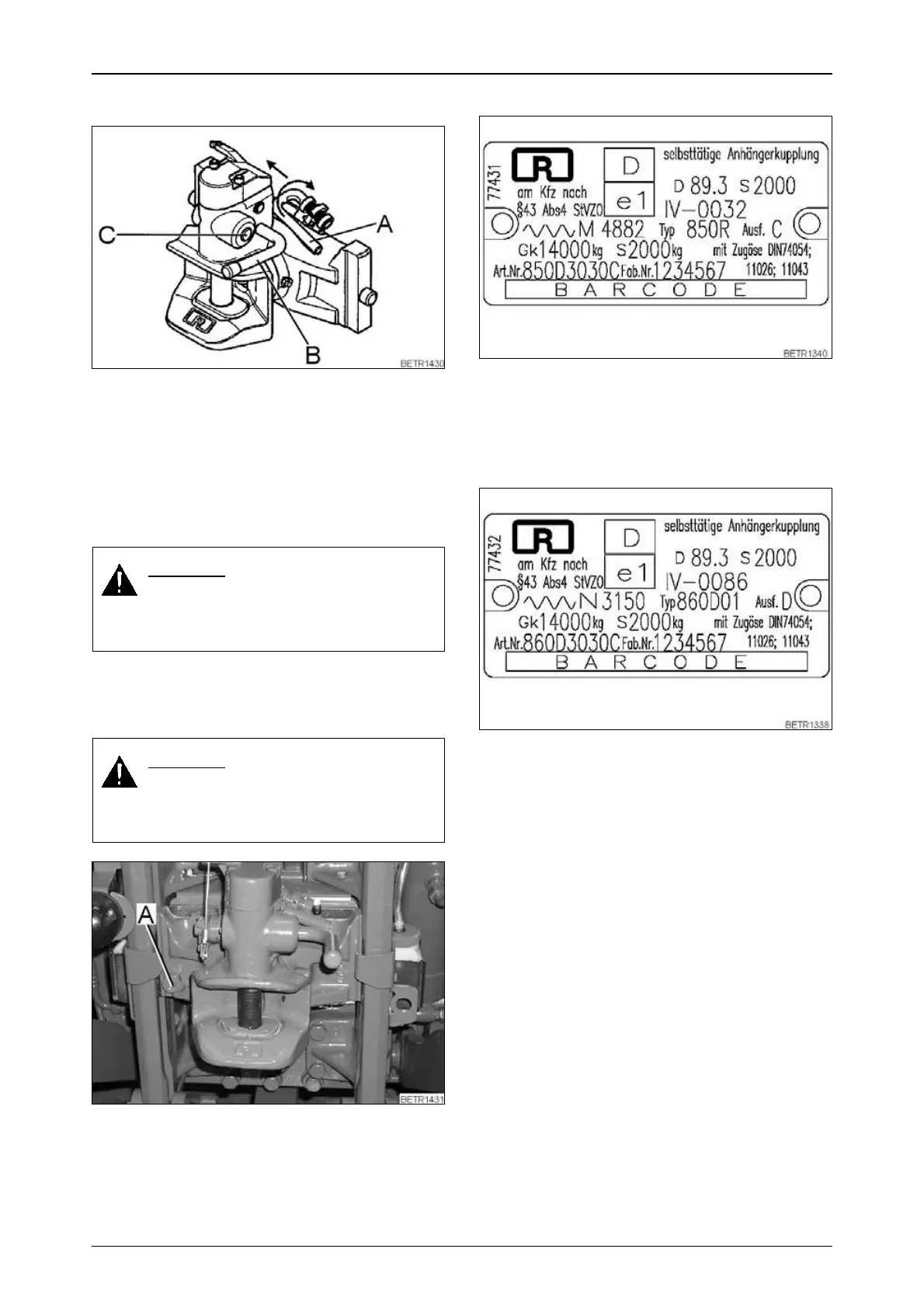

21.4 Automatic trailer coupling
Operation_Pic_number:1
Moving the hitch coupling.
● Turn handle (A) upwards and press to the left.
● Bring trailer hitch to the desired height.
● Hold trailer hitch in floating position to allow
the locking bolt to lock in place; at the same
time turn handle (A) downwards and press to
the right.
Operating the trailer hitch.
● Press handle (B) upwards until it locks.
● Control stud (C).
Operation_Pic_number:1
Detaching the hitch coupling.
● Demount remote control cable.
● Pull pin (A).
● Slide the coupling downward and out of the
guide rails.
DANGER:
In secured position, handle (A)
should only be able to be pressed
approx. 4 mm towards the opening.
DANGER:
Control stud (C) should not protrude
from the control sleeve after
coupling.
Fig.225
Fig.226
Cylindrical pin version
Operation_Pic_number:1
Observe maximum permissible supporting load
and trailer load. (See rating plate.)
Version with crowned bolt
Operation_Pic_number:1
Observe maximum permissible supporting load
and trailer load. (See rating plate.)
Fig.227
Fig.228

FENDT 926 Vario Specifications

General

Engine Power	260 hp
Transmission	Vario continuously variable transmission
Fuel Tank Capacity	500 liters
Weight	10, 500 kg
Engine type	6-cylinder turbocharged
Rated engine speed	2100 rpm
Displacement	7.5 liters
Number of cylinders	6
Maximum speed	50 km/h
Tire Options	Multiple options available
